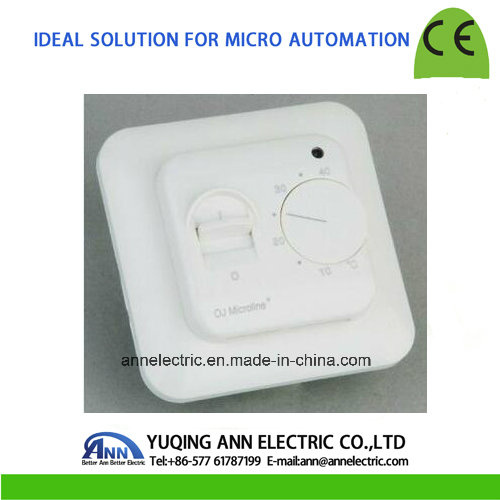

Mechanical Thermostat 6000, Thermostat

Name: Mechanical Thermostat 6000, Thermostat
Brand: all-electronics-online.com
SKU: 792850645
Availability: InStock
Rating: 4.5 (80 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	6000
Range:	10-40

Product Description

Summary

The RTC70.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat
The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

Application

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

Features

LED indicator is light when heating is on
With manual switch and knob for easy operation
On/off control output for heating device
Setback function when connecting with a programmable timer (RTC70.33&RTC70.36)
Temperature limitation function for protecting the floor (RTC70.33&RTC70.36)

Technical Parameters

Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4ºC~45ºC
Limitation scale: 25ºC~50ºC (RTC70.33&RTC70.36)
Setback temperature: 5ºC (RTC70.33&RTC70.36)
Switching differential: ±0.5K
Ambient temperature: -5ºC~50ºC
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m

Selection table

Model No.	Current	Sensor	Temperature limitation function	Setback function	Loading (PCS/Carton)
RTC70.13	3A	Built-in sensor	No	No	100
RTC70.16	16A	Built-in sensor	No	No	100
RTC70.26	16A	Floor sensor	No	No	100
RTC70.33	3A	Built-in & floor sensor (optional)	Yes	Yes	100
RTC70.36	16A	Built-in & floor sensor (recommend)	Yes	Yes	100
