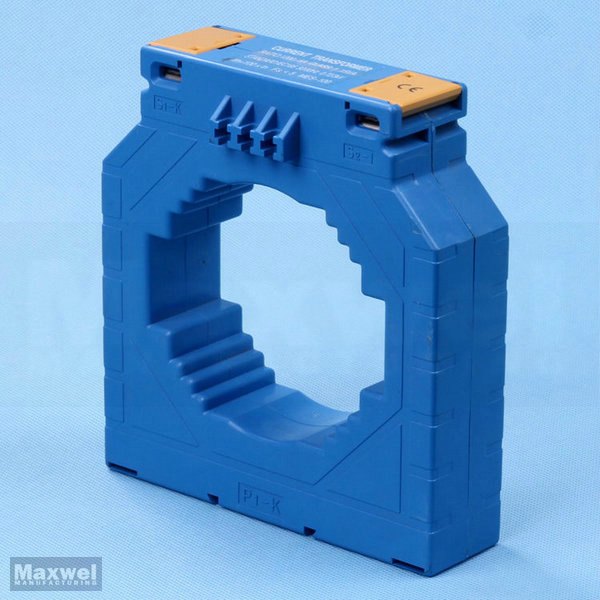

Low Voltage 5A Measuring Current Transformer

Name: Low Voltage 5A Measuring Current Transformer
Brand: all-electronics-online.com
SKU: 704693105
Availability: InStock
Rating: 4.7 (33 reviews)

Price:	US $ 2.5-3.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Mes-62/20b
Class:	0.5/1.0
Colour:	Blue
Capacity:	5A-150A
Standard Certificate:	IEC44-1/Bs7626/VDE0414/Vl94
Phase:	Three
Type:	Current Transformer

Product Description

MES current transformer series:
1. The MES series of current transfomer are convenient for mounting in many ways.
2. The most current transformer need the special mounting and the EMS series used the mounting of DIN typing without a lot of time.
3. The protective cover for the terminal block used the switching device with safety and quick
MES tecnicial specifications:
Primary current: 5A-3000A
Secondary current: 5A/1A
Standard approval: IEC44-1/BS7626/VDE0414
Maximum voltage: 0.72/3kv
Frequency: 50/60Hz
Rated load: 2.5VA/5VA/10VA/15VA
Class: 0.5/1.0
Short-time thermal current: Ith=60*Ih
Rated security coefficient Fs<5

Model	Nominal current ratio	Burden VA
		Class 0.5	Class 1
MES-62/B	5/5	1.5	2.5
MES-62/B	10/5	1.5	2.5
MES-62/B	15/5	1.5	2.5
MES-62/B	20/5	1.5	2.5
MES-62/B	25/5	1.5	2.5
MES-62/B	30/5	1.5	2.5
MES-62/B	40/5	1.5	2.5
MES-62/B	50/5	1.5	2.5
MES-62/B	60/5	1.5	2.5
MES-62/B	75/5	1.5	2.5
MES-62/B	100/5	1.5	2.5
MES-62/B	150/5	1.5	2.5
