Mini Circuit Breaker Manufacturer in China

Name: Mini Circuit Breaker Manufacturer in China
Brand: all-electronics-online.com
SKU: 828866825
Availability: InStock
Rating: 4.4 (132 reviews)

Price:	US $ 0.29-0.56/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDSB1
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Insert
Structure:	MCB
Poles Number:	1
Certification:	ISO9001-2000

Product Description

Mini Circuit Breaker Manufacturer In China

Introduction:

CDSB1 series circuit breaker is used in lighting distribution ststem or motor distribution

system for protecting overload and short-circuit in the system.

The product is novel in structure, light in weight, reliable and excellent in performance.

It has hight breaking capacity, can trip quickly and its installation uses with guide.

Its case and items are adopted with high fire-resistant and shockproof plastics.

Specification

Rated temperature: 40°c

Rated voltage: 240V/415V AC

Rated current(C): 1, 2, 4, 6, 10, 15, 16, 20, 25, 32, 40, 50, 60, 63A

Rated current(D): 1, 2, 4, 6, 10, 15, 16, 20, 25, 32, 40A

Electric endurance not lower than 6000 times

Mechanical endurance lower than 20000 times

Tropical tecs: 2 kinds

Weight(G)	1P	2P	3P	4P
Weight(G)	102	208	308	408

CDSB1-AD
Standard	Rated current (A)	Pole	Voltage (V)	Breaking capacity (A)
BS3871-1 IEC898	1-40	1	240	4000
BS3871-1 IEC898	1-40	2, 3, 4	415	4000
IEC157-1	1-40	1	220/240	6000
		2, 3, 4	220/240	12000
		2, 3, 4	380/415	6000

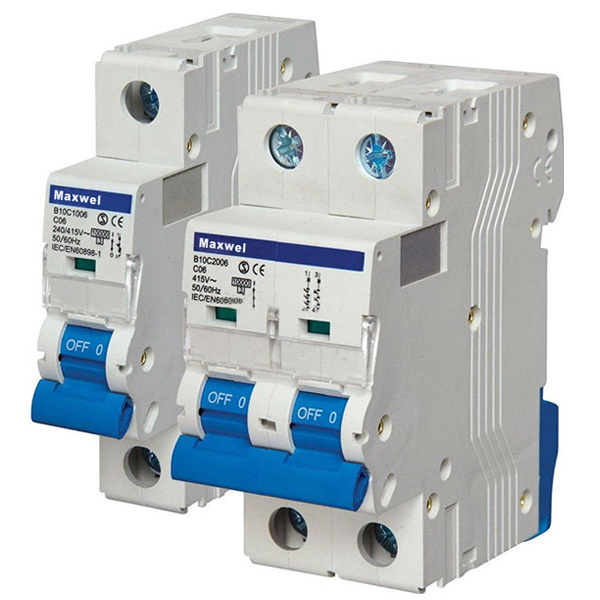

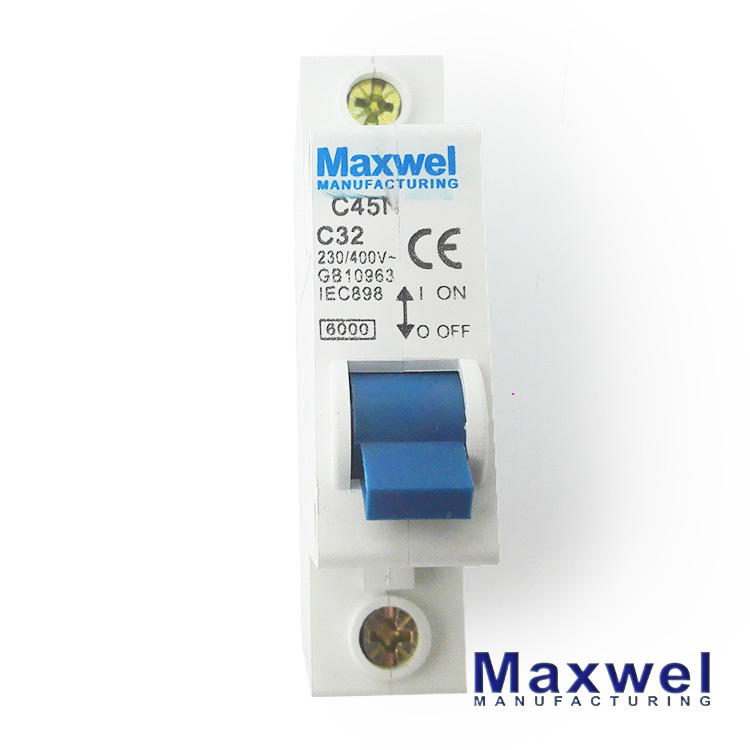

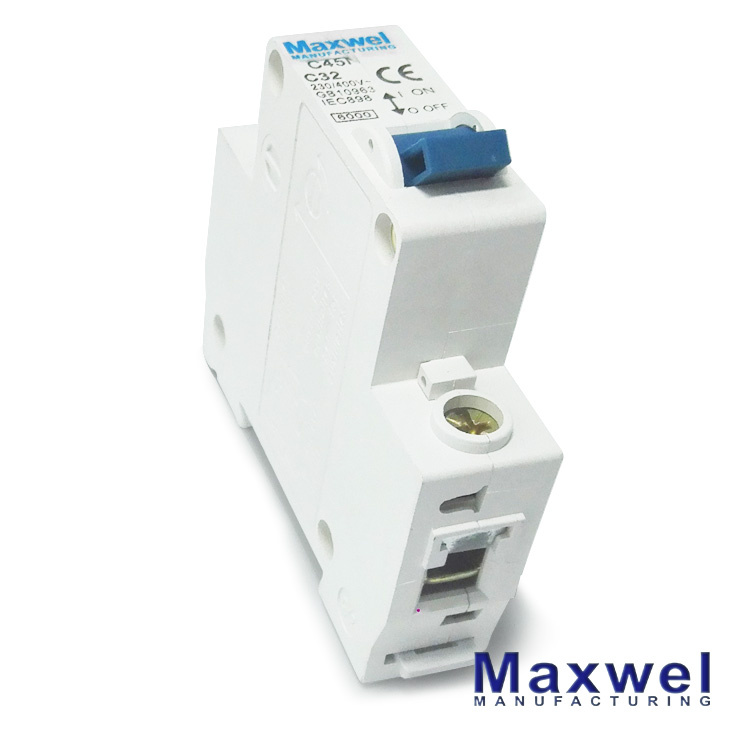

Photos :

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
