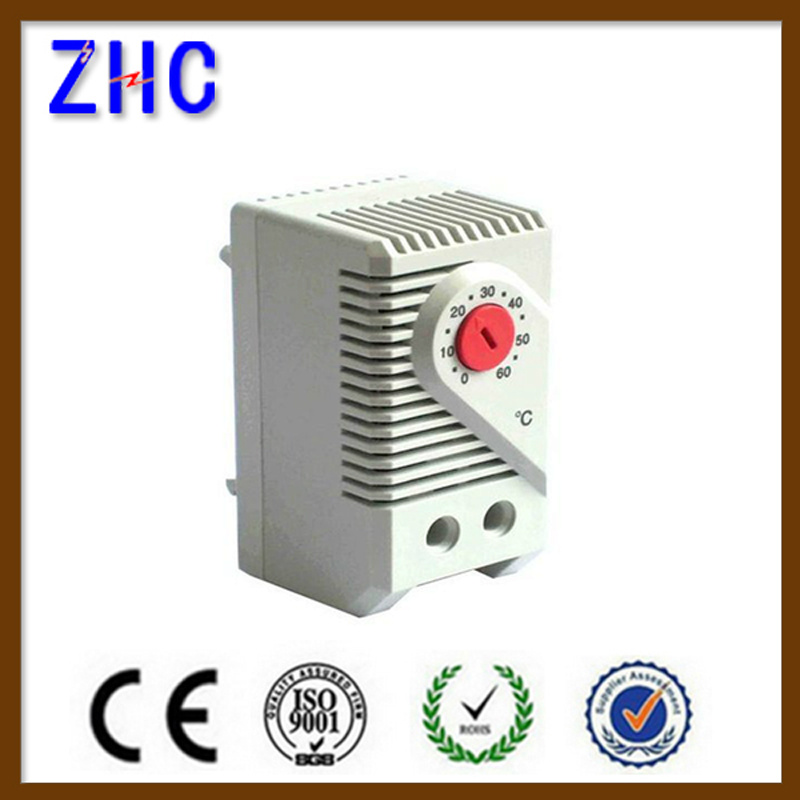

Kto011 High Switching Performance Adjustable Stego Compact Thermostat for Heater

Name: Kto011 High Switching Performance Adjustable Stego Compact Thermostat for Heater
Brand: all-electronics-online.com
SKU: 794241575
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 2-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTO011
Switch Temperature Difference:	7k (± 4k Tolerance)
Permissible Air Velocity:	Thermostatic Bimetal
Contact Type:	Snap-Action Contact
Contact Resistance:	<10mΩ
Service Life:	>100,000 Cycles
EMC:	Acc.to En 55014-1-2,En 61000-3-2,En 61000-3-3
Mounting:	Clip for 35mm DIN Rail, En60715 or for Exit Filter
Casing:	Plastic According to UL94 V-0, Light Grey
Weight:	Approx. 40g
Fitting Position:	Variable

Product Description

KTO011 High switching Performance Adjustable Stego Compact Thermostat for Heater

Usage of product

KTO 011(Red button): Thermostat(normally closed),contact breaker for regulating heaters.
KTS 011(Blue button): Thermostat(normally open), contact maker for regularting of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

Product advantage

1. Large setting range
2. Small size
3. Simple to mount
4. High switching performance

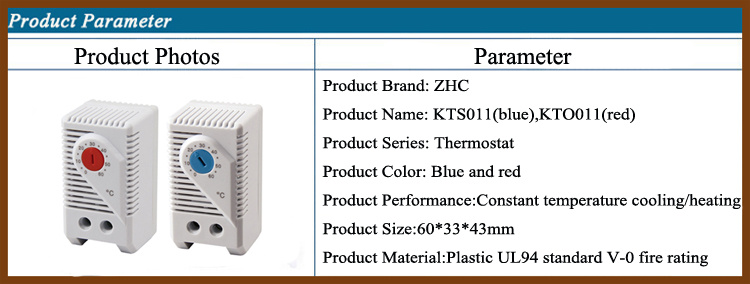

Technical Data

Switch temperature difference	7K (± 4K tolerance)
Permissible air velocity	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	<10mΩ
Service life	>100,000 cycles
Max. Switching capacity	250VAC,10(2)A 120VAC,15(2)A DC 30W
EMC	acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3
Connection	2-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² strande wire(with wire end ferrule)1.5mm²
Mounting	Clip for 35mm DIN rail, EN60715 or for exit filter EF 118 series
Casing	Plastic according to UL94 V-0, light grey
Dimensions	673343mm
Weight	approx.40g
Fitting position	Variable
Operating/Storage temperature	-20 to +80 °C (-4 to +176°F)
Protection type	IP20

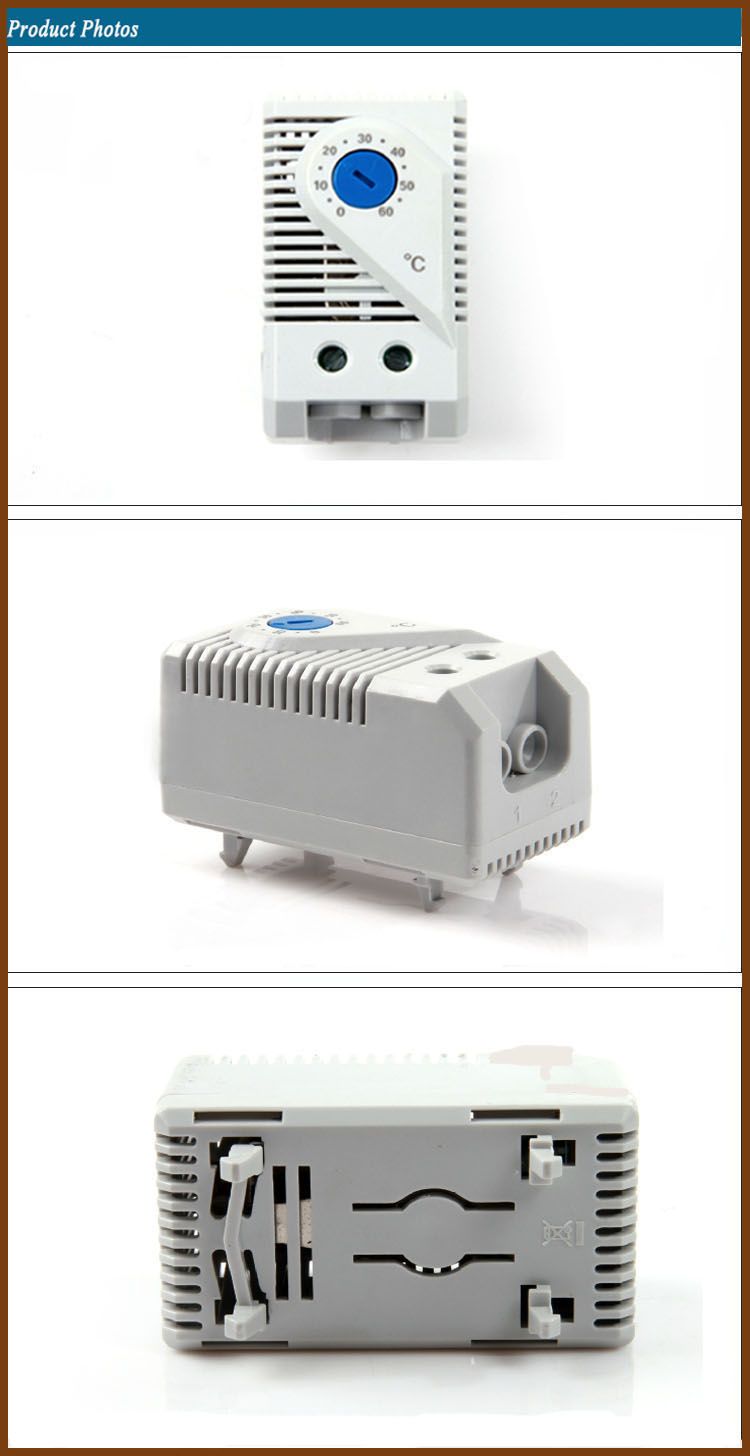

Product show

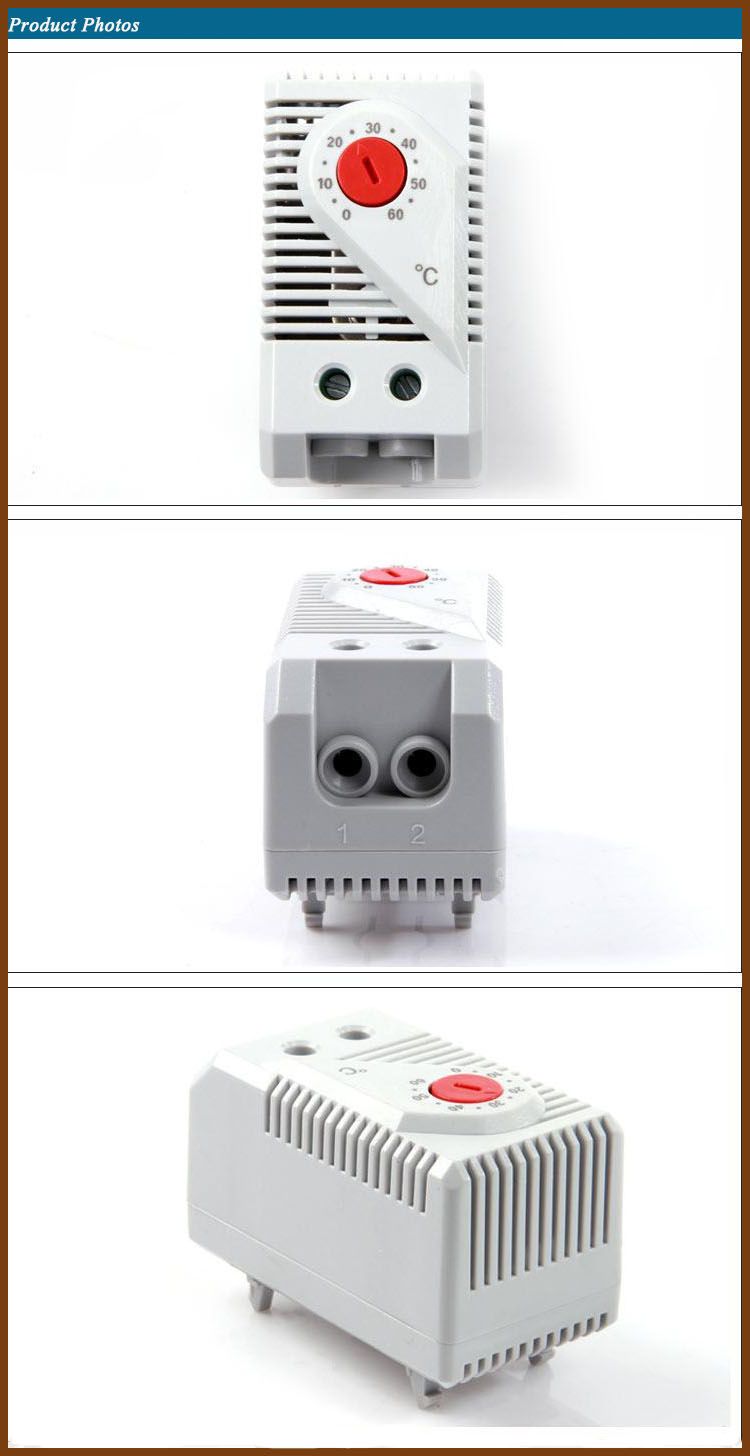

Product details

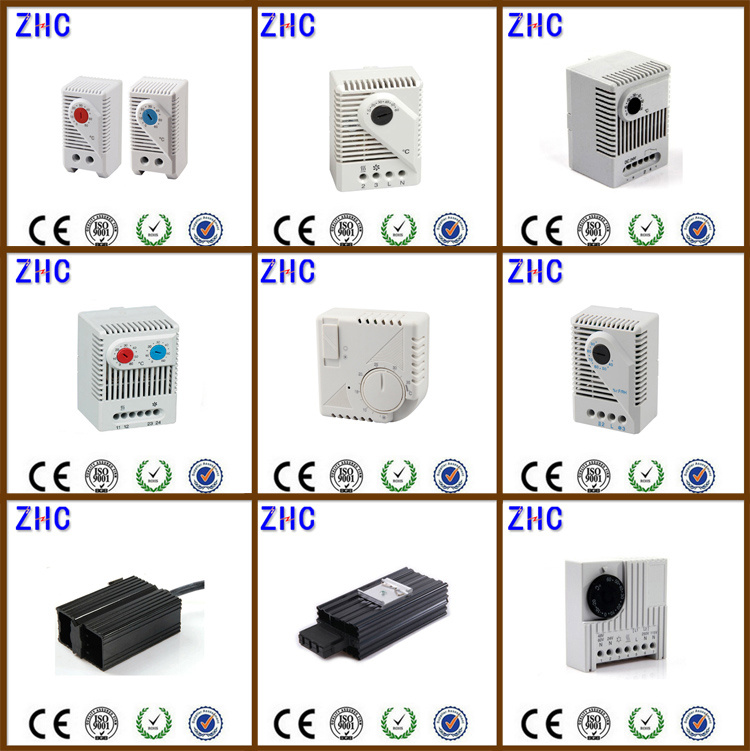

Similar product
