Manufacturer High Performance Sk3110 Cabinet Temperature Controller

Name: Manufacturer High Performance Sk3110 Cabinet Temperature Controller
Brand: all-electronics-online.com
SKU: 794275655
Availability: InStock
Rating: 4.6 (26 reviews)

Price:	US $ 2-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SK3110
Switch Temperature Difference:	1k( ±0.8k Tolerance)
Permissible Air Velocity:	Thermostatic Bimetal
Contact Type:	Snap-Action Contact
Contact Resistance:	<10mΩ
EMC:	Acc.to En 55014-1-2,En 61000-3-2,En 61000-3-3
Mounting:	Clip for 35mm DIN Rail, En60715 or for Exit Filter
Casing:	Plastic According to UL94 V-0, Light Grey
Weight:	Approx. 105g
Fitting Position:	Variable
Work Voltage:	24V~230V

Product Description

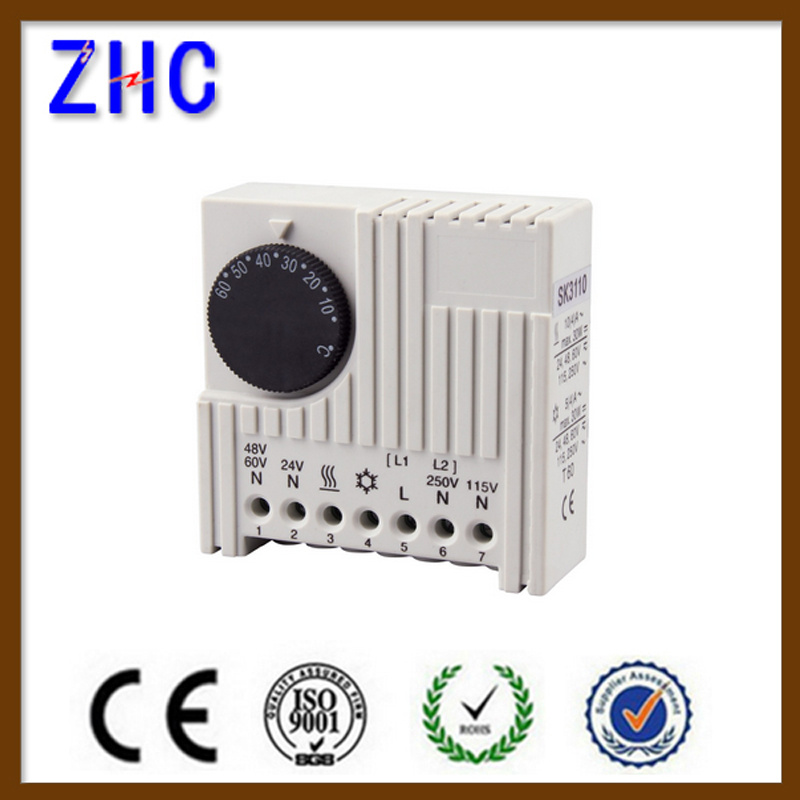

Manufacturer High Performance SK3110 Cabinet Temperature Controller

Usage of product

♦Inner temperature controller for switchgear cabinet
♦Especially used for controlling fan filter, heater and exchanger,also could be monitoring the electric cabinetinner temperature when working as signal arcuser.
♦Voltage scope is wide, any type could be used from 24V to 230V
♦Time-saving connection, terminal block could be installed with screw from outside
♦Easy installation, could be installed to 35mm DIN rail vertically or horizontally. According to EN50022, it could be clipped to NS/35-ES cabinet profile with its accessory adapter.

Technical Data

Switch discrepancy	1K( ±0.8K tolerance)
Sensor element	Thermostatic bimetal
Contact type	Snap-action Contact
Service life	>100,000 cycles
Work voltage	24V~230V
Dimensions	707033.5mm
Weight	approx.105g
Fitting position	Variable
Operating/Storage temperature	-20 to +80 °C (-4 to +176°F)/-45 to 80°C(-49 to +176°F)

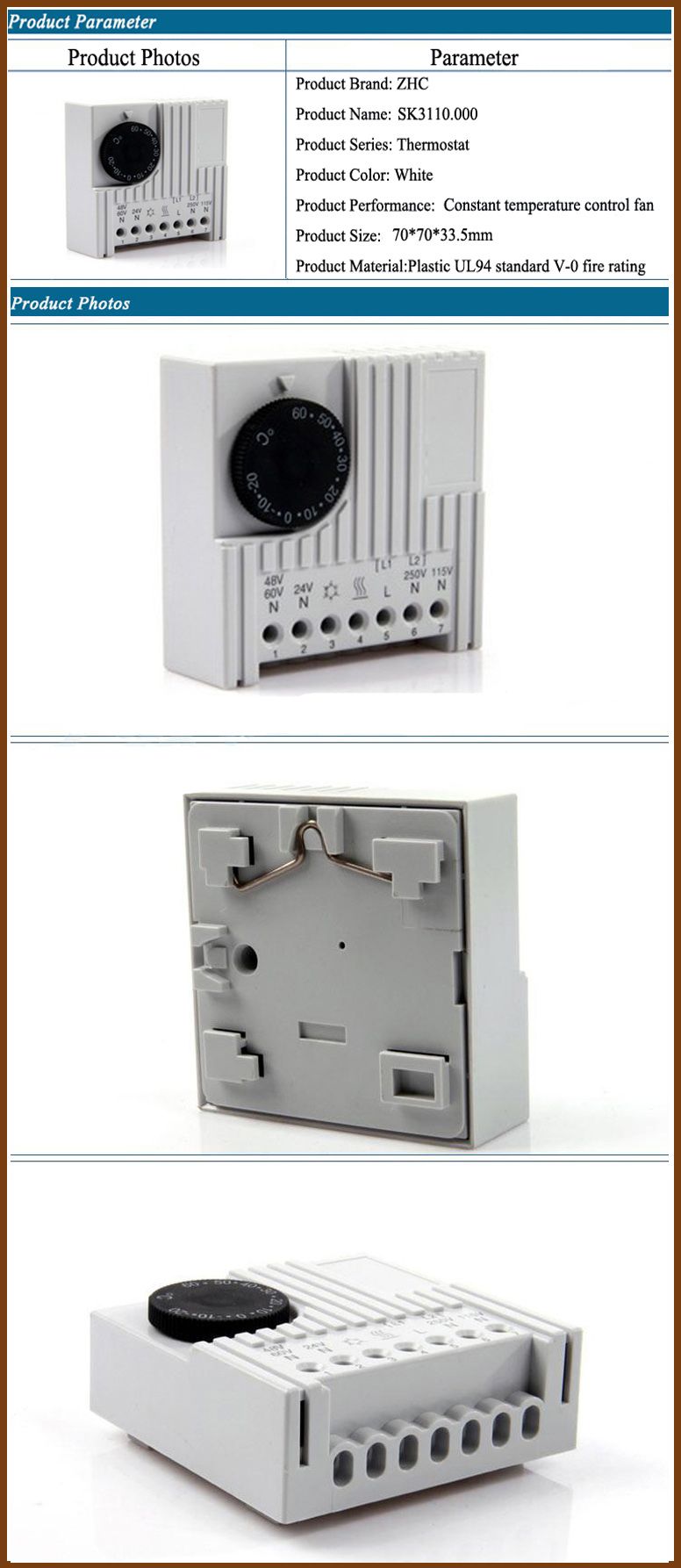

Product show

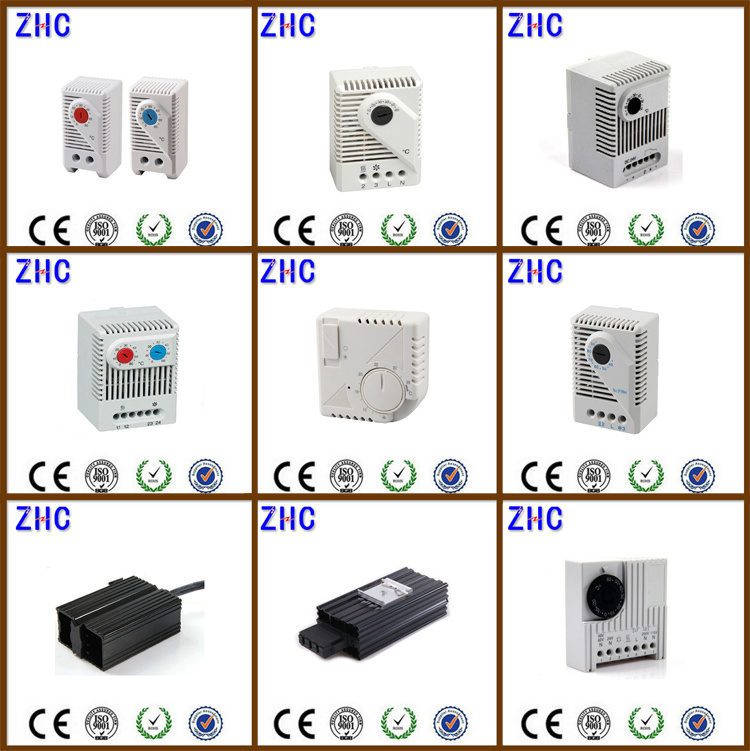

Similar product
