| Prod Model: |
GWTS3000T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type1: |
Gwts3000t Wireless Transmitter |
| Humidity: |
0~95%, Non-Condensate |
| Communication Protocol: |
Modbus-RTU |
| Max Transmitting Power: |
+10dB |
| Transfer Current: |
<40mA |
| Transfer Distance: |
5m~50m(2.4G);300m(433MHz) |
| Frequency Range: |
2.4G or 433m |
| Auxiliary Supply Range: |
AC:85V~265V or DC:100V~360V |
| Auxiliary Supply Consumption: |
≤2va |
| Insulating Strength: |
Output. Input/Hull/Power Supply:2kv Acrms |
Product Description
Tianjin Grewin Technology Co.,ltd, who always pay great attention to its business philosophy "Quality and Honesty First". Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc . windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc. We have passed ISO9001,CE,SGS approval and IEC report and developed good cooperative relationship with valued customers around product quality and value-added service along with the fast efficient solution.Grewin has won a lot of customer's praise.

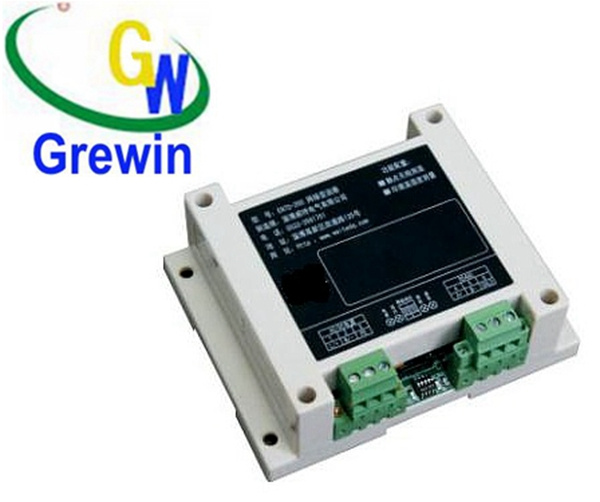

Wireless Collecting & Transmitting Device
Name: GWTS3000T Transmitter
Certification:
We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,We guarantee quality is the first.
Product description:
Support Dain installation
Temperature data collect and transmit
RS485 networking with computer
Local audio and flash alarm
Local LED indication of the overheat point
2.4GHz or 433MHz
Foundation:
Function introduction:
1. High receiving sensitivity, longer transfer distance
2. Local temperature and humidity test
3. MODBUS communication, reliable
4. Contact with PC directly and transfer data to the monitoring platform or contact with our display device
Spcification:
| ITEMS | DETAILS |
| Frequency range | 2.4G or 433M |
| Transfer distance | 5m~50m(2.4g);300m(433mHz) |
| Transfer current | <40mA |
| Max transmitting power | +10DB |
| Temp/test | Humidity | -40~+123ºC |
| Accuracy | ±0.5ºC |
| Communication | Port | RS485 |
| Protocol | ModBUS-RTU |
| Baud rate | 2400/4800/9600/19200bps,even parity, odd parity and non parity setting |
| Auxiliary supply | Range | AC:85V~265V or DC:100V~360V |
| Consumption | ≤2VA |
| Environment | Work temp. | -20ºC~55ºC |
| Storage temp. | -40ºC~85ºC |
| Humidity | 0~95%,non-condensate |
| Safety | Insulating strength | Output. input/hull/power supply:2KV acrms,1 minute |
