| Prod Model: |
GWTS3000CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type1: |
Gwts3000CT Wireless Transmitter |
| Humidity: |
0~95%, Non-Condensate |
| Communication Protocol: |
RS 485: Modbus-RTU |
| Max Transmitting Power: |
+10dB |
| Transfer Current: |
<40mA |
| Transfer Distance: |
300m(433MHz) |
| Frequency Range: |
433m, Support Max.300 Snesors |
| Usage1: |
Local Audio and Flash Alarm |
| Dimension: |
240X170X90mm |
| Weight: |
1.5kg |
Product Description
Tianjin Grewin Technology Co.,ltd, who always pay great attention to its business philosophy "Quality and Honesty First". Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc . windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc. We have passed ISO9001,CE,SGS approval and IEC report and developed good cooperative relationship with valued customers around product quality and value-added service along with the fast efficient solution.Grewin has won a lot of customer's praise.

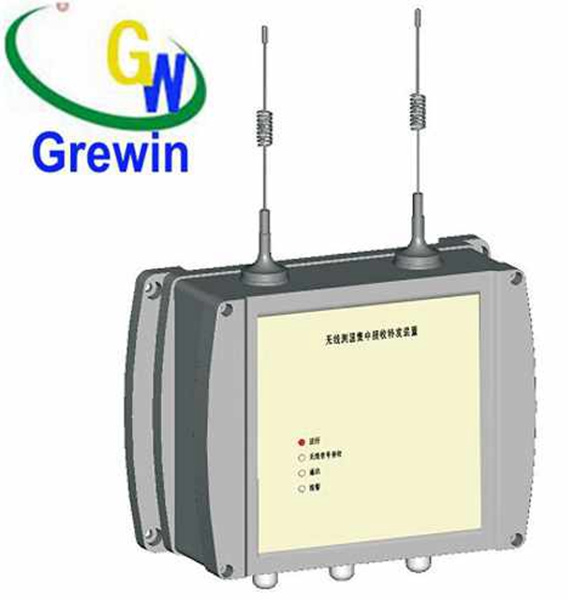

Wireless Collecting & Transmitting Device
Name: GWTS3000CT Transmitter
Certification:
We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,We guarantee quality is the first.
Product description:
Support hanging installation
Temperature data collect and transmit
RS485 networking or 433MHz wireless communication
Local audio and flash alarm
Max.300 sensors
240X170X90MM,1.5KG
Foundation:
Function introduction:
1. High receiving sensitivity, longer transfer distance
2. Local temperature test
3. MODBUS communication or 433MHz communication
4. Max. monitor 300 sensors
Specification:
| ITEMS | DETAILS |
| Frequency range | 433M,support max.300 snesors |
| Transfer distance | 300m(433mHz) |
| Transfer current | <40mA |
| Max transmitting power | +10DB |
| Temp/test | Range | -40~+200 ºC |
| Accuracy | ± 1ºC |
| Communication | Type | RS485 or 433MHz |
| Protocol | RS 485: ModBUS-RTU |
| Baud rate | RS485:2400/4800/9600/19200bps,even parity, odd parity and non parity setting |
| Auxiliary supply | Range | AC:85V~265V or DC:100V~360V |
| Consumption | ≤2VA |
| Environment | Work temp. | -20ºC~55ºC |
| Storage temp. | -40ºC~85ºC |
| Humidity | 0~95%,non-condensate |
| Safety | Insulating strength | Output. input/hull/power supply:2KV acrms,1 minute |
RS 485 Networking
Wireless Networking
