Current Transformer Meter (GW0312-2000T) , Mini Transformer for 110V 220V 380V

Name: Current Transformer Meter (GW0312-2000T) , Mini Transformer for 110V 220V 380V
Brand: all-electronics-online.com
SKU: 676795852
Availability: InStock
Rating: 4.7 (135 reviews)

Price:	US $ 5.85-6.98/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW0312-2000T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Current transformer mainly used in all kinds of electricity meter such as energy meter, water meter or electricity meter. We have current transformers both with and without DC immune. We can offer through-hole type, PCB type, Busbar type and flying wir type in mounting. Product with high accruacy up to 0.5, small phase error etc. We can also design and manufacture all kinds of current transformer according strictly to customer's special requirements.

Description:
1), All enclosed design, good performance of mechanical and insulation.
2), Pin design, easy to installate in PCB.
3), This series of CTs have small size that can be used as separate.
4), Linear output with high accuracy current.
5), Smalll size, light weight, standard hole easy to installation, Normal specifications and parameters as follow.

FEATURES:
Current transformers for electronic watthour meters with DC-tolerance are designed for applications where AC current signals or
half wave rectified DC current signals must be
transformed accurately into a lower current signal
appropriate for micro-processor based circuits.
A new TA model can be designed and manufactured to meet the specific
design challenges of the client's specific application. The following models
are only a small sampling of the many different products which have been
and are currently being manufactured.
Application:
Electronic watthour meters according to IEC 62053 -21, -23 must
have a tolerance to DC current
SPECIFICATIONS:
Case Material: PBT Resin UL flame retardant rating 94-V0
Construction: Epoxy Encapsulated housing
Isolation Voltage: 2500 Vrms for 1 minute
Insulation Resistance: 1000 M Ohms @ 500 Vdc
Surge Withstand: 5000V(1.2/50μsstandard shock wave)
Operating Temperature:-25 to +55ºC,-40 to +85ºC
Optional Frequency: 50 to 400 Hz
RoHS compliant
CE compliant
Accuracy Class: Compliant IEC 60044-1, Class 0.1, 0.2

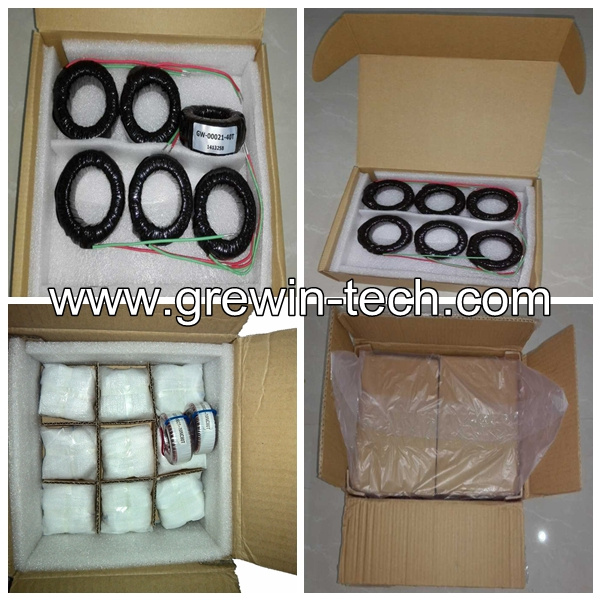

(package)

Victor Dong

Tianjin Grewin Technology Co.,Ltd.
Web: http://grewin-tech.en.made-in-china.com or www.grewin-tech.com
TEL:86-22-84943756
FAX:86-22-85909471

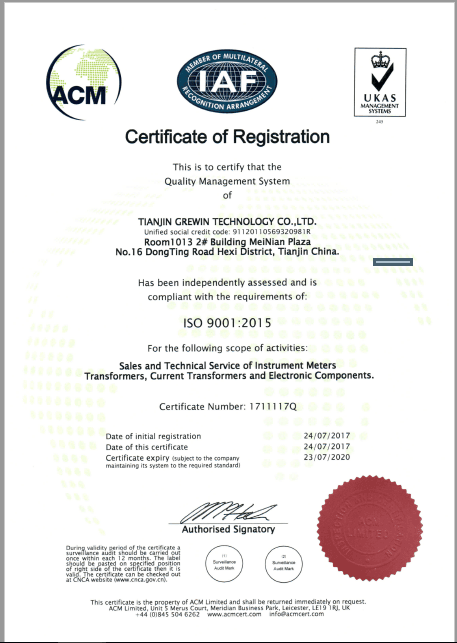

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
