Mini Toroidal Welding Machine China with IEC
Price: |
US $ 5.12-5.3/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
500/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
2.5va-30va transformer |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dual 110V UL Approval: |
Toroidal Transformer |
CE Toroidal Transformer For Lighting: |
Minature 6va 10va 15va 30va Transformer |
Transformer For Medical Equipment: |
Low Rise High Efficiency |
Small Size And Light Weight: |
95% Efficiency |
Power Factor: 0.9 To 0.98: |
Used New Energy Areas |
Copper, Aluminum: |
Toroidal Transformer |
Encapsulated By Iron Shell: |
CE, RoHS, SGS, UL and ISO9001 |
Mounting Type: |
Horizontal Sunk, Side Type, and Bridge Installatio |
Good Shielding Performance: |
Low Power Loss |
Type: |
Toroidal Transformer |
Application: |
Audio |
Phase: |
Single |
Coil: |
Core-type Transformer |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Two-winding Transformer |
Usage: |
Encapsulated. PCB Mounting Transformer |
Frequency Characteristics: |
50-60Hz |
Brand: |
Grewin |
Product Description
2.5VA-30VA PCB Mounting isolation toroidal Transformer Grewin
Place of Origin: Tianjin, China (Mainland)
Brand Name: Grewin 18va 20va 25va 30va PCB mounting toroidal Transformer
Model Number: 6VA 8va10va 12va15va encapsulated Isolation toroidal Transformer
Usage: Lighting
Phase: Single
Coil Structure: Toroidal
Coil Number: Autotransformer
Encapsulated transformer power range:: 6VA 8va10va 12va15va 18va 20va 25va 30va Toroidal Transformer
usage: LED lighting ,power,electronic,audio,instrument,rectifier,reactor
input: 115v+115v, 230vac 220v 110v
Feature 1:: Nice Appearance, Small Size, Moisture Proof & Mould Prevention.
Feature 2:: Low Power Loss, Low Temperature-rise, Energy-saving
Features 3:: with a single winding, the corresponding max. volume can be reached;
output: 18v+18v,36v ,12v 24v
frequency: 50HZ/60HZ
Pin mounting type: PCB Waterproof toroidal power isolation transformer
Encapsulated by iron shell: CE, RoHS, SGS, CE and ISO9001![](/proimages/44f3j00OTzaoFUngspY/mini-toroidal-welding-machine-china-with-iec.jpg)

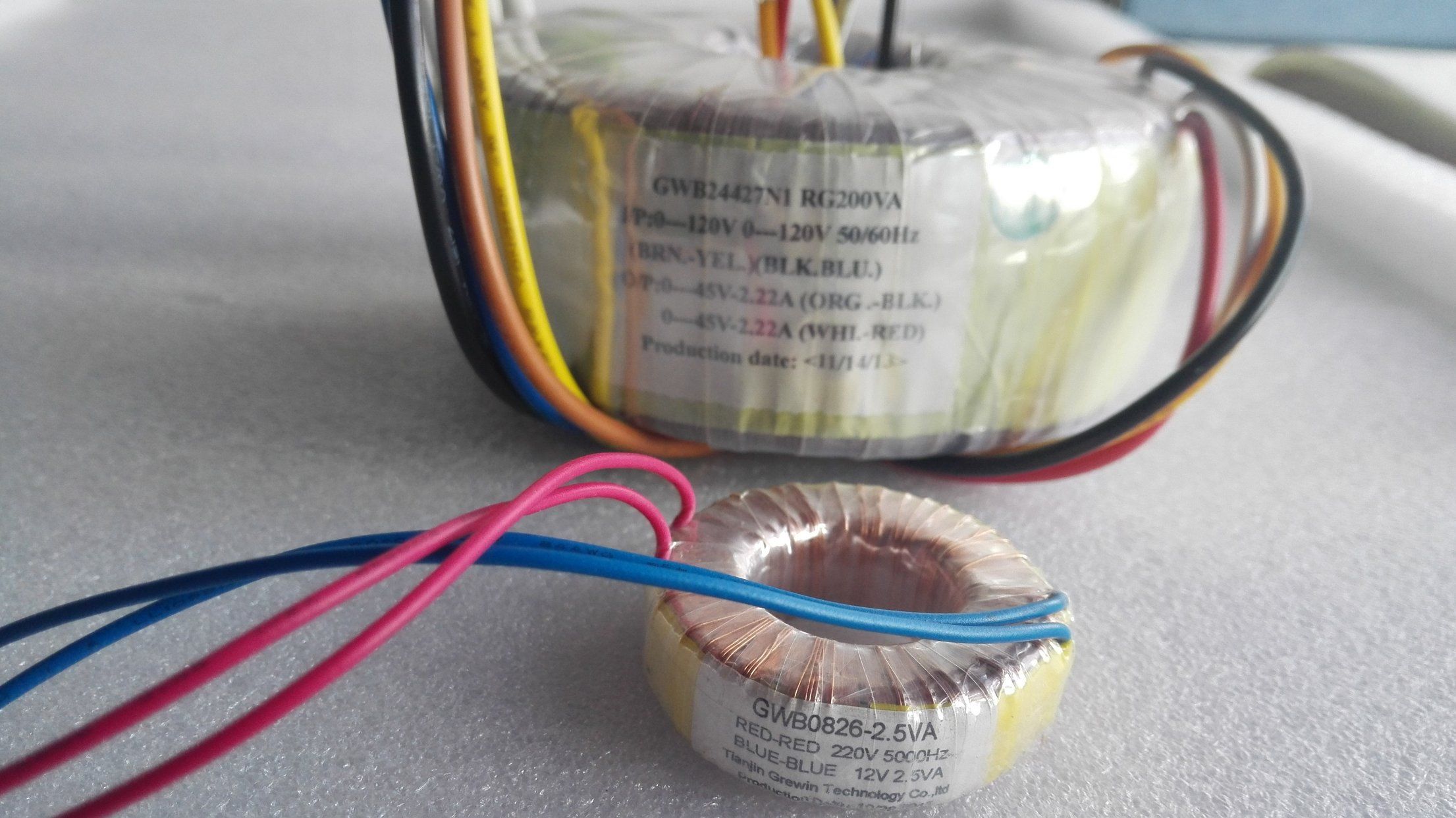

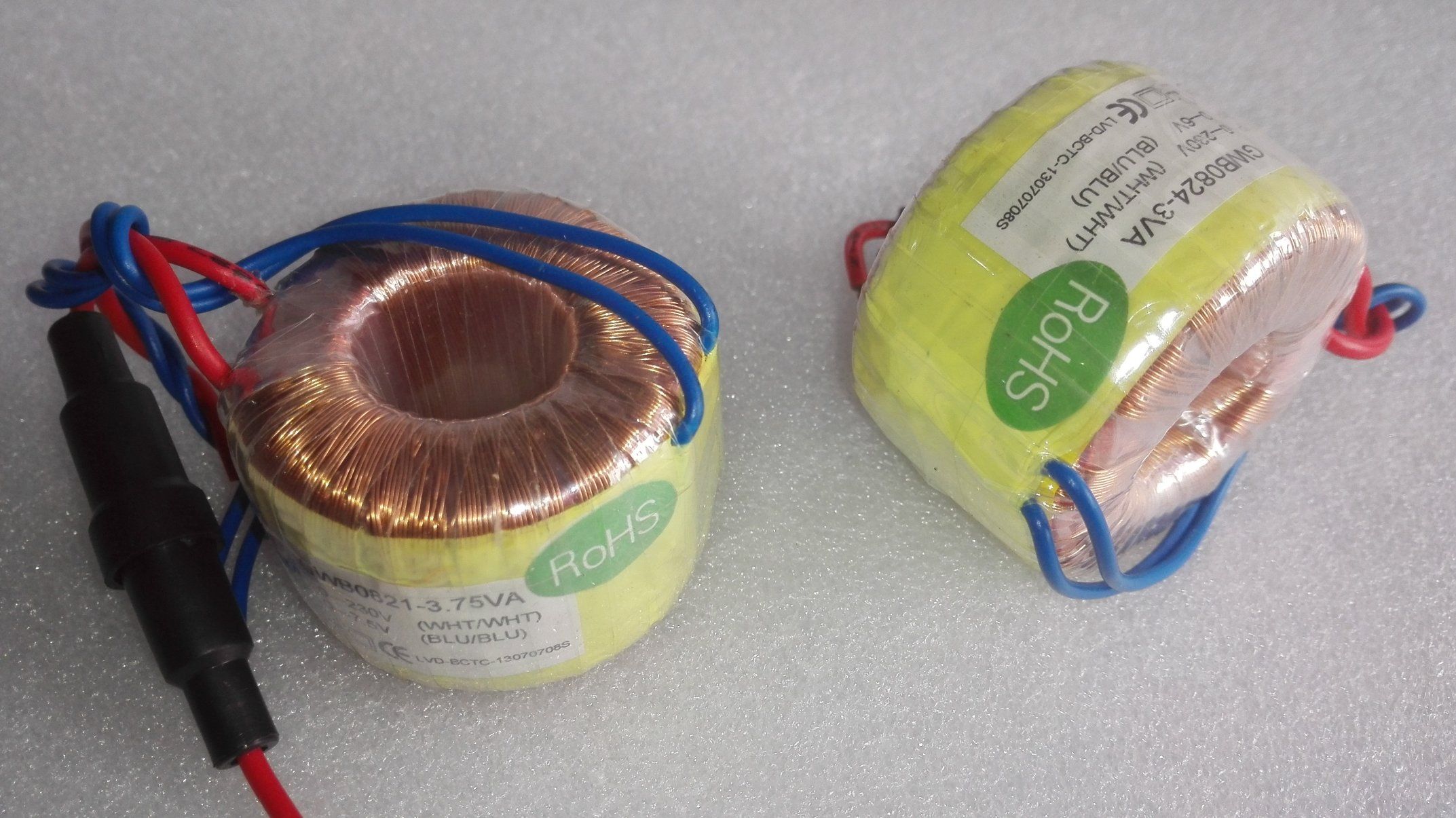

2.5VA-15VA Minature Toroidal Transformer: ![](/proimages/44f3j00NEzaqJRFHKgG/mini-toroidal-welding-machine-china-with-iec.jpg)
![](/proimages/44f3j00HQutTeDduKzE/mini-toroidal-welding-machine-china-with-iec.jpg)

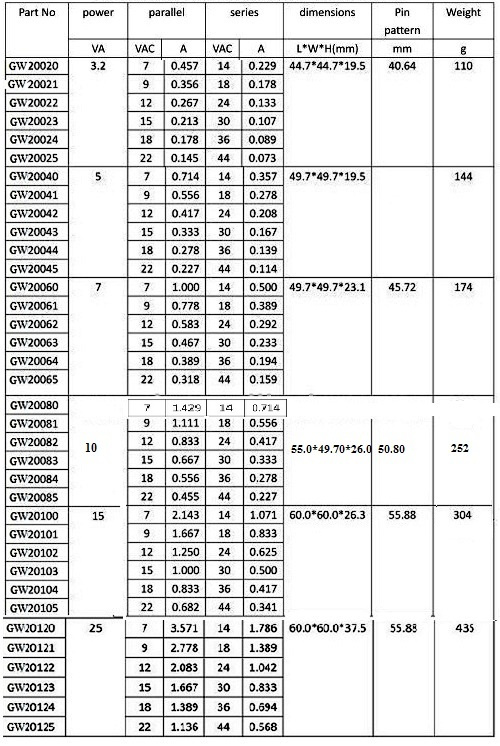

GW-ISeries: 2.5VA-25VA Dimension

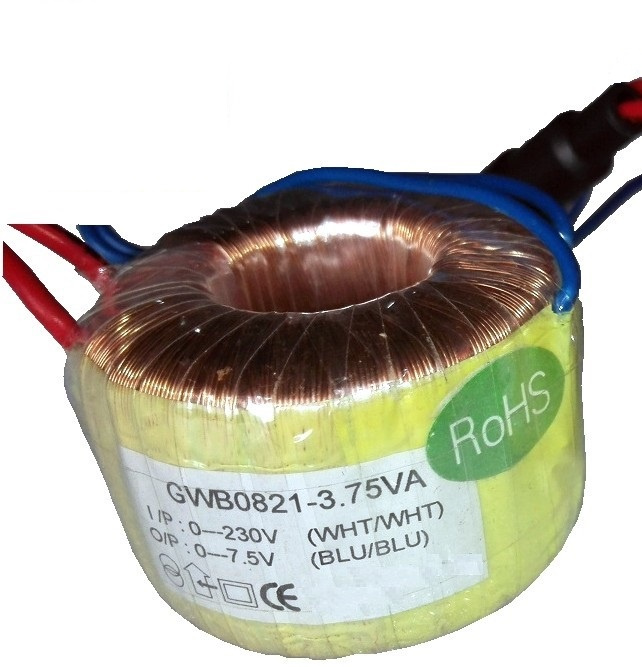

High Quality Toroidal Transformers![](/proimages/44f3j00uTDQRSoamCrH/mini-toroidal-welding-machine-china-with-iec.jpg)
Model No. | Dimension a×b×c (±0.5mm) | Pins Distribution (mm) (±0.5mm) | array pitch | Volume (VA) |
E (8 Pins) | F (8 Pins) | G (±0.5mm) | |
GW-1-D | 66×66×40 | 5 | 9 | 59 | 25-30 |
GW-2-D | 66×66×37 | 5 | 9 | 59 | 20-23 |
GW-3-D | 62×62×40 | 5 | 9 | 55 | 18-22 |
GW-4-D | 62×62×37 | 5 | 9 | 55 | 15-18 |
GW-5-D | 62×62×35 | 5 | 9 | 55 | 12-15 |
GW-6-D | 62×62×32 | 5 | 9 | 55 | 10-13 |
GW-7-D | 58×58×35 | 5 | 9 | 51 | 10-12 |
GW-8-D | 58×58×32 | 5 | 9 | 51 | 8-10 |
GW-9-D | 58×58×29 | 5 | 9 | 51 | 6-8 |
1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance
Main parameters:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:8VA-30VA PCB Toroidal Transformer
1. Installation:
PCB Mounting Type with PINS
2.Application:
Pcb encapsulated toroial transformer Application:
* garden light
Contact Information: Contact Information: Aliceli Tianjin Grewin Technology Co.,Ltd. Website:www.grewin-tech.com |

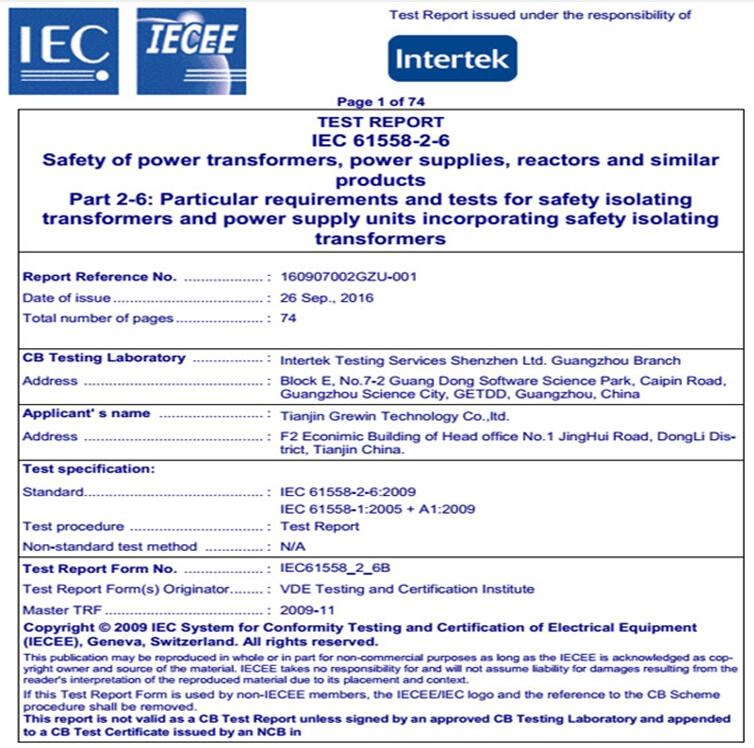

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
