Clamp on CT 1-200A Current Transformer for Multi-Function Watt-Hour Meter

Name: Clamp on CT 1-200A Current Transformer for Multi-Function Watt-Hour Meter
Brand: all-electronics-online.com
SKU: 704423422
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	US $ 90/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWTA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design Advantage:	Clamp on Current Transformer
Accuracy:	0.5 / 1.0 / 3.0
Split Core Transformer Input:	5-630A
Split Core Transformer Output:	0.333 1.5 Output
Window Size:	Check Specification Below
Rated Frequency:	50-400kHz
Dielectric Strength:	1000mohms @ 500 VDC
Operating Temp:	-25 C~+75 C
Internal Structure:	Epoxy
Export Markets:	Global
Application:	Lighting
Type:	Current Transformer
Phase:	Single or Three
Operation Condition:	Electronic, Instrument, Lighting

Product Description

600 V max current550 A clamp on current transformer with output voltage 1mV

The GREWIN CTC series of clamp on current transformer are designed for fast and easy installation.The clamp on core design permits non-contactcurrent measurements through magnetic field induction without disconnecting cables or busbar circuits for CT installation. This method permits a safer, easier and portable current measurement.

Feature:

Flexible and light weights,exquisite appearance

Easy and quick installation in tight spaces

Excellent linearity

Maximum measuring current up to 550 A

Application :

Power quality monitoring

Smart logger

Distributed measurement systerms

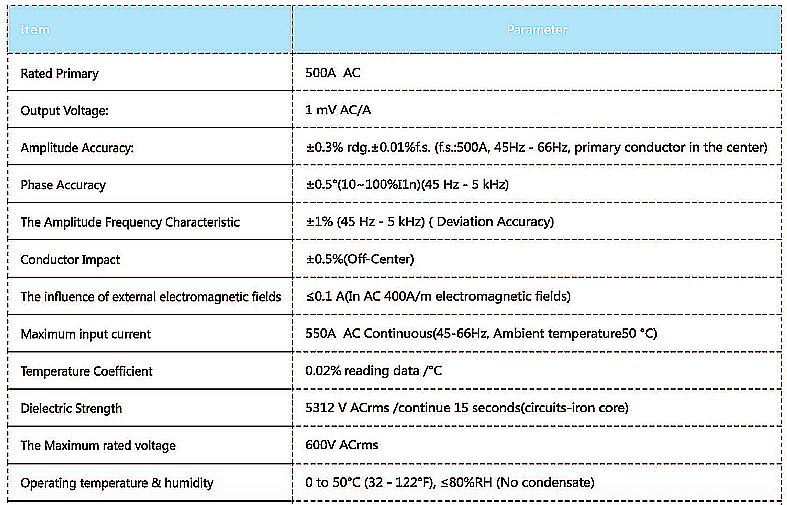

Parameter of 600 V max current550 A clamp on current transformer with output voltage 1mV GWCT0346

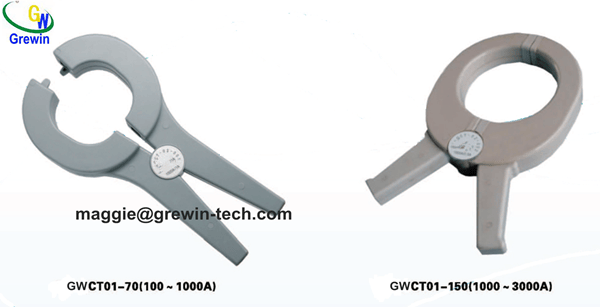

Another model of clamp on current transformer GWCT01

Feature:

Delicate ,exquisite ,light

Directly encircle busbar ,No need to cut busbar

Adopted high permeability core ,high accuracy ,good linearity,high ability of prevent interference

Typical Application :

Electric energy field metering

Mearure together with other kinds of instruments .

WHY CHOOSE US?

Quality and honest first!

A. Flexible service for diffierent transformers with high efficiency performance.

B. Over 40 years experience of transformer designing and producing.

C. 100% test of every single product we produce from incoming material checking.

D. UL, CE, ROHS, ISO9001:2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We deliver the quality you expect at consistently competitive prices

G. Transformer quality lifetime:10 Years.

H. Specialty Sales service:5 -10 Years
