Clamp Current Sensor

Name: Clamp Current Sensor
Brand: all-electronics-online.com
SKU: 749497255
Availability: InStock
Rating: 5 (57 reviews)

Price:	US $ 500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RTL-080
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution: 0.01mA:	Measurement Range: 0.00mA-2000A

Product Description

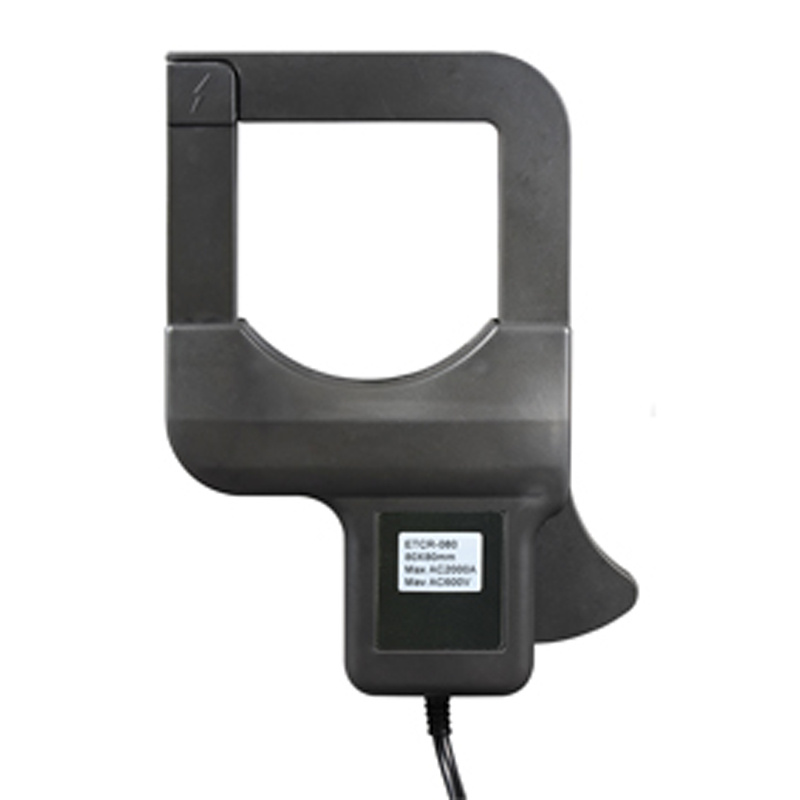

RTL-080 Large Caliber High Accuracy Clamp Current Sensor is well designed and manufactured for measurement of AC leakage current, large current, phase, frequency, power and electric energy. Its large caliber 80mm×80mm can clamp electric cable of φ80mm, or 96mm×4mm flat cable and steel earth wires.

The clamp is made of special alloy, adopt the latest CT and magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement. It can be connected with high accuracy digital multimeter, data recorder or electric power quality analyzer, widely used to measure AC leakage current, current, power and electric energy with high accuracy and small phase error, in the field of electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc.

Technical Specifications
Model No.	RTL-080
Product Name	Large Caliber High Accuracy Clamp Current Sensor
Function	Measure AC leakage current, current, there-phase, voltage
Test Mode	Clamp CT, integral mode
Clamp Size	80mmX80mm
Measurement Range	0.00mA~2000.00A
Resolution	0.01mA
Accuracy	0.5% (23ºC±3ºC, below 70%RH)
Current Ratio	About 1A/1mA
Size	Length 205mm × Width 145mm × Height 30mm
Line Voltage	Below AC 600V line measurement
Leadwire Length	2m
Weight	110g
Working Temperature & Humidity	-20ºC~50ºC, below 80%rh
Storage Temperature & Humidity	-10ºC~60ºC, below 70%rh
Insulation strength	AC 2kV/rms(between core and shell)
Safety Specifications	IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT III(600V)
Accessories	Current Sensor: 1 pc
