| Prod Model: |
RTL-080A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: 0.1mA: |
Measurement Range: 0.00mA-2500A |
Product Description

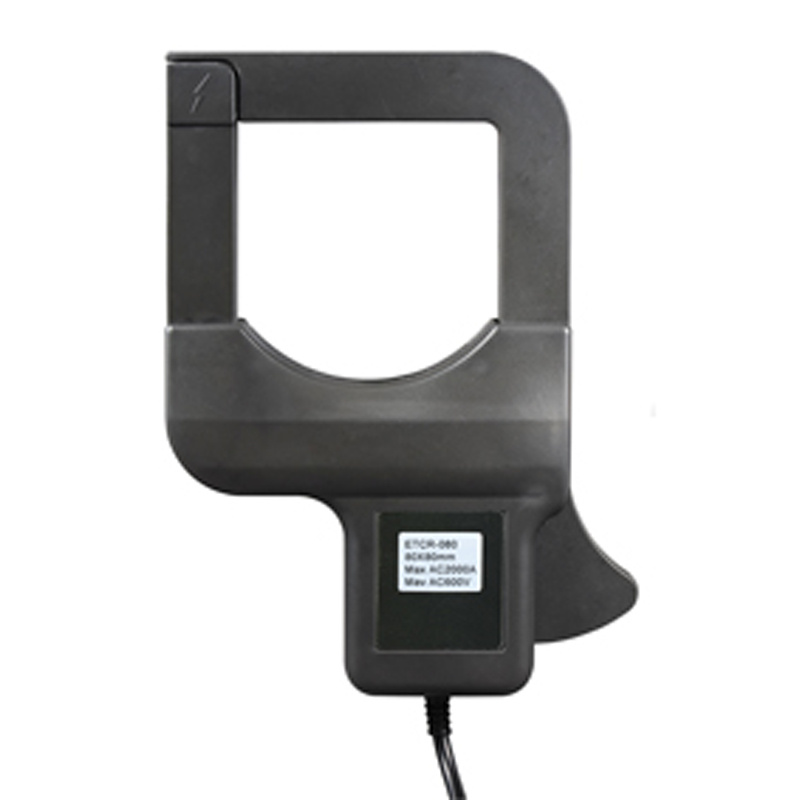

RTL-080A Large Caliber High Accuracy Clamp Current Sensor is well designed and manufactured for measurement of AC leakage current, large current, phase, frequency, power and electric energy. Its large caliber 80mm×80mm can clamp electric cable of φ80mm, or 96mm×4mm flat cable and steel earth wires.
The clamp is made of special alloy, adopt the latest CT and magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement. It can be connected with high accuracy digital multimeter, data recorder or electric power quality analyzer, widely used to measure AC leakage current, current, power and electric energy with high accuracy and small phase error, in the field of electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc.
Technical Specifications |
| Model No. | RTL-080A |
| Product Name | Large Caliber High Accuracy Clamp Current Sensor |
| Function | Measurement of AC current, higher harmonic current, phase, electric energy, power and power factor |
| Test Mode | Clamp CT |
| Clamp Size | 80mm×80mm |
| Measurement Range | AC 0.0A-2500A |
| Resolution | AC 0.1A |
| Accuracy | ±1.0%FS (50Hz/60Hz; 23ºC±2ºC, below 70%RH, keep the measured wire be in the center of the clamp) |
| Coils Turn | 1000: 1 (2000:1 and 3000:1 is optional) |
| Phase Error | ≤3°(50Hz/60Hz; 23ºC±2ºC) |
| Reference Load | RL: 0-2500A≤0.3Ω |
| Output Mode | Current induction output |
| Output Interface | 2 bare wires or standard multi-meter pen plug |
| Lead length | 2m |
| Wire Position | Keep the measured wire be in the center of the clamp |
| Current Frequency | 45Hz-60Hz (Frequency of the measured current) |
| 10Hz-100kHz |
| Circuit Voltage | Below 600V AC |
| Size | Length 194mm × Width 145mm × Height 40mm |
| Weight | 780g |
| Working Temperature and Humidity | -20ºC-50ºC, below 80%rh |
| Storage Temperature and Humidity | -10ºC-60ºC, below 70%rh |
| Insulation strength | AC3700V/rms(between core and shell) |
| Safety Specifications | IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT III(600V) |
| Accessories | Current Sensor: 1 pc |
