1A 5A L Split Core Current Transformer for Monitoring Meter

Name: 1A 5A L Split Core Current Transformer for Monitoring Meter
Brand: all-electronics-online.com
SKU: 690447332
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWSCT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Rating:	0.6va
Rated Loadd:	1, 2.5, 5.0, 10, 30va
Rated Secondary:	Ma or 0.333-3.53VAC
RoHS Compliant: CE-Approved:	Rated Primary Current: 100-300AAC
Frequency: 50/60Hz:	Operating Voltage:600VAC
Isolated Voltage: 2,500V AC:	Coil Structure: Toroidal
Accuracy Class:: 0.5, 1.0, 3.0 Class Co:	Low Cost: Water Proof
Shell Material:PBT Or ABS:	Leads 0.8foot(240mm), UL 1015, Twisted Pair, 0.34
Secondary Ratios Available: 5.0,1.0AAC:	Phase: Single
Application:	Audio
Phase:	Single
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Coil:	Grewin Current Transformer
Brand:	Grewin Current Transformer

Product Description

can pack all the finished transformers into export standard cartons with strong pallets so that can make sure the goods reach safety to your destination place.

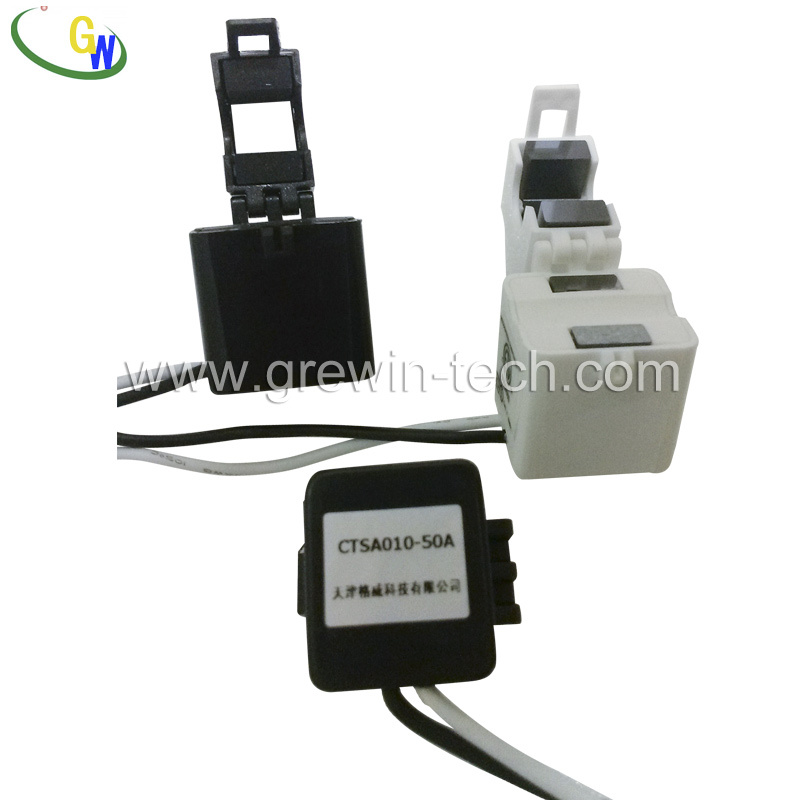

Grewin's Split core current Transformer:

Key Specifications/Special Features:

A. Power rating: 0.6VA
Frequency range: 50/60Hz
Rated system voltage: 380V AC
Isolated voltage: 2,500V AC
Operating temperature range: -40 to +85°C
Storage temperature range: -45 to +90°C
Terminals: PC board or wire assembly
Conforms to IEC 60044-1
UL-/CE-approved and fully RoHS-compliant
Applications: current measurements and power meter

B. Split Core Current Transformers \mA or 0.333-3.53V Rated Secondary Output
1.Applications:
Current, power, energy, monitoring devices;
Relay protection devices;
Power Factor Correction devices.

2. Specifications:
Rated Primary current: 100-5000Aac;
Rated Secondary current:5 or 1Aac;
Rated load: 1, 2.5, 5.0, 10, 30VA;
Accuracy: 0.5, 1.0, 3.0 Class;

3.Rated Short-time thermal current (Ith):20I
Rated Dynamic current (Idyn):2.5Ith;
Case Material: UL flame retardant rating 94-V0;
Highest Voltage for Equipment Um (rms):720 Vac;
Rated Power-Frequency Withstand Voltage;
(rms):3,000 Vac
Frequency Range:50/60Hz;
Operating Temperature: -15 to degree;
Standard:IEC 60044-1 .

Contact Info:

Alice

Tianjin Grewin Technology Co.,Ltd.
Web: www.grewin-tech.com
Tel: 86-22-84943756 FAX:86-22-85909471
Mobile: 86-13072088960

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
