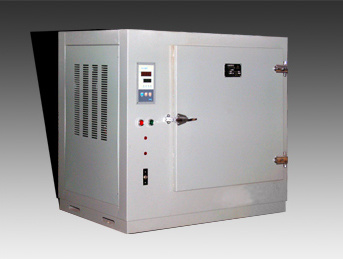

101A Series Electric Heating and Drying Oven

Name: 101A Series Electric Heating and Drying Oven
Brand: all-electronics-online.com
SKU: 726891832
Availability: InStock
Rating: 5 (150 reviews)

Price:	US $ 1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	101A
Temperature Regulating Range:	50-300 Degree Centigrade

Product Description

Product description
For baking, drying, heat treating and other purposes of heating of matter (But it is not suitable for drying flammable matter. Otherwise, it may cause explosion).

Main Technical Data

Item	Unit	Model
Item	Unit	101A-1 101A-1B	101A-2 101A-2B	101A-3 101A-3B	101A-4 101A-4B
Rated Power	kW	3+1%	3.6+1%	6.6+1%	8+1%
Voltage	V	220	220	380/220	380/220
Frequency	Hz	50	50	50	50
Phase	N	Single	Single	3	3
Temperature uniformity	C	±7.5	±7.5	±7.5	±7.5
Temperature regulating range	C	50-300	50-300	50-300	50-300
Temperature fluctuation	C	≤±1	≤±1	≤±1	≤±1
Temperature uniformity	C	≤±7.5	≤±7.5	≤±7.5	≤±7.5
Dimensions of working chamber (D×W×H)	mm	350×450×450	450×550×550	500×600×750	800×800×1000
Overall dimensions (D×W×H)	mm	570×810×765	670×910×870	720×960×1125	1080×1240×1420
Gross weight	kg	100	145	170	385
