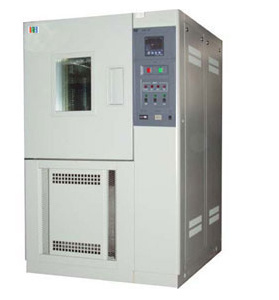

Model Dhs Series Constant Temperature and Humidity Chambers

Name: Model Dhs Series Constant Temperature and Humidity Chambers
Brand: all-electronics-online.com
SKU: 726937832
Availability: InStock
Rating: 5 (109 reviews)

Price:	US $ 4000-15000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DHS Series
Temperature Range:	0ºC~150ºC
Humidity Range:	30~98%R.H

Product Description

Chamber Structure
The inner bladder of the chamber is made of imported SUS304 stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.
A micro-computer temperature and humidity controller is adopted with precise and reliable temperature and humidity. (Japanese OYO meter)
A large observation window is set on the chamber door.
A test hole with 25mm, or 50mm or 100mm diameter is set on the left of the chamber body.
A high-quality fixable PU moving wheel is adopted on the bottom of the test chamber.

Standards Applied
GB/T2423.1-2001, GB/T2423.2-2001, GB/T2423.3-1993

Specs & Technical Parameters

Model (CM)	DHS-100	DHS-225	DHS-500	DHS-800	DHS-010
Workroom Dimensions	454550	506075	708090	80100100	100100100
Exterior Dimensions	85102177	105102200	132132217	147152231.5	167152231.5
Power	4.0(KW)	4.5 (KW)	7.5(KW)	10.5(KW)	11.0(KW)
Temperature Range	0ºC~150ºC
Humidity Range	30~98%R.H
Fluctuation/Evenness	≤±0.5ºC/≤±2ºC
Humidity Deviation	+2, -3% R.H
Temperature Rise Speed	1.0~3.0ºC/min
Temperature Fall Speed	0.7~1.0ºC/min
