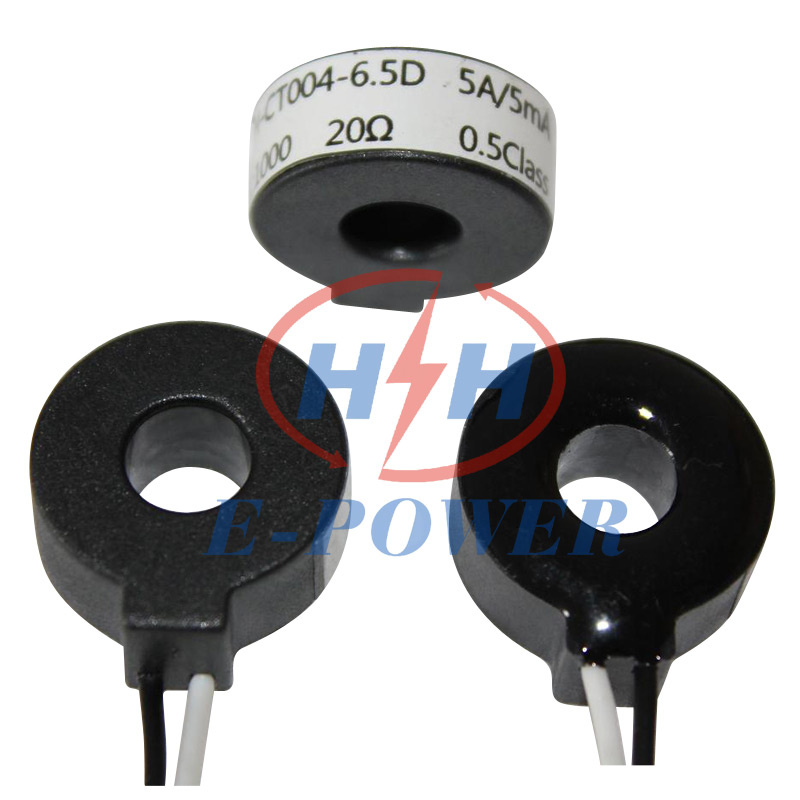

Zero Current Transformer with 5A/5mA

Name: Zero Current Transformer with 5A/5mA
Brand: all-electronics-online.com
SKU: 701070332
Availability: InStock
Rating: 4.4 (69 reviews)

Price:	US $ 0.45-0.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	H-CT004-6.5D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	H-CT004-6.5D
Diameter:	6.5mm
Max Current:	5A
Secondary Current:	5mA
Isolation Voltage:	3000V
Accuracy:	0.5class
Coil Turn:	1000:1
Phase:	Single or Three
Color:	Black
Manufacturer:	Jiaxing Haihan Electron Co.,Ltd
Type:	Current Transformer
Application:	Instrument

Product Description

1, Specification notes

1). Outlook face using Flame retardant ABS with black/red color.

2), Output method: Wire with length 150cm.

3), Dimension(Unit: Mm).

4), Mainly using for Ground fault detection or Residual current detection

2, Mainly using for:

1). Clamp-on Current Transformer,

2). Clip on current transformer,

3). Current transformer clamp,

4). Current transformer

3, Quality guarantee!

A, Competive price

B, Perfect service.

If you want to know more information for this model: H-CT004B, Please feel free to contact with us.

Thank you very much for your attention.

Item	Spec	Item	Spec
Frequency	50HZ-60HZ	Coil Ratio	1000: 1
Primary Current	0-18A	Accuracy	0.5Class
Secondary Current	0-5mA	Line insulation	1000V
Setting Pinot	1000mA	Insulation Voltage	≥ 3000VAc
Rate Error	0.2%	Insulation strength	500MΩ /500V/min
Main Circuit current	120A	Coil Resistance	Real tested ± 0.5%
Load Resistance	20Ω	Work Temp	-20º C ~ +80º C
