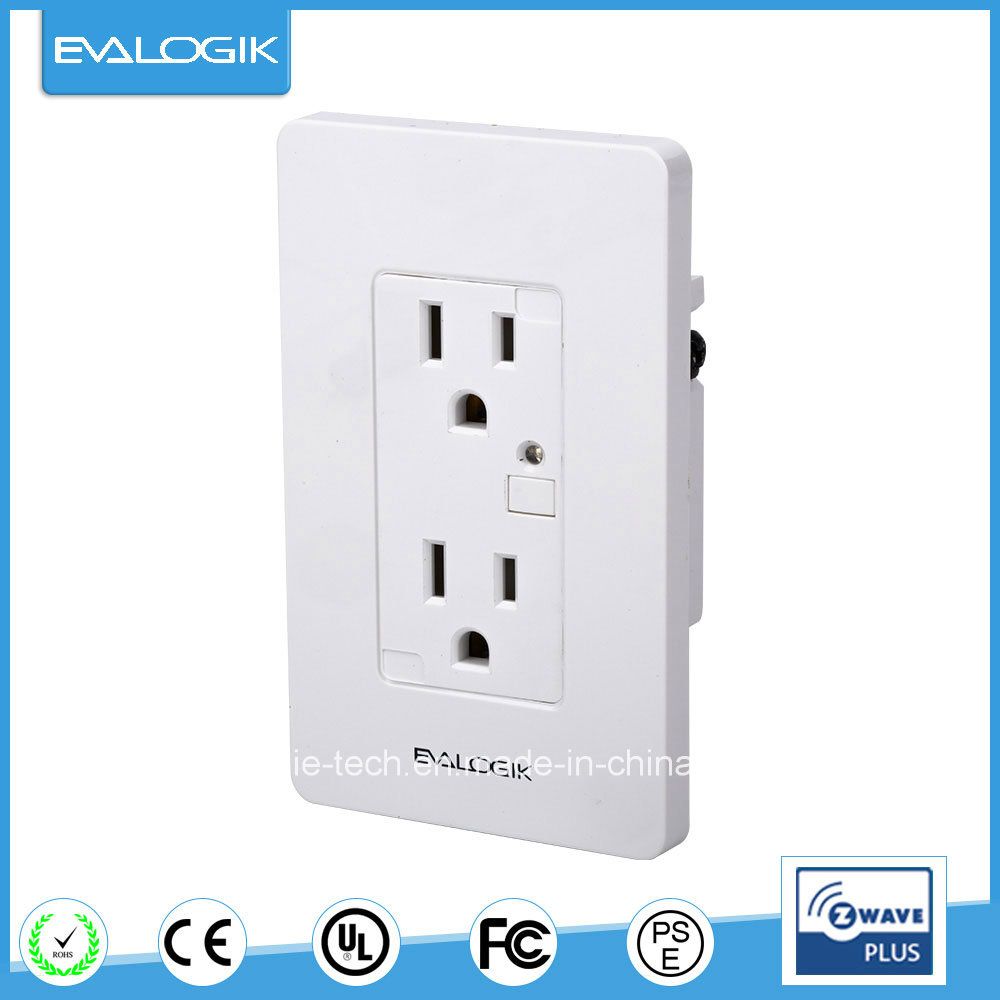

Z-Wave Wall Mounted Outlet with Power Meter (ZWP32)

Prod Model:	ZWP32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maxload:	600W (Incandescent), 1800W(Resistive)
Range:	Min 30m Line of Sight
Size:	115(L)*70(W)*44(H)mm
Metering:	Electrical Power Load in W / Electrical
Frequency:	908.42MHz
Grounding:	Self Grounding
Type:	Without Switch
Application:	Residential/General-Purpose
IP Rating:	IP20
Certification:	UL
Brand:	EVA Logik
Rated Current:	15AMP
Function:	Wall Mounted Outlet

Product Description

ZWP32 Wall Mounted Outlet built-in Power meter


Technical data Installation

Introduction

This ZWP32 Duplex Receptacle is designed to work with other Z-WAVE enabled devices.
Z-WAVE nodes of other types can be Included in the system and will also act as repeaters.
 This is useful when the device would otherwise be out of the radio range of the wireless controller.
The top outlet is active and the bottom is controlled through Z-wave or through the manual button on the outlet as is typical for a Z-wave outlet.

Technical data


Load	Incandescent: 600W maximum, 120 VAC. Resistive: 15 amps (1800W) maximum, 120 VAC
Motor	1/2 H.P. maximum, 120 VAC
Range	Min 30m line of sight
Dimensions	115(L)*70(W)*44(H)mm
Net weight	130g
Frequency	- 908.42 MHz

Metering

electrical power load in W / electrical power work in kWh


Installation

1. Before installation ensure that the voltage supply is disconnected.
2. Connect ZWP32 module as shown on above diagram.
3. Connect the device in accordance with the wiring diagram presented in Wiring diagram. Switch on 120V of the mains voltage.
4. For "Add" in a network: Put the Z-wave interface  controller into "Add" mode, and following its instruction to add the ZWP32 to your controller. To get in the "Add" mode, the distance between ZWP32 module and controller is suggested to be in one meter. Quickly pressing the learn switch of ZWP32 three times for 1 second at least & release to be included.
5. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZWP32 from your controller. Press the learn switch of ZWP32 three times for 1 second at least & release to be excluded.

Safety and maintenance instruction
-       Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
-       Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
-       Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
-       Keep all parts away from young children's reach.
---You can send e-mail to us.We are sure to reply you in 24 hours.You can also talk with us throught trade manager.If we are not online,you can leave us a message.We will reply you asap.Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
-       Avoid dropping or shocks, this can damage the electronic boards.
-       Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
-      Wireless system are subject to interference from cordless phones, microwaves, and other wireless devices during installation and operation.

Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.

NOTE
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.

Warranty 1 year
