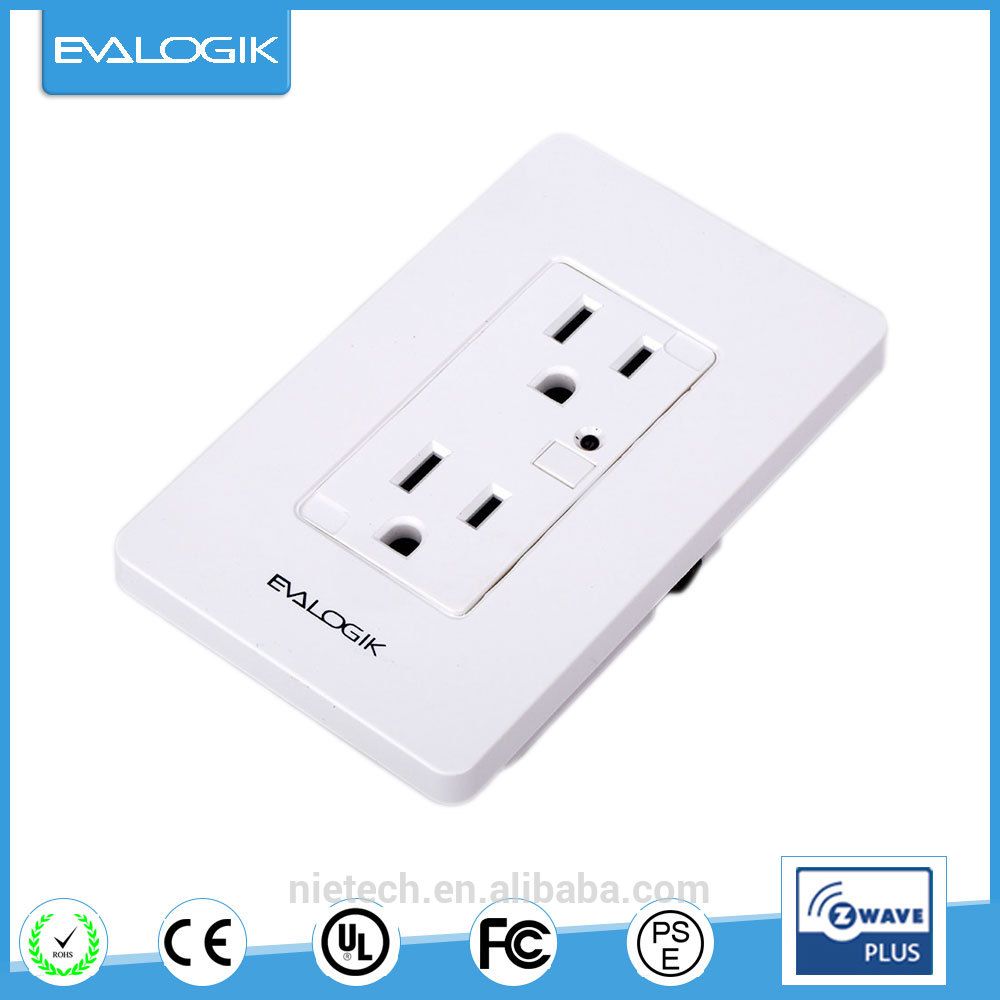

Z-Wave Plus Smart Wireless Wall Socket, Built-in Power Meter
Price: |
US $ 18-49/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
ZWP32 |
Maxload: |
600W (Incandescent), 1800W(Resistive) |
Range: |
Min 30m Line of Sight |
Net Weight: |
130g |
Frequency: |
908.42MHz |
Metering: |
Electrical Power Load in W / Electrical |
Grounding: |
Self Grounding |
Type: |
Without Switch |
Application: |
Residential/General-Purpose |
IP Rating: |
IP20 |
Certification: |
SGS, UL, FCC |
Rated Current: |
15AMP |
Product Description

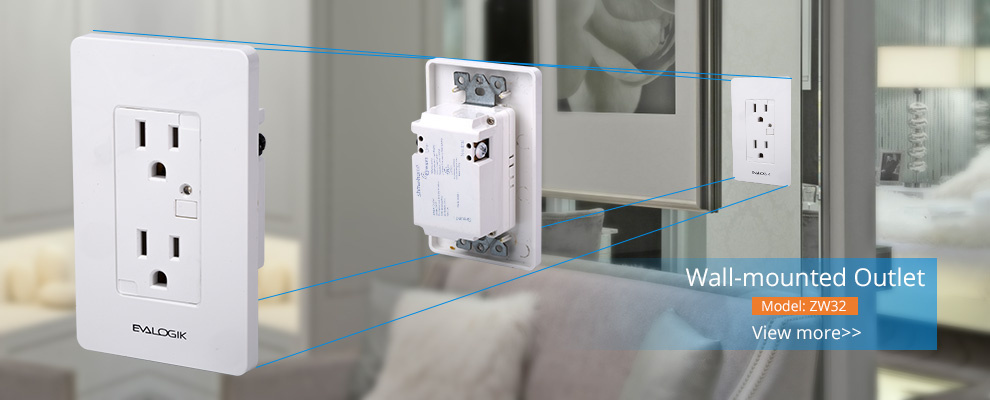

ZWP32 Wall Mounted Outlet Built-in Power Meter
Introduction
This ZWP32 Duplex Receptacle is designed to work with other Z-WAVE enabled devices.
Z-WAVE nodes of other types can be Included in the system and will also act as repeaters.
This is useful when the device would otherwise be out of the radio range of the wireless controller.
The top outlet is active and the bottom is controlled through Z-wave or through the manual button on the outlet as is typical for a Z-wave outlet.
Technical data Load | Incandescent: 600W maximum, 120 VAC. Resistive: 15 amps (1800W) maximum, 120 VAC |
Motor | 1/2 H.P. maximum, 120 VAC |
Range | Min 30m line of sight |
Dimensions | 115(L)*70(W)*44(H)mm |
Net weight | 130g |
Frequency | - 908.42 MHz |
Metering | electrical power load in W / electrical power work in kWh |
![](/proimages/44f3j00CUETSwVgZekK/z-wave-plus-smart-wireless-wall-socket-built-in-power-meter.jpg)
Installation
1. Before installation ensure that the voltage supply is disconnected.
2. Connect ZWP32 module as shown on above diagram.
3. Connect the device in accordance with the wiring diagram presented in Wiring diagram. Switch on 120V of the mains voltage.
4. For "Add" in a network: Put the Z-wave interface controller into "Add" mode, and following its instruction to add the ZWP32 to your controller. To get in the "Add" mode, the distance between ZWP32 module and controller is suggested to be in one meter. Quickly pressing the learn switch of ZWP32 three times for 1 second at least & release to be included.
5. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZWP32 from your controller. Press the learn switch of ZWP32 three times for 1 second at least & release to be excluded.
Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
NOTE!
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Warranty 1 year
