Prod Model: |
LM8-3001NA |
Housing Diameter: |
8mm |
Detected Distance: |
1mm |
Voltage: |
6-36VDC |
Installation Type: |
Non-Flush |
Housing Material: |
Metal |
Operation Type: |
No |
Output Current: |
200mA |
Output Voltage Drop DC/AC: |
DC<3V AC<10V |
Response Frequency: |
200Hz/25Hz |
Protection Grade: |
IP67 |
Type: |
Microwave Sensor Switch |
Wires: |
NPN (',Three-Wires) |
Standard: |
Standard |
Application: |
Corridor |
Certification: |
CCC |
Principle: |
Inductive Sensor |
Product Description
LM8 detecting 1~2mm inducitive cylinder proximity switch sensor
Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1"~2"metal object . YUMO Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch , YUMO will be your best choice .
Datasheet :
Detecting rang1mm | YUMO part no. | other part no. | Omron part no. |
Flush | DC | NPN | NO | LM8-3001NA | LJ8A3-1-Z/BX | E2E-X1R5E1 |
6~ 36V | NC | LM8-3001NB | LJ8A3-1-Z/AX | E2E-X1R5E2 |
| NO+NC | - | - | |
| PNP | NO | LM8-3001PA | LJ8A3-1-Z/BY | E2E-X1R5F1 |
| NC | LM8-3001PB | LJ8A3-1-Z/AY | E2E-X1R5F2 |
| NO+NC | - | - | |
| 2 Wires | NO | LM8-3001LA | LJ8A3-1-Z/EX | |
| NC | LM8-3001LB | LJ8A3-1-Z/DX | |
AC | SCR | NO | LM8-2001A | LJ8A3-1-J/EZ | E2E-X1R5Y1 |
NC | LM8-2001B | LJ8A3-1-J/DZ | E2E-X1R5Y2 |
| NO+NC | | | |
Relay output | | | |
Detecting rang1.5/2mm |
Non-flush | DC | NPN | NO | LM8-3002NA | LJ8A3-2-Z/BX | E2E-X2ME1 |
6~ 36V | NC | LM8-3002NB | LJ8A3-2-Z/AX | E2E-X2ME2 |
| NO+NC | - | | |
| PNP | NO | LM8-3002PA | LJ8A3-2-Z/BY | E2E-X2MF1 |
| NC | LM8-3002PB | LJ8A3-2-Z/AY | E2E-X2MF2 |
| NO+NC | - | | |
| 2 Wires | NO | LM8-3002LA | LJ8A3-2-Z/EX | E2E-X1D1 |
| NC | LM8-3002LB | LJ8A3-2-Z/DX | E2E-X2MD1 |
AC | SCR | NO | LM8-2002A | LJ8A3-2-J/EZ | E2E-X2MY1 |
| NC | LM8-2002B | LJ8A3-2-J/DZ | E2E-X2MY2 |
90~250V | | NO+NC | | | |
| Relay output | |
Sensor Characteristics | | | | |
Output current | DC | 150mA |
SCR/relay | |
Output voltage drop | DC(NPN;PNP) <3V;2wires type:<3.9V;AC type: AC <10V |
Consumption current | DC(NPN;PNP) DC 12V 8mA;24V15mA;AC type: AC <10mA |
Standard detected object | 8×8×1(A3 Iron) |
Repeated precision | 0.01 |
Response Frequency | 500Hz/25Hz |
Working environment temperature | -25ºC ~+75ºC |
Insulation resistance | ≥50MΩ |
Shell material | Metal |
Protection grade | IP67 |
Alternative model | E2E-X1R5 |

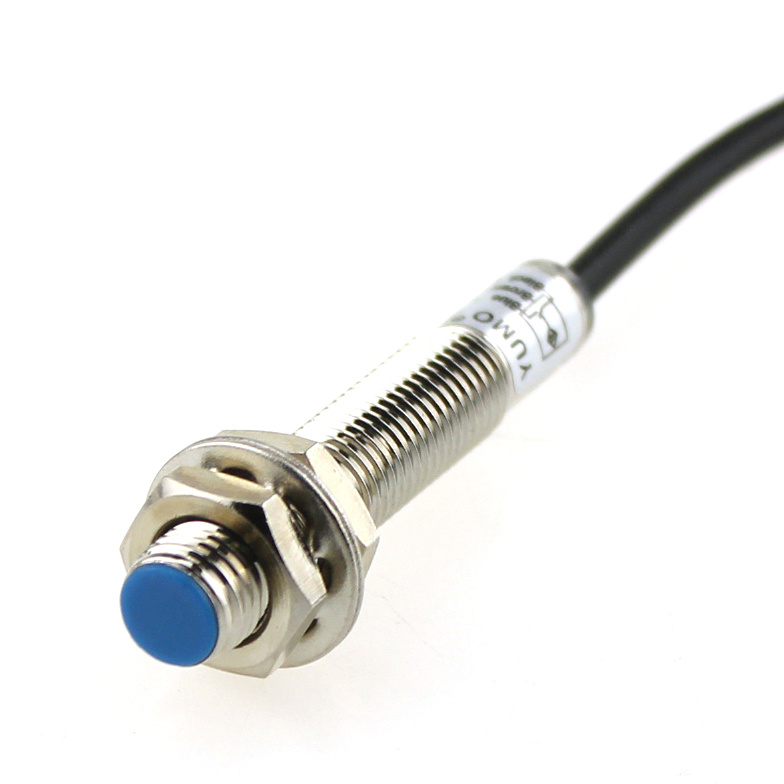

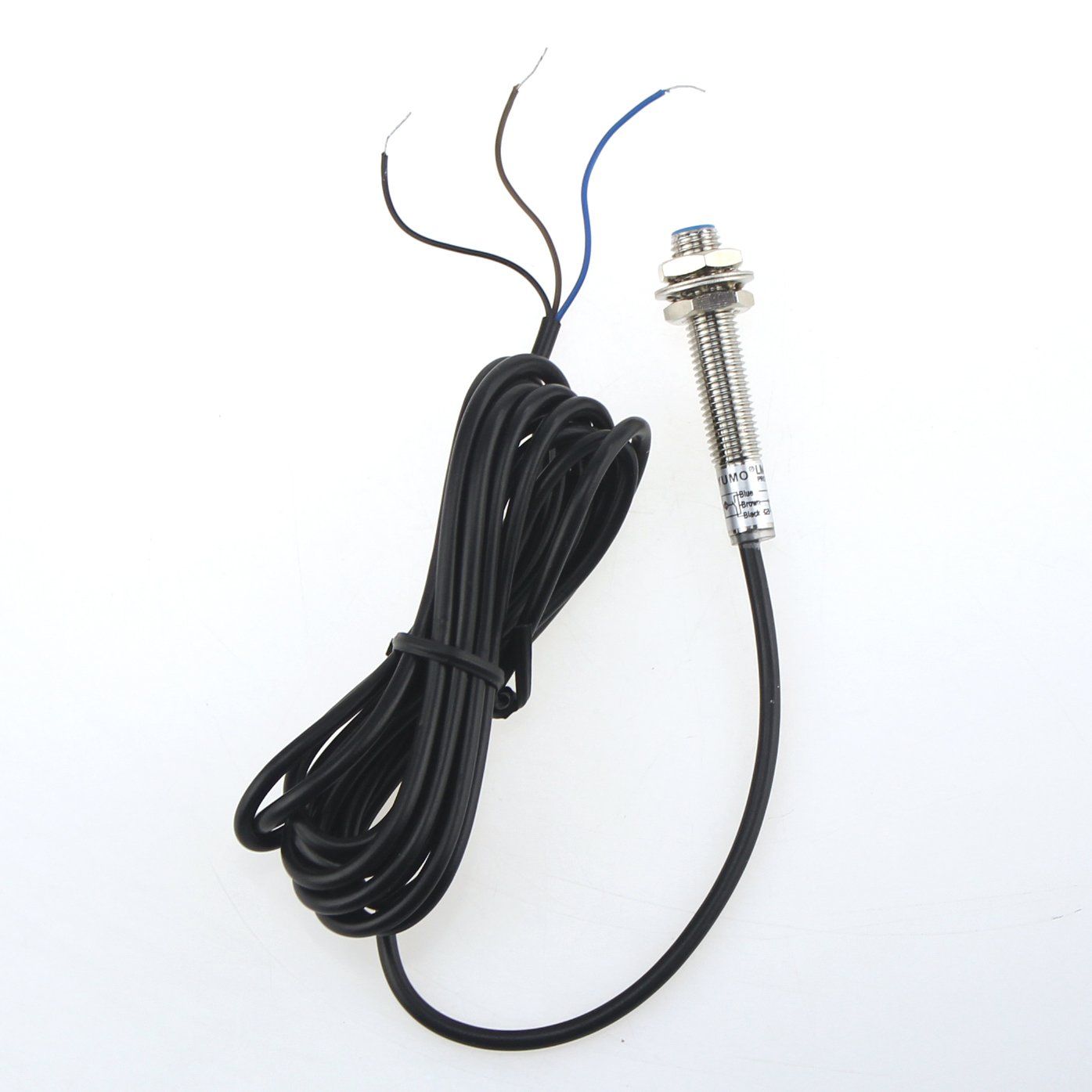

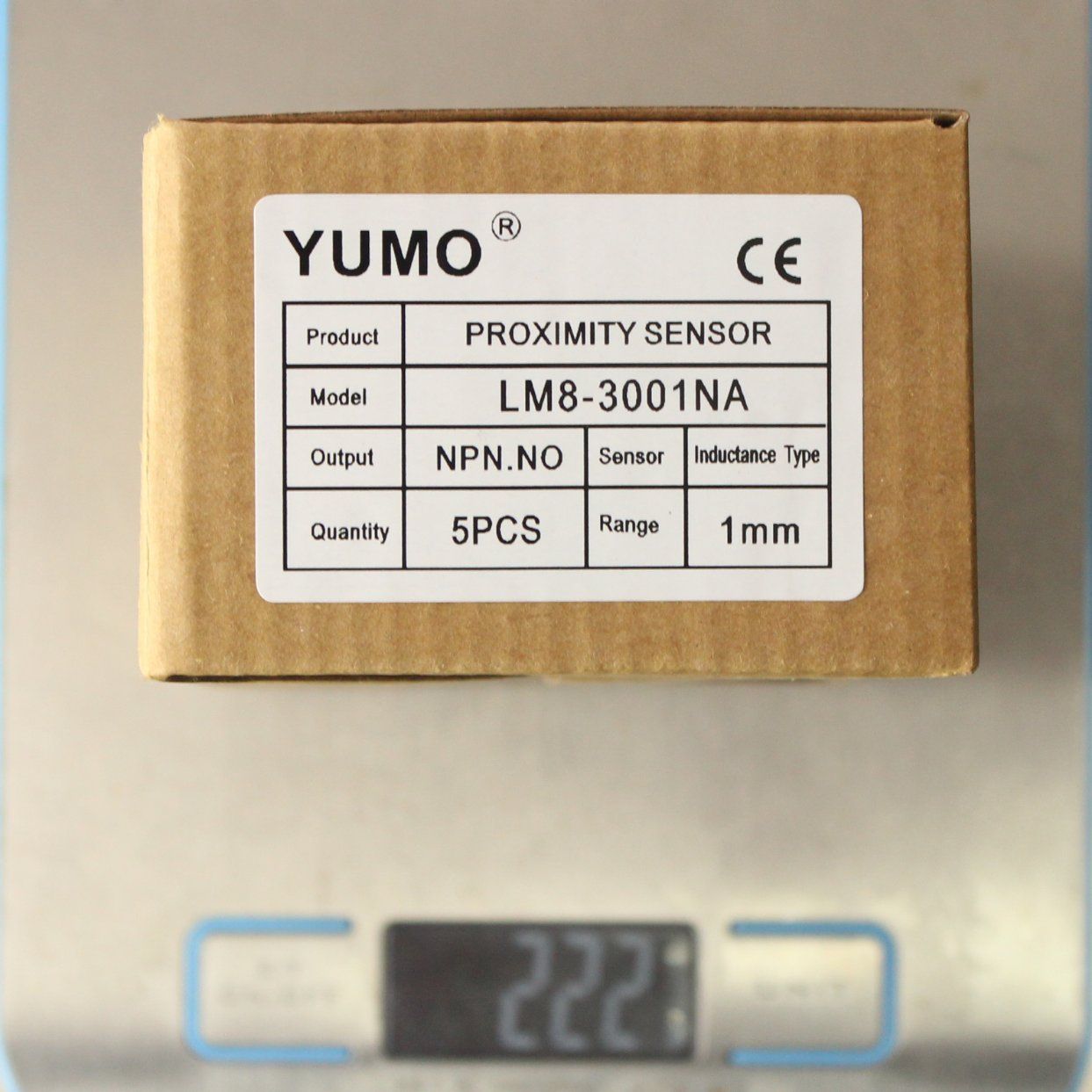

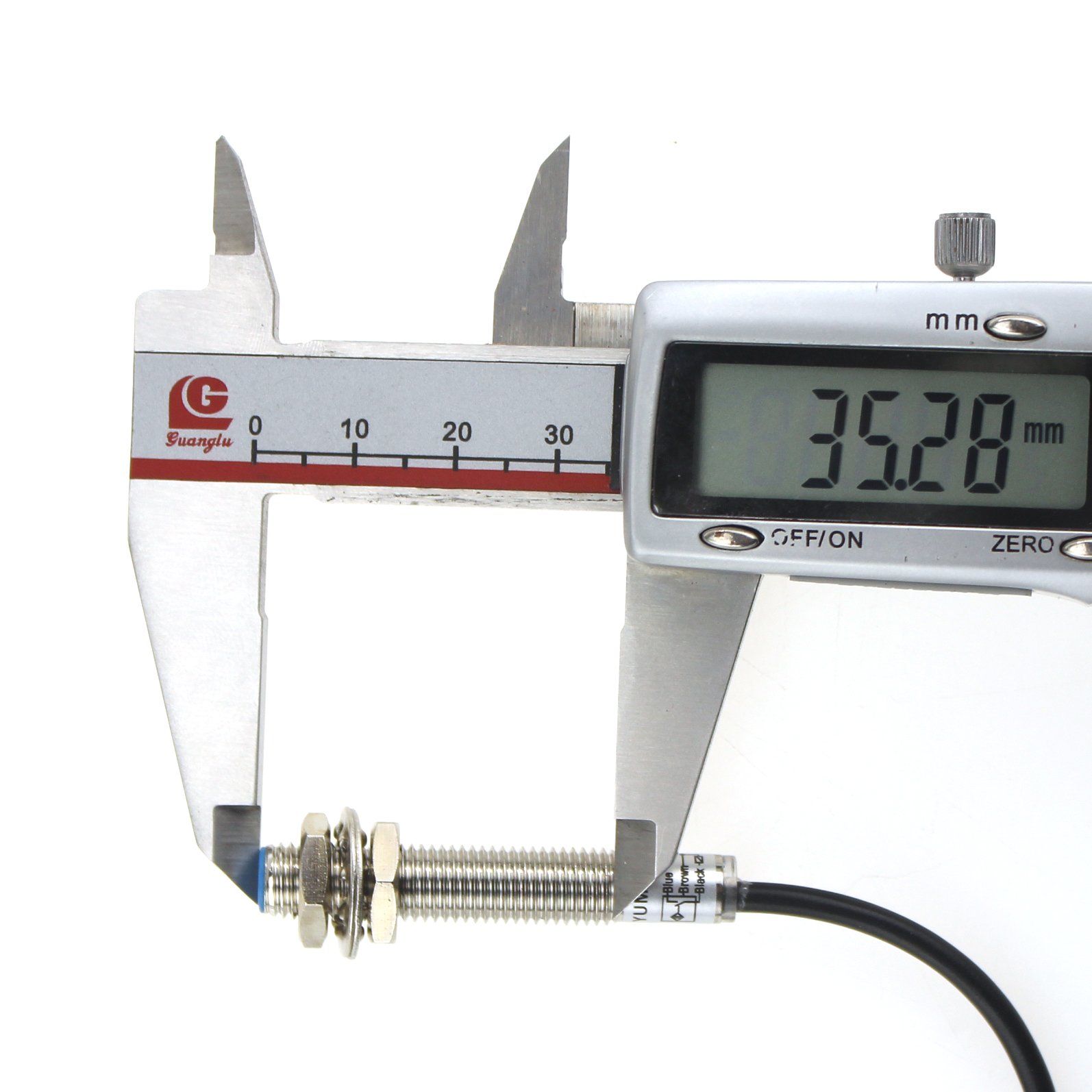

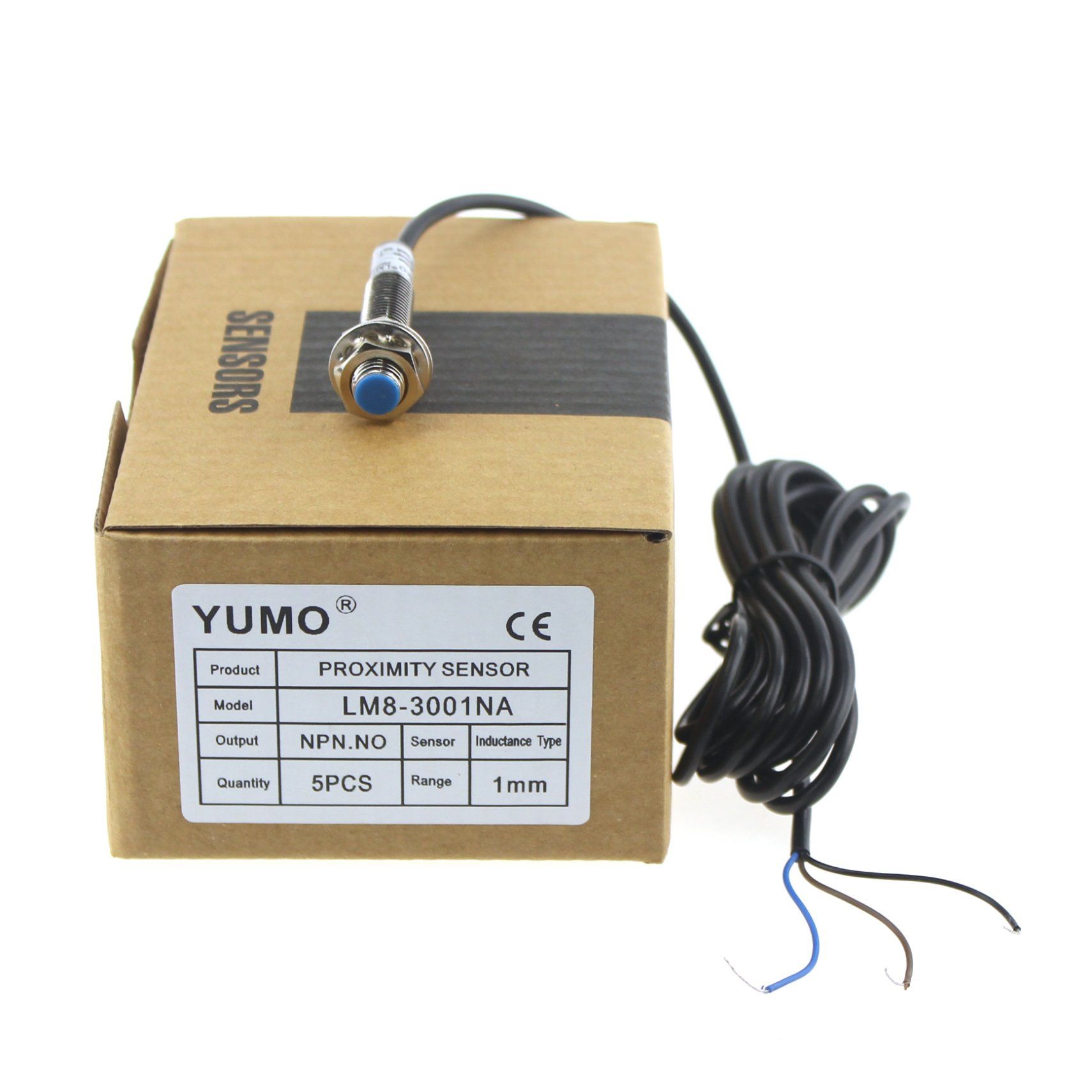

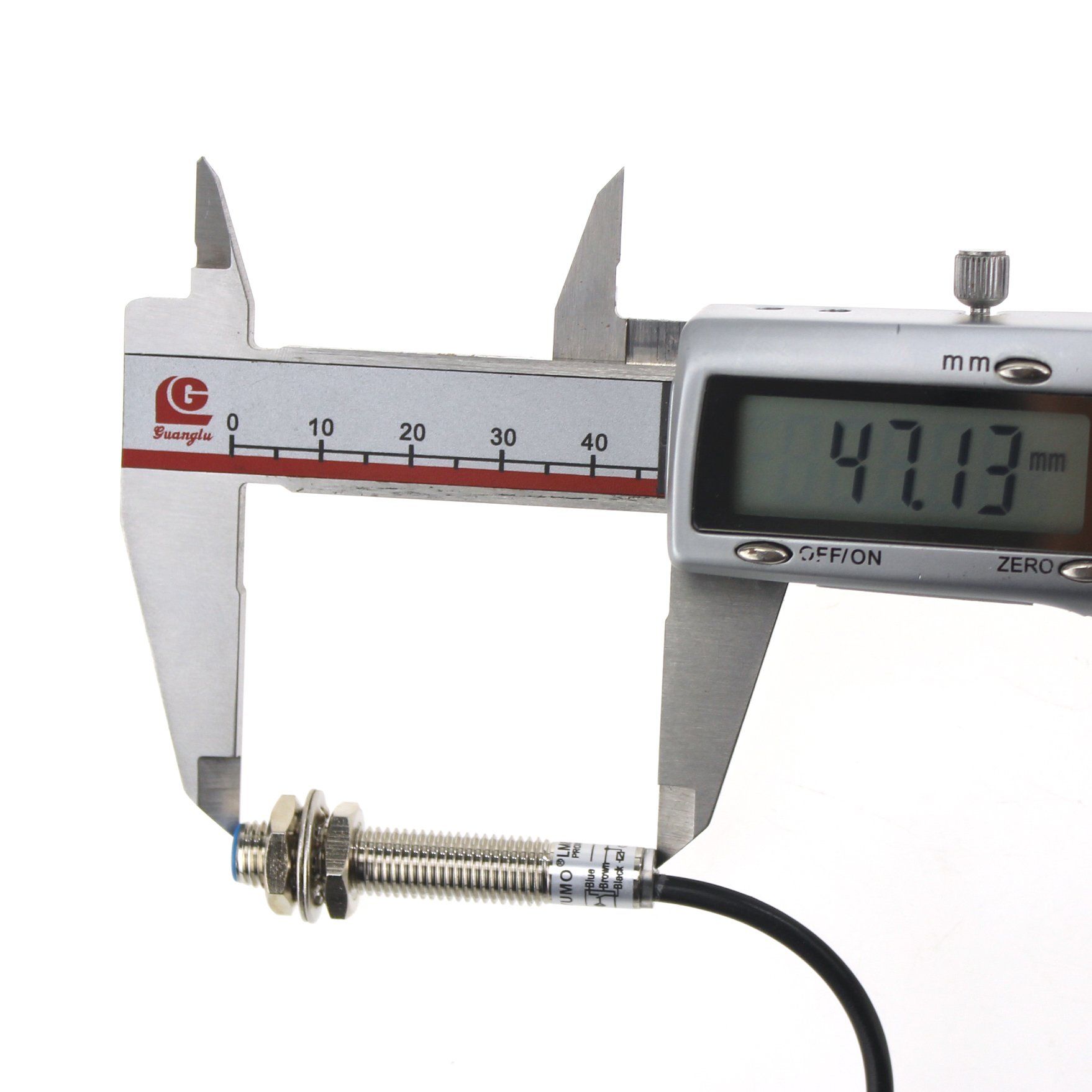

Product picture:
![](/proimages/44f3j00wrDaSKOjSQbm/yumo-lm8-3001na-series-m8-mini-cylinder-inductance-proximity-switch-sensor.jpg)
![](/proimages/44f3j00wrDtZnNsyTom/yumo-lm8-3001na-series-m8-mini-cylinder-inductance-proximity-switch-sensor.jpg)
![](/proimages/44f3j00duLTSwFhMtoA/yumo-lm8-3001na-series-m8-mini-cylinder-inductance-proximity-switch-sensor.jpg)
![](/proimages/44f3j00azHtNQOlTEkT/yumo-lm8-3001na-series-m8-mini-cylinder-inductance-proximity-switch-sensor.jpg)
![](/proimages/44f3j00QgHaOfnGFtcE/yumo-lm8-3001na-series-m8-mini-cylinder-inductance-proximity-switch-sensor.jpg)
![](/proimages/44f3j00tpPTygFUmaoQ/yumo-lm8-3001na-series-m8-mini-cylinder-inductance-proximity-switch-sensor.jpg)
