| Prod Model: |
G12-3A07PA |
| Sensor: |
G12 |
| Housing: |
12mm |
| Sensing Range: |
70mm |
| Signal: |
PNP |
| Operation Model: |
No |
| Input Voltage: |
6-36VDC |
| Protection Grade: |
IP54~IP57 |
| Housing Material: |
Metal |
| Detecting Type: |
Diffuse |
| Detected Object: |
Transparent of Opaque Body |
| Type: |
Microwave Sensor Switch |
| Principle: |
Photoelectric |
| Wires: |
PNP (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
Product Description

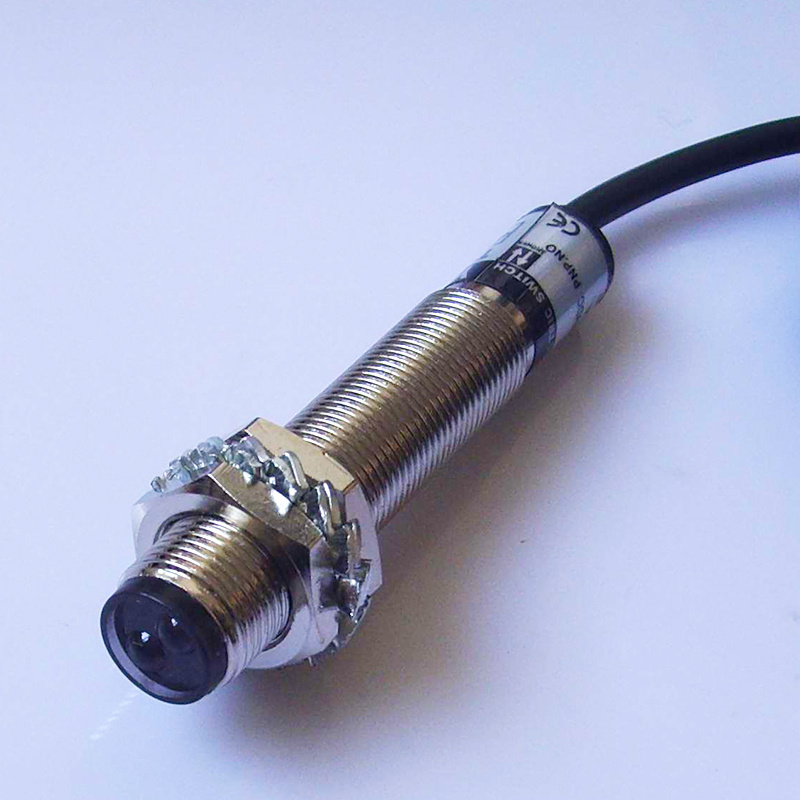

YUMO CE M12 metal housing diffuse photoelectric proximity sensorTechnique parameter:
1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
9. Other photoelectric sensor models: G12, G13, G14, G15, G16, G17, G18, G23, G24, G25, G26, G28, G30, G33, G35, G36, G40, G44, G50, G54, G55, G64, G68, G70, G71, G72, G180, G74, G75, G76, G77, G78, G80, G85, G86, G90, G100, G110, G139, G56, G60, G63, G65, G57, E3F, E3JK and so on.
10. More details, please contact us.
Electrical Datasheet| Diffuse type | Detection distance | 7cm |
| 10-30VDC | NPN | NO | G12-3A07NA |
| NC | G12-3A07NB |
| NO+NC | G12-3A07NC |
| PNP | NO | G12-3A07PA |
| NC | G12-3A07PB |
| NO+NC | G12-3A07PC |
| Retroreflective type | Detection distance | 1m |
| 10-30VDC | NPN | NO | G12-3B1NA |
| NC | G12-3B1NB |
| NO+NC | G12-3B1NC |
| PNP | NO | G12-3B1PA |
| NC | G12-3B1PB |
| NO+NC | G12-3B1PC |
| Through beam | Detection distance | 3m |
| 10-30VDC | NPN | NO | G12-3C3NA |
| NC | G12-3C3NB |
| NO+NC | G12-3C3NC |
| PNP | NO | G12-3C3PA |
| NC | G12-3C3PB |
| NO+NC | G12-3C3PC |
| DC/SCR Control output | DC:200mA |
| DC/AC Consumption current | DC<15mA |
| DC/AC Response time | Dc<2ms |
| Directional angle | 3 ° -10° |
| Detected object | transparent or opaque body |
| Working environment temperature | 25~+55ºC |
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX |
| Shell material | Metal |
| Protection grade | IP54~IP67 |
