Prod Model: |
YJ61 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Supply Voltage: |
220-240V 50Hz 100-120Hz 60Hz |
Core Material: |
Silicon Sheet |
Wire Material: |
Copper |
Protection: |
Over-Heater Protection |
Application: |
Household Appliances |
Operating Speed: |
Constant Speed |
Number Of Stator: |
Single-Phase |
Rotor Structure: |
Winding Type |
Casing Protection: |
Open Type |
Species: |
Shaded Pole Motor |
Starting Mode: |
Induction Starting |
Certification: |
Ce UL |
Brand: |
Yixiong |
Product Description
YJ61 Asynchronous Electric Ventilation Fan Motor
Motor size:
1. Stator diameter: 61.5mm
2. Shaft diameter: 4.5/5/5.5/6mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 pole
6. Rotation: CW/CCW
Application
1. Fan-heater, refrigerator, Air-Conditioner, Microwave oven, Blender, Air-cleaner, Fan, Exhaust fan, Humidifier, Dehumidifier and Medical, Household and industrial appliances;
2. It is safety and reliable, low noise, characteristics hard, good starting, long life, etc.;
2. This AC motor can be designed and produced according to your request.
Model | Voltage | Frequency | Current | Power | Speed | Class |
YJ61-10 | 110/220 VAC | 50-60 Hz | 0.18 A | 13.0 W | 1850 RPM | E/B/F |
YJ61-13 | 110/220 VAC | 50-60 Hz | 0.20 A | 16.0 W | 1800 RPM | E/B/F |
YJ61-16 | 110/220 VAC | 50-60 Hz | 0.24 A | 25.0 W | 2500 RPM | E/B/F |
YJ61-20 | 110/220 VAC | 50-60 Hz | 0.28 A | 27.0 W | 2400 RPM | E/B/F |
YJ61-25 | 110/220 VAC | 50-60 Hz | 0.31 A | 30.0 W | 2480 RPM | E/B/F |
YJ61-30 | 110/220 VAC | 50-60 Hz | 0.35 A | 32.0 W | 2450 RPM | E /B/F |
YJ61-40 | 110/220 VAC | 50-60 Hz | 0.43 A | 36.0W | 2400 RPM | E/B/F |
Specification:
1.Rated power supply:230V AC 50HZ
2.Insuation Class:H
3.Direction of rotation(Shaft extension end to see):CCW.
4.Voltage resistance:1500V /0.5MA/S
5.Starting voltage:Max 180V
6.Insulation resistance:Cold:Min 50M ohm,Hot:Min 20M ohm.
![](/proimages/44f3j00suSTCZqoEicz/yj61-cross-flow-fan-blower-motor.jpg)
Application:

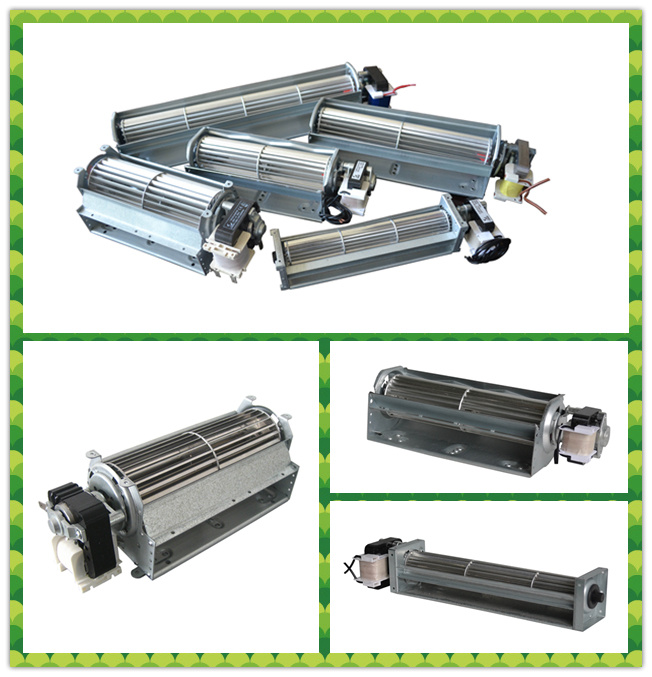

1.This cross blower motor could be used for: Fan-heater, Air-conditioner,Microwave oven,fan ,household and industrial,appliances.
2.It is safty and reliale,low noise,characteristic hard,good staring,long life,etc,
Delivery terms:
1.T/T in advance will be our popular payment terms.
2.We'd like to send you some samples for your cloth for your cloth inspection first.
3.We have detailed specification.If you are interested in it,please wite to me or call me on skype.
Packing:
1.Carton use double wall corrugated board.

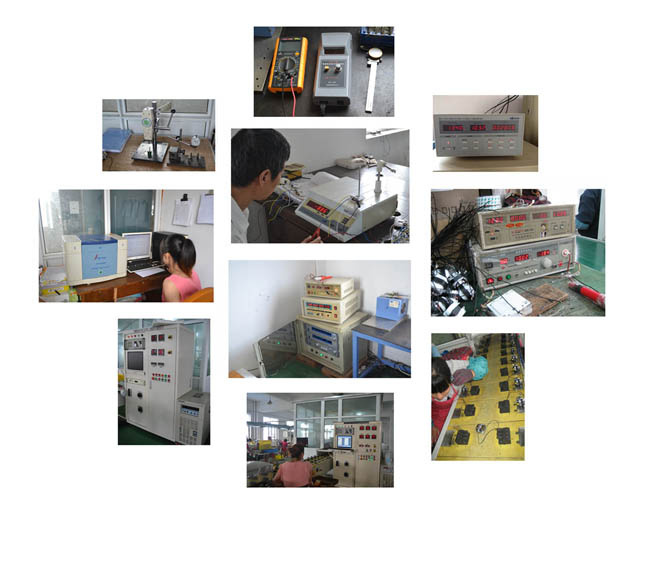

Production and Inspection
![](/proimages/44f3j00KzjQMObcflor/yj61-cross-flow-fan-blower-motor.jpg)
![](/proimages/44f3j00jgStBJczAlqr/yj61-cross-flow-fan-blower-motor.jpg)
Contact
![](/proimages/44f3j00yuKQeEbrYioz/yj61-cross-flow-fan-blower-motor.jpg)

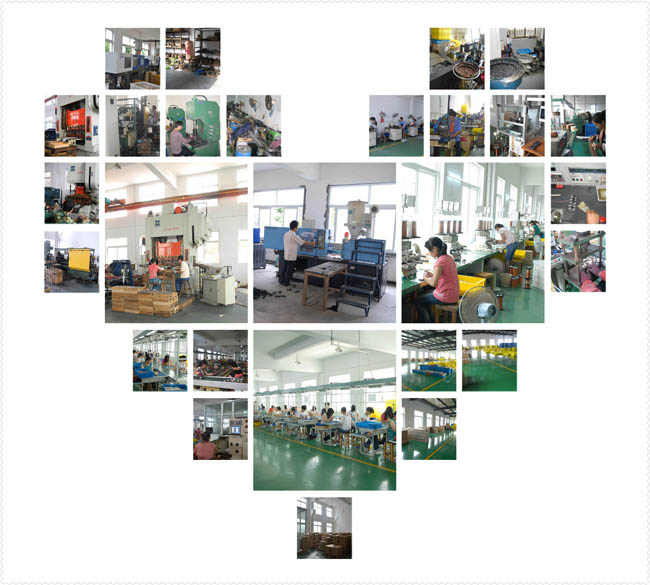

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.
We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.
The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.
More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
