| Prod Model: |
YD02-LED3 |
| Illuminance: |
>=120,000lux |
| Structure Material: |
Alluminum Alloy |
| Color Temperature(K): |
3500-5000k |
| Colour Reduction Index(Ra): |
96 |
| Total LED Bulb Quantity: |
76PCS |
| Total Power Consumption: |
100W |
| Service Life Of Illuminant: |
50,000h |
| Power Supply Voltage: |
AC110-240V,50/60Hz |
| Size Of Light Field: |
150-220mm |
| Total Irradiance: |
512W/M2; |
| Type: |
Operating Light |
| Kind: |
Orthopedics |
| Certification: |
TUV |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
| Source: |
Air |
| Anesthesia: |
Closed Circuit |
| Type Of Operating Light: |
Single Operating Light |
Product Description

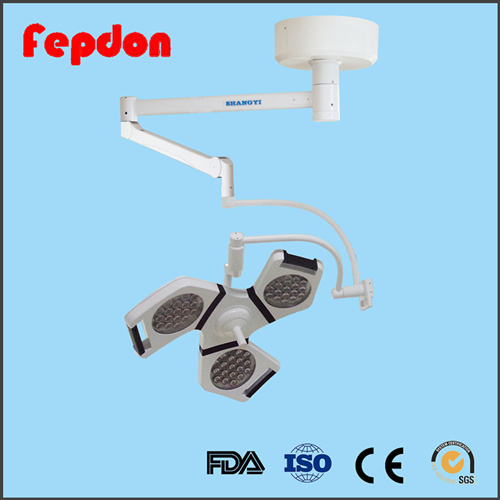

YD02-LED3 Icu Room Apertured Integrated Operating Lamps
Descriptions:
It's our high end type product, with the arm ceiling installation design it's widely in the surgical operating room. LED lighting technology makes it very good at operation lighting and it can also reduce the fatigue during surgical operation. The low radiation heat management system provides the comfortable environment for both the doctor and the patent.
We have studied the top level similar products during our product research and development, it makes our products with high quality and suitable price.
Features:
1.Long life time bulb
More than 30000h life time, low cost and stable performance.
2.Energy saving
It can reduce 1/3 energy compared with the halogen surgical light, it can largely reduce the operating cost.
3.Good laminar flow effect
Streamline shape is very important at reduce the disturbance of the laminar flow in the surgical room.
Technological Specifications:
| Type | YD02-LED3 |
| Illuminance (LUX) | ≥120000 |
| Diameter of light spot (mm) | 150 ≤S≤200 |
| Color temperature(K): | 3500 ≤T≤5000 |
| CRI (Color rendering index) [Ra] | ≥95 |
| Shadowless proporation (%) | ≤98 |
| Illumination depth (mm) | ≥1100 |
| Temp rise(°C)surgeon head | ≤2 |
| Total power consumption: | 140W |
| LED bulb Service life (hour) | ≥50000 |
| Total LED bulb quantity: | 57pcs(19*3) |
| Voltage | AC110-240V,50/60Hz |
| Lowest height of installation | 2900mm |
| Trade Items of Our Products | YD02-LED3 led surgical lamp ce |
| MOQ: | 1 piece |
| Packaging: | carton or wooden case |
| Payment: | L/C T/T Western Union |
| Port: | Shanghai |
| Delivery time: | 3-7 days after receiving payment |
| Production Capacity: | 500pcs/Month |
Our company mainly produces high-end operating light, operating table,medical pendant, Oxygen bag, Air cushion, Pneumatic tourniquet, electric boiling sterilizer and so on. We have our own factory and all the products have passed CE, FDA, ISO certification.
FAQ:
1. What is the mode of payment?
TT,Western Union,L/C
2. How do you ensure the products quality?
Production / inspection report before your order packed.we have obtained CE and ISO Certificate.
3. Whether provides OEM of operating bed, surgical lamp, medical pendant?
Yes
4. How long is the delivery time?
3-7days
5. What are the certificates of products?
CE,FDA,ISO, free sale
6. Can you put our logo on products?
Yes, please tell us your detail information, before packing will put your logo on the product and show you pictures.
7. How about your after-sale service?
We have a professioanl team to responsible for your after- sale service. Once the order confirmed, we have professional servier follow this order, will take photo for you every step. will take pictures before packing and shipping. you still supervise order for every step although you are not in the spot.
Founded in 2009, FEPDON is a medical equipment manufacturer and our mainly products including the medical pendant, ICU pendant, shadowless operating lamp, operation table, medical IT power supply system, medical airtight door, laminar flow ceiling, transferring windows, etc and the clean room engineering fitting parts. Our factory is located in Heqing industrial park, Shanghai Pudong new area, our factory occupies 20000m2, with 100 workers and 10 senior engineers, it has the welding workshop, mechanical processing workshop, assembly workshop, warehouse workshop, etc. Our company has the R&D center, production center and quality testing center to ensure our product with good quality, reasonable design and the competitively price. High quality materials and parts are used which makes our products with high performance, and we can also fabricated according customers' requirements. We are one of the top 3 suppliers in China in both the products and the clean room project engineering, and our products has been exported to Middle East, Russia, Southeast Asia, Africa, etc, and warmly welcomed by our customers.
We are a subsidiary company of FEPDON group, our headquarters is in Hubei Province, China, and is a top group in the clean room project engineering area, it has more than 200 technology workers, 26 sensor engineers, 62 intermediate engineers, 35 1st National certified architects, 22 2ND National certified architects, 8 National clean room engineers, 2 International clean room engineers. Not only the medical gas system products, we can also provide the turnkey projects of the medical clean room project engineering, such as the medical building design and layout, surgery room cleaning project, laboratory cleaning engineering, medical building decoration engineering, medical central air conditioning project, building electrical engineering, building intelligent system project, medical gas project, etc. The medical clean room engineering projects includes the operating room, ICU (intensive care unit), central sterile supply department, biosafety laboratory, reproduction medicine center, hospital clean sterile ward, clinical laboratory, laminar air flow ward, medical gas supply system, ect.
We have the lots of experiences in both of the products design, manufacturing and the engineering projects, we can provide the good quality products and the turnkey projects of the clean room engineering for hospital, and it also includes the project hosting services.
