Xy1 High Accuracy Load Cell Simulator

Name: Xy1 High Accuracy Load Cell Simulator
Brand: all-electronics-online.com
SKU: 838140765
Availability: InStock
Rating: 4.5 (60 reviews)

Price:	US $ 119-129/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	XY1
Output:	0-2mv/V
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Strain Gauge
Material:	Alloy Steel

Product Description

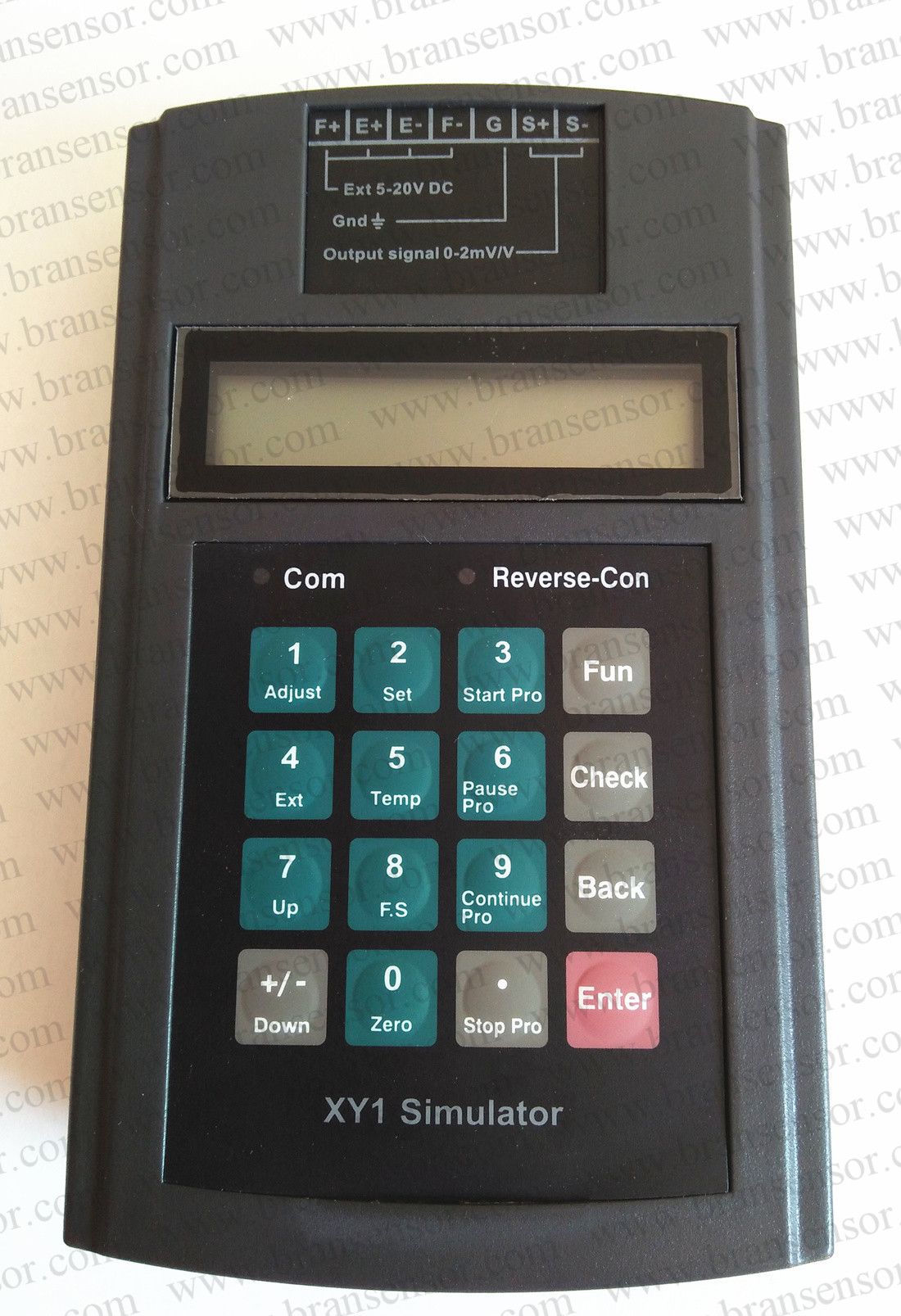

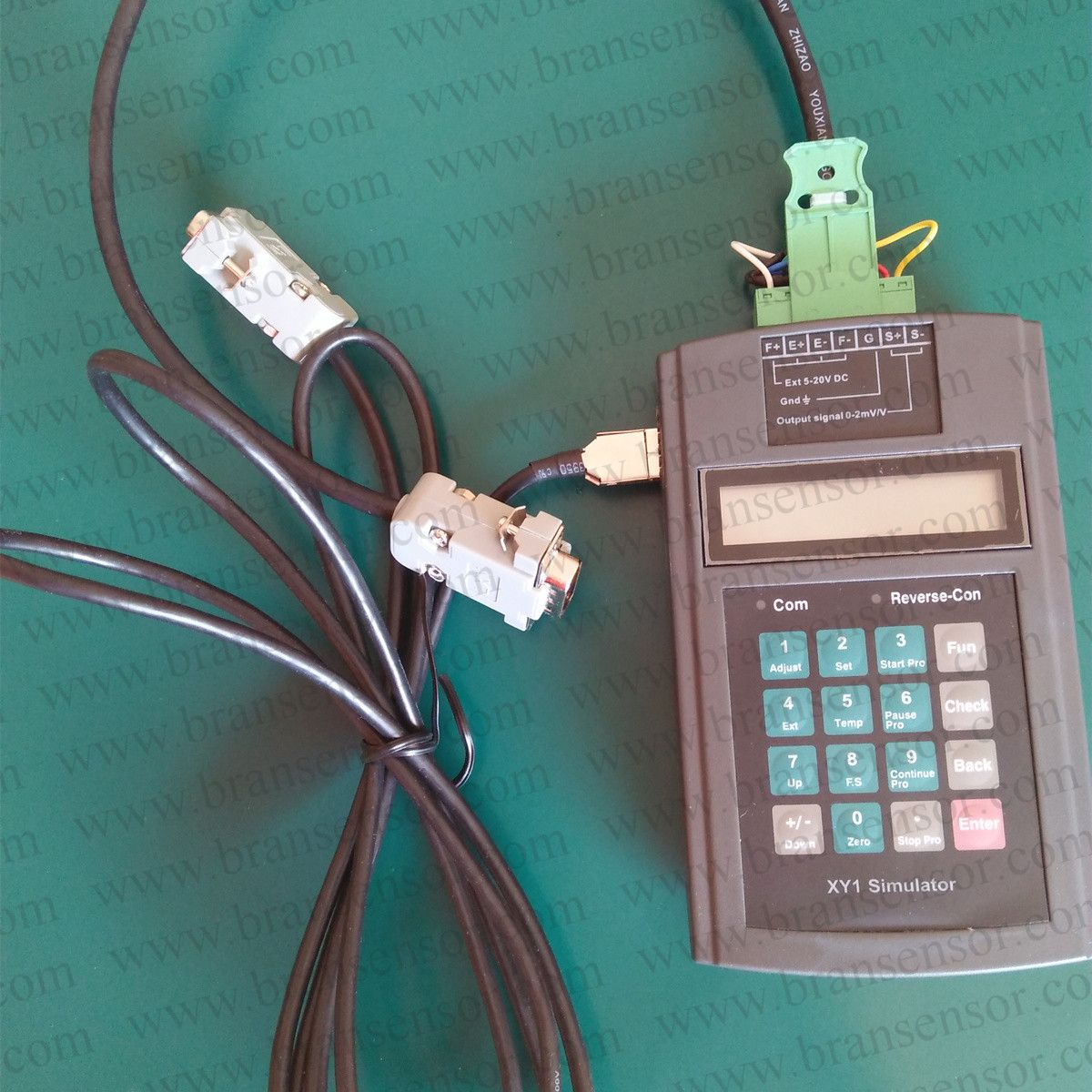

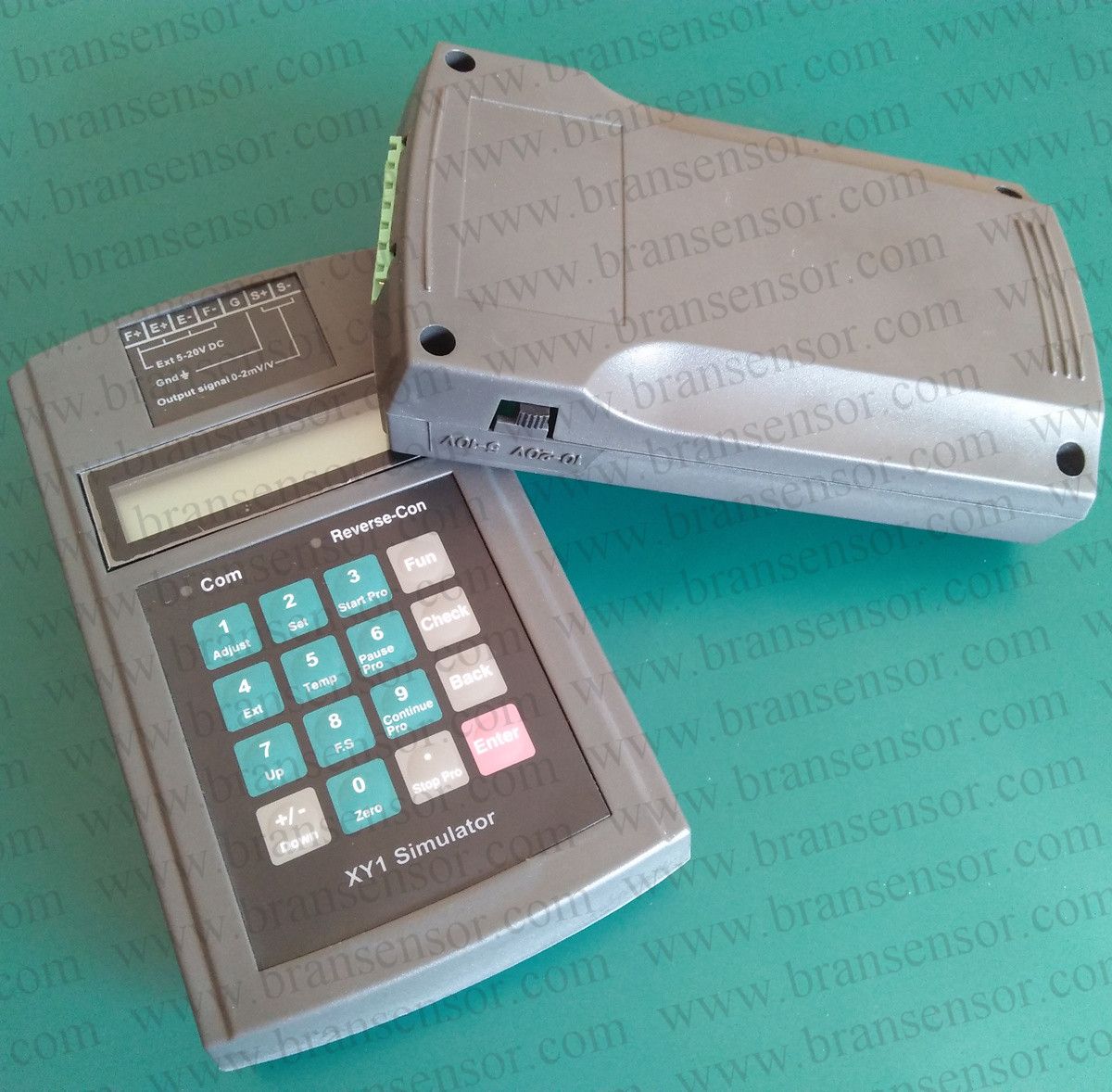

1. Name: Analog simulator of Load Cell with high accuracy
2. output: 0-2mV/V
3. Material/production class: plastic housing

4. Datasheet

	Specifications	Technique
	Type	XY1
	Rated output	0-2.0mV/V
	Accuracy	0.01% F.S.
	Non-linearity	≤0.005% F.S.
	Hysteresis	0.05%F.S.
Division	sensitive of the load cell	0.05%F.S.
Stimulating voltage	Two level	DC 5-10 V, 10-20 V
	Temp.effect on output	≤±5ppm/ºC
	Temp.effect on zero	0.025%F.S./10ºC
	Input impedance	700±10Ω
	Output impedance	360±10Ω
	Maximum bits of the customer program	16K, can extend to 32K
	Operation temp range	-0~40ºC
	Cable	1.5m
	Material	Plastic housing
	Dimension	145mm × 85mm ×30mm

5. Functions:
1. Simulate the standard signal output of the strain weight, pressure or torque load cell
2. Set the output bound, 0~2mV/V when leaving manufacture
3. Set step length of the output, 0.1mV/V when leaving manufacture
4. Output stepwise increase or deduce according to the step length set
5. Output of the simulator can be set by the keyboard
6. Measure the surround temperature
7. Measure the stimulating voltage of the instrument under measuring
8. Modifiable zero and F.S output and can reduce step by step the calibrate non-linearity
9. Write the customer program by the keyboard
10. Write program by upper-computer and load down the program by the serial interface.
11. Execute the user's program, change the output and stimulate the process of the auto weigh equipment
12. according to the user command. In course of executing, the input of the switch can be by the keyboard and serial interface.

6. Instruction:
Through the stimulating voltage interface of load cell which connect to the LDO manostat and the precise resistance network. The manostat produce the stable voltage for the work of the circuitry. The reference voltage of precise resistance network is sent to the D/A diversion for basic voltage by the voltage select switch. Under the control of the SCM,the D/A diversion output the relative stimulating voltage to the resistance network. The output voltage of simulator is transmitted by the load cell interface after the diverse of the resistance network. The temperature load cell offer the temperature compensation data for the temperature amend. The A/D diversion of the SCM measures the data of the stimulating voltage. The position of voltage select switch is sent to the SCM by the I/O interface. The SCM checks whether the position of voltage select switch and the current stimulating voltage match. The SCM communicates with the upper-machine through the RS-232 interface. The operator controls the simulator by keyboard. The memorizer is used to save the program input by keyboard or loaded down through RS-232 interface.
