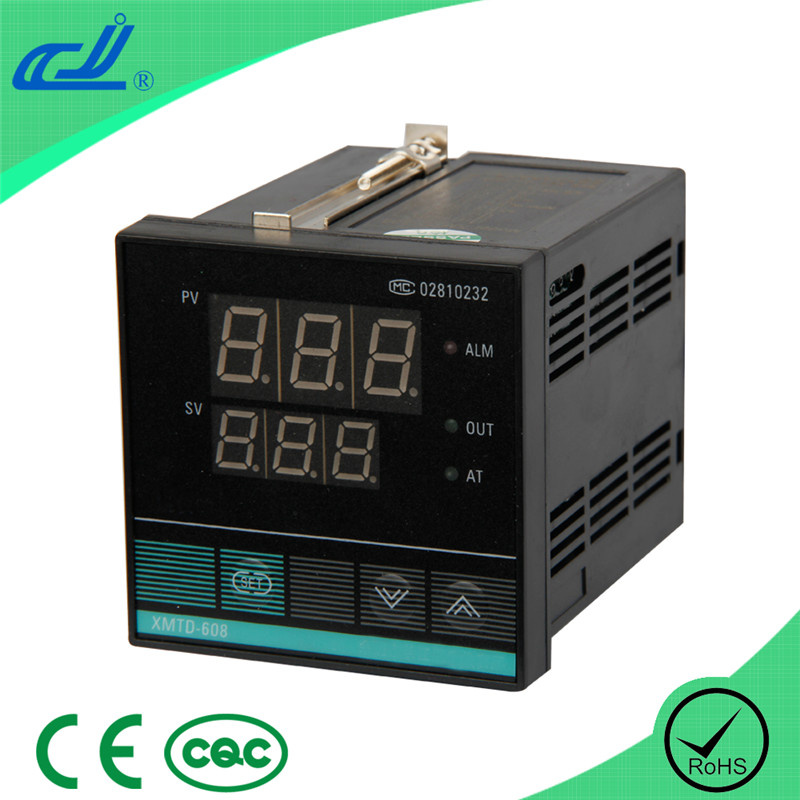

Xmtd-608 Digital Temperature Controller for Heat Press Printing Machine

Prod Model:	xmtd

Product Description

Temperature controller
On/off
PID control
Temperature meter are dual row 3-LED display
Input: CU50; PT100; K; E; J; T

XMT*608 series intelligent temperature controller, is double row 3-LED display and include on/off, PID control, including with parameter of self-setting function. This temperature meter respectively display temperature measurement value (PV) and temperature set value (SV) under normal mode; When it is time temperature control, respectively display temperature measurement value (PV) and running time count down (SV), and also provide kinds of time control method selection; The controller can input kinds of signal which are used interchangeably, it adopt ON/OFFP=0PID control, allowing an easy parameter setting and convenient inputting, is widely used over temperature automatic control systems of machinerychemicalceramicslight industrialmetallurgypetrifaction and heat treatment and so on.

Main technical Indexes
1, Measurement deviation: ± 0.5F· S± 1, Cold end compensating deviation± 1C
2, Input(can be selected): CU50(-50~150), PT100(-80~600), K(-30~999),
E(-30~700), J(-30~900), T(199~400)
3, Relay output contact capacity: AC220V 7A(resistance load)
Period 2~120s can be adjusted.
4, Drivng solid relay signal output: Driving electric current 15m A voltage >9V,
Period is 2S
5, Power: AC85V~242V, 50/60Hz
6, Work environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong electric radiation.


Model sense

                 XMT(    )-6   (    )     8     (   )

                        1          2     3     4        5

1:External size and Installation hole(mm)

Empty   160×80×90    152×76         A   96×96×90   92×92

D   72×72×90     68×68         E    48×96×90   44×92

F   96×48×90    92×44          G    48×48×100   44×44

S   80×160×90   76×152      B    60×120×90   56×116

C   80×120×35   wall set installation

2. Operation display method:'6': 3-key gentel push-switch setting, double row digital display, have PID adjustment

3. An additional alarm:

Blank or '0': indicates no alarm;'1': High limit touch alarm;'2': low limit touch alarm

4. Input signal classification: '8' : Input signal can interchange free

5. Suffix:  None: relay output           G: solid state relay output

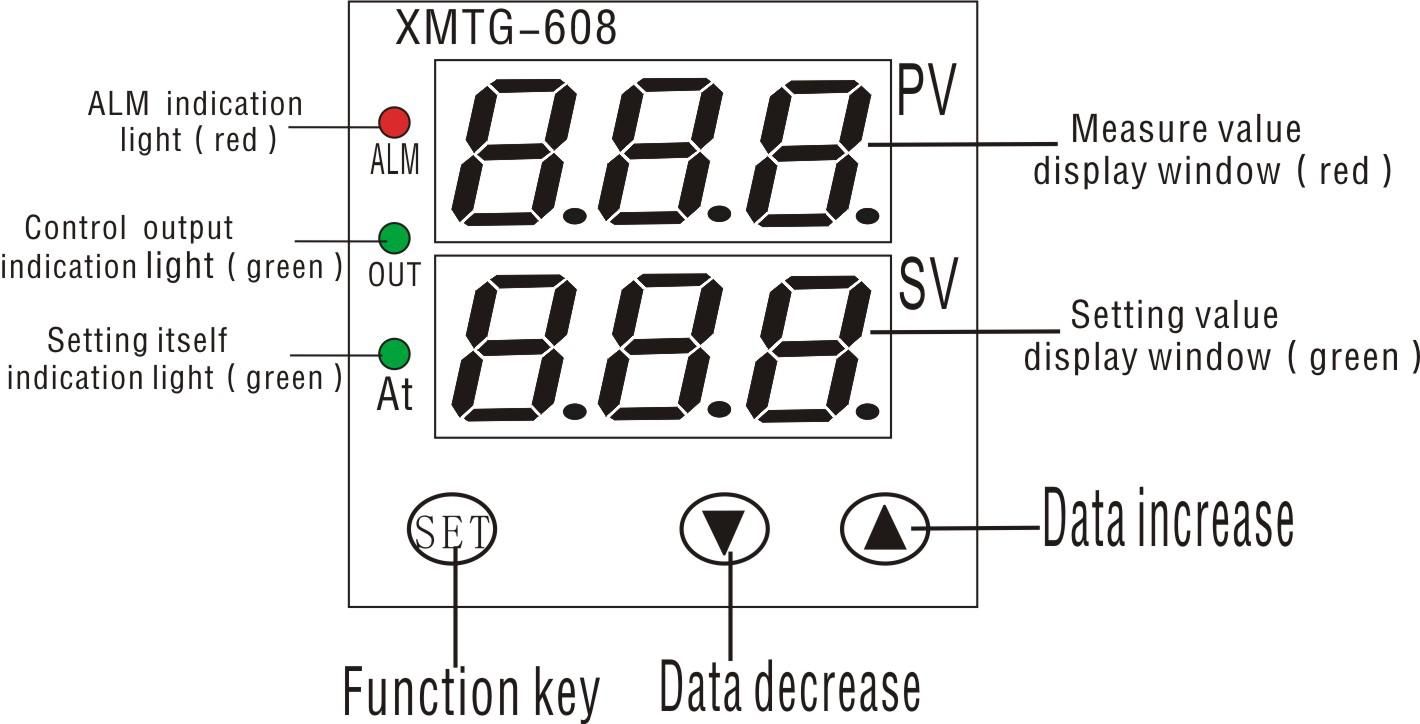

Instrument panel(consult)

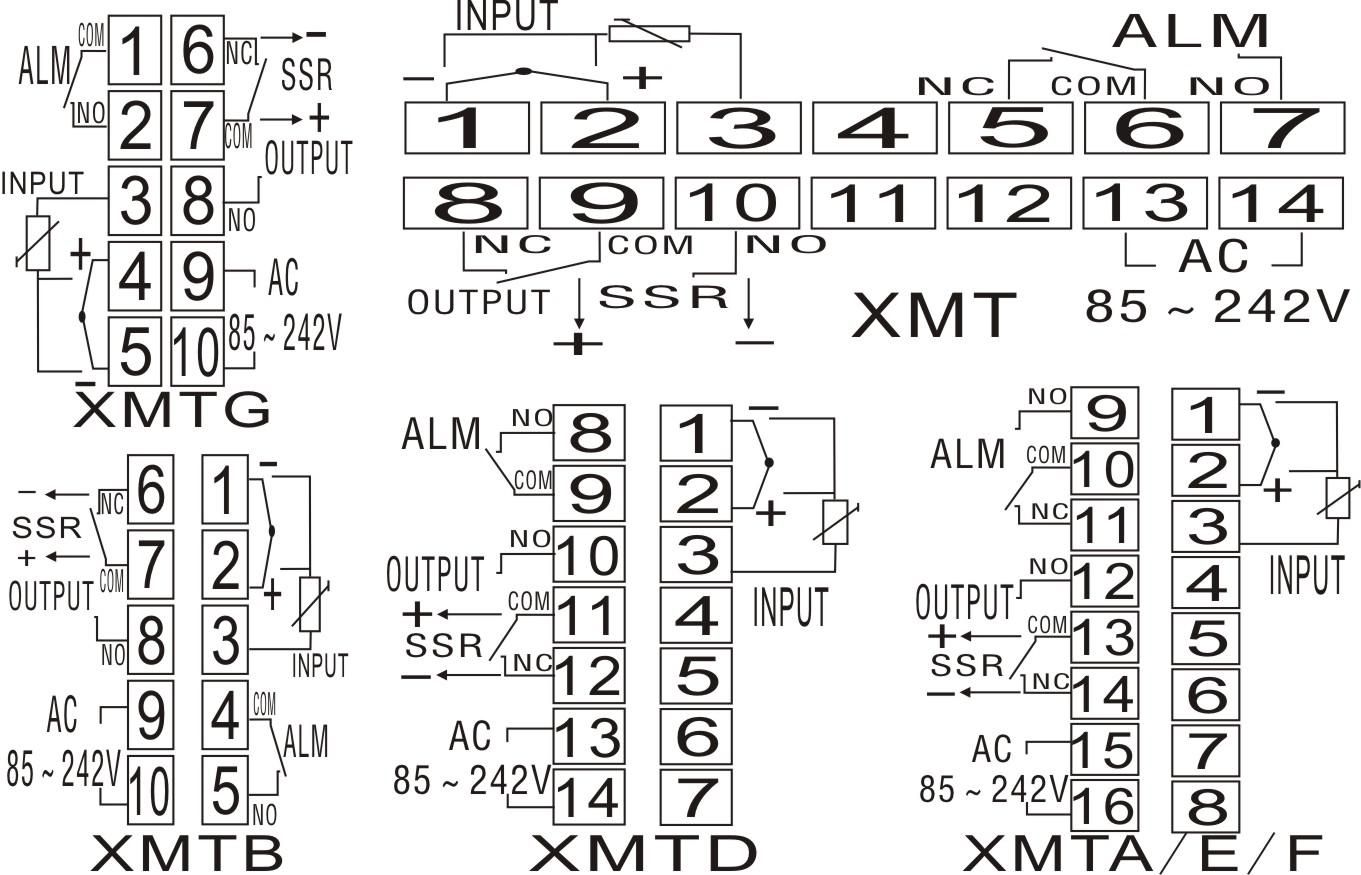

Connection scheme(consult)

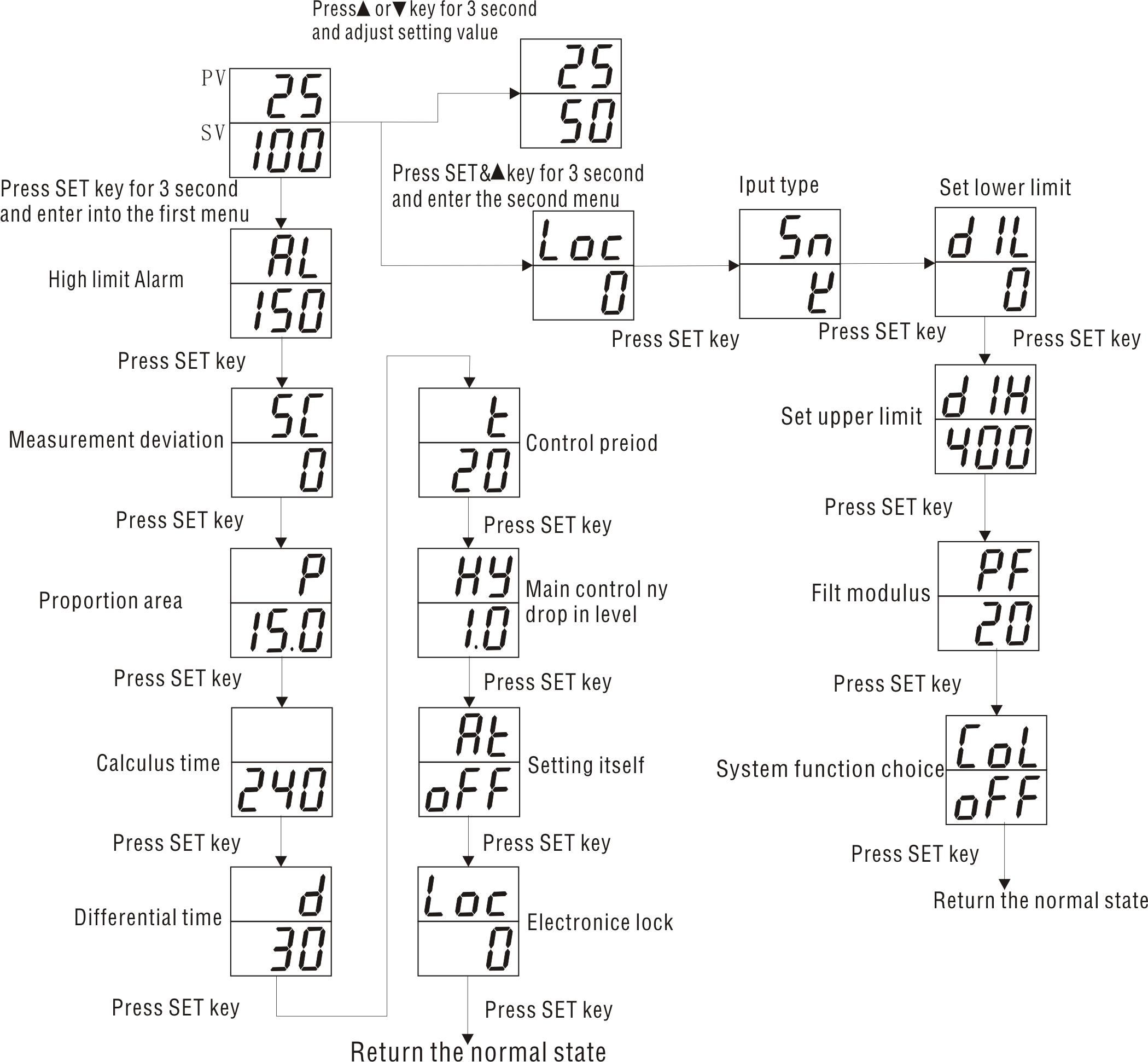

Flow chart
