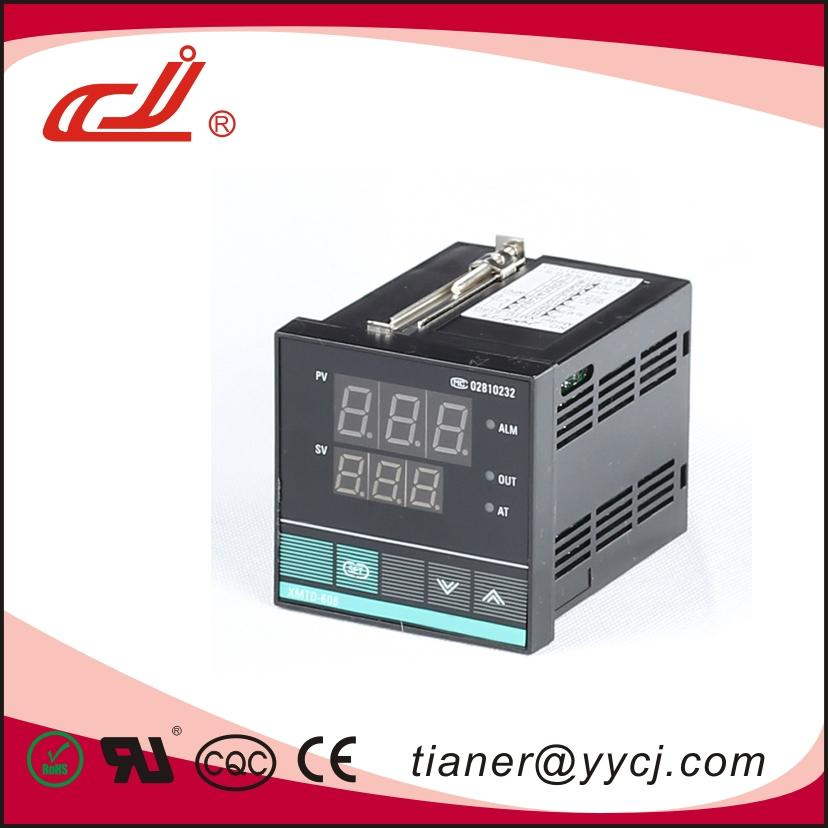

Xmtd-608 Cj Digital Temperature Controller for Heat Press Printing Machine

Prod Model:	Xmtd-608
Size:	72*72
Theory:	Temperature Controller
Usage:	Industrial

Product Description

Temperature controller
On/off
PID control
Temperature meter are dual row 3-LED display
Input: CU50; PT100; K; E; J; T

XMT*608 series intelligent temperature controller, is double row 3-LED display and include on/off, PID control, including with parameter of self-setting function. This temperature meter respectively display temperature measurement value (PV) and temperature set value (SV) under normal mode; When it is time temperature control, respectively display temperature measurement value (PV) and running time count down (SV), and also provide kinds of time control method selection; The controller can input kinds of signal which are used interchangeably, it adopt ON/OFFP=0PID control, allowing an easy parameter setting and convenient inputting, is widely used over temperature automatic control systems of machinerychemicalceramicslight industrialmetallurgypetrifaction and heat treatment and so on.

Main technical Indexes
1, Measurement deviation: ± 0.5F· S± 1, Cold end compensating deviation± 1C
2, Input(can be selected): CU50(-50~150), PT100(-80~600), K(-30~999),
E(-30~700), J(-30~900), T(199~400)
3, Relay output contact capacity: AC220V 7A(resistance load)
Period 2~120s can be adjusted.
4, Drivng solid relay signal output: Driving electric current 15m A voltage >9V,
Period is 2S
5, Power: AC85V~242V, 50/60Hz
6, Work environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong electric radiation.


Model sense
                 XMT(    )-6   (    )     8     (   )
                        1          2     3     4        5
1:External size and Installation hole(mm)
Empty   160×80×90    152×76         A   96×96×90   92×92
D   72×72×90     68×68         E    48×96×90   44×92
F   96×48×90    92×44          G    48×48×100   44×44
S   80×160×90   76×152      B    60×120×90   56×116
C   80×120×35   wall set installation
2. Operation display method:'6': 3-key gentel push-switch setting, double row digital display, have PID adjustment
3. An additional alarm:
Blank or '0': indicates no alarm;'1': High limit touch alarm;'2': low limit touch alarm
4. Input signal classification: '8' : Input signal can interchange free
5. Suffix:  None: relay output           G: solid state relay output


Code setting sheet


Series		Code	Name	Setting range	Remark	Ex-Factory
First                    Menu	0	-	Appointed data	Determined by and	Press∧or∨for 3 second and set the temperature setting value  you need	-
	1	AL	High/Low-limit  alarm	Determined by and	-	Random
	2	SC	Measurement deviation	-20.0~20.0	Measuring value can be modified through increasing or decreasing this data.	0
	3	P	Proportion time	0~99.9~200	When the P↑,the proportion and differential function↓;If the P↓,the proportion and  differential function↑ When P=0,the meter is ON/OFF control.	15.0
	4	I	Calculus time	0~999	It's used to adjust static difference. To increse it,the static difference will be reduced, but if it is too high, the static difference will drift instability.	240
	5	d	Differential time	0~200		30
	6	t	Control period	2~120S	When it leaves factory, SSR is 2s; Relay is 20s.  When P=0, it makes no sense.	20
	7	Hy	Main control by drop in level	0.1~50.0	It only controls at ON/OFF	1.0
	8	At	Parameter setting itself	/	OFF_shut itself function  ; ON_open itself function Select ' ON'only can adjust for one time,and then turn back to 'OFF '	OFF
	9	Loc	Electronics lock	0~50	Loc=0 all the parameter can be revised   Loc=1 only the appointed data can be revised	0
Second                Menu	10	Loc	Electronics lock	0~50	idem	0
	11	Sn	Input type	-	CU50\PT100\K\E\J(\T;	K
	12	dIL	Set lower limit	dIL≤dIH	CU50(-50~150)\ PT100(-80~600)\ K(-30~999)\E(-30~700)\ J(-30~900)\T(199~400)	0
	13	dIH	Set upper limit			400
	14	PF	Filt modulus	0~50	It is the software filter constant of  measurement sampling.The constant ↑,the measurement antijamming capability↑,but the measurement speed  and system response time ↓	20
	15	COL	System function  choice	ON/OFF	ON:positive control(cooling control) OFF:reverse control(heating control)	OFF
