| Prod Model: |
XMT-612 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Xmt-612 |
| Voltage: |
AC/DC85-260V |
| Usage: |
Air Conditioner |
| Type: |
Temperature Sensor |
Product Description
Intelligent PID temperature controller, XMT612 Intelligent PID temperature controller, Intelligent temperature controller

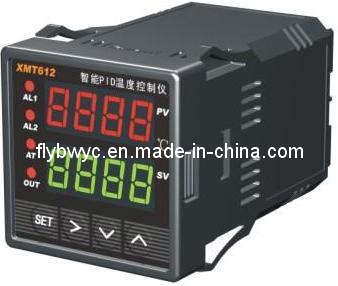

XMT612 Series Intelligent PID Temperature Controller
Input type can be RTD input (PT100, Cu50) or Thermocouple input (T, R, J, B, S, K, E and Wre-WRE25).
Time proportioning output can be relay contact output or voltage pulse output.
Two alarm outputs can perform double-limit alarm or three-position control.
This instrument has autotuning function to self adapt to different systems.
This instrument has overshoot suppress function.
Specifications
1) Power supply voltage: AC/DC85-260V(Can be customized)
2) Relay contact output rated: AC220V/3A
3) Voltage pulse output: 8V(open-circuit voltage) 40Ma(short-circuit current)
4) Temperature precision: 0.2%FS
5) Overscal or Underscal display: EEEE
6) Digit display dimension: 0.39(Red)
7) Outline Dimension: 48× 48× 75(mm)
8) Panel Cutout Dimension: 68.5× 33.5(mm)
