| Prod Model: |
XMT-JK408 |
| Size: |
160*80 |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Control Method: |
Electronic Type |
| Usage: |
Temperature Control |
Product Description
I.Summary

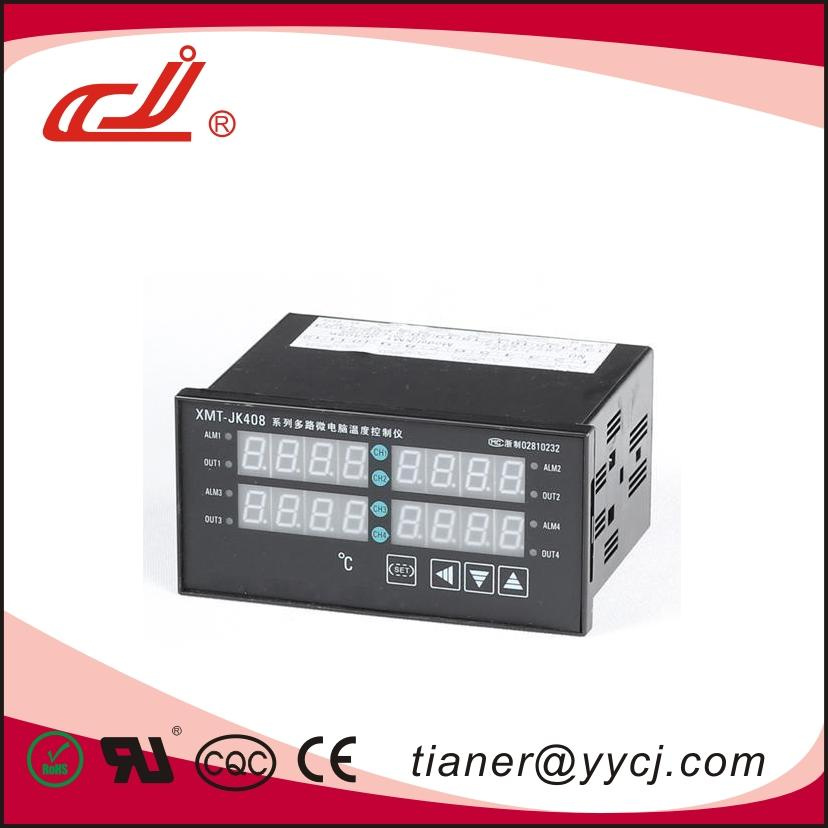

XMT*JK four-way temperature controller can connect four sensors synchronously and conveniently, diminish the instrument's volume. It has a separate auto-tune mode and PID parameter function with more precision and more reliability in whole machine control.
II.Primary technical standard
1, Input signal: CU50(-50.0~150.0C), Pt100(-19.9~600.0C), K(0~1300C),
E(0~700.0C), J(0~900.0C)
2, Accuracy: ± 0.5%F. S± 1byte
3, Output method: Relay AC220V 3A(resistance load)
4, control mode: Difference control-on/off and PID control
5, Input power: AC85~242V 50/60Hz
6, Environment Temperature: 0 to 50C, Humidity: ≤ 85%RH
7, Face Size: 160× 80× 110 mm Hole Size: 152× 76 mm
96× 96× 110 mm Hole Size: 92× 92 mm
72× 72× 110 mm Hole Size: 68× 68 mm
Code setting mode
Series | Code | Name | Setting range | Manual | Remarks |
First
Menu | 0 | LOCK | Code lock | 0~50 | LOCK=18,all the parameter can be revised | 18 |
| 1 | Sn | Input type | 0~4 | CU50\Pt100\K\E\J | K |
|
2* |
ALP |
Alarm define |
0~6 | 0:no alarm\1:upper limit alarm\2:low limit alarm\3:upper warp alarm\4:low warp alarm\
5:between besides alarm\
6:between inside alarm |
1 |
| 3 | t | Output cycle | 0~120 S | relay control action cycle setting | 10 S |
| 4 | dp | display accuracy | 0~1 | 1: have radix point,
0: have not radix point | 0 |
| 5 | P-SH | Upper limit | P-SL~full range | this parameter resreict enactment
value's upper | according request |
|
6 |
P-SL |
lower limit | Range jumping-off ~P-SH | this parameter resreict enactment
value's low | according request |
|
7 |
OPB | Assistant output method |
0~2 | 0:no Assistant output;
1:RS485 communication
2:Mini pinter |
0 |
| 8 | Add | address | 1~64
(1~9999) | Meter's NO
(in minitype as print times) | 1 |
| 9 | bt | baud rate | __ | 0:1200; 1:2400;
3:4800; 4:9600 | 9600
9600 |
|
Second
Menu |
10 | SP+N(1~4) | N channels control setting | Range by P-SL\P-SH decide |
Control value setting |
default
|
|
11 |
AL+N | Alarm value setting | Range by P-SL\P-SH decide |
Output mode decide by 'AL-P' |
default |
| 12 | SC+N | Sensor error amendment | ±20.0 | The sensor have deviation
can use item to revisal | 0 |
|
13 |
P+N |
Proportion modulus |
0~100 | When the P increase, the proportion function decrease.
When P=0,the meter
is ON/OFF control |
8 |
|
14 |
I+N |
Integral time |
0~3000 | Set integral time so as to unchain residual. Deflection caused by proportion control. To increase it, the static difference will be reduced, but when it is too high ,the static difference will drift instability. |
240 |
|
15 |
d+N |
differential time |
0~200S | Set the differential time,so as to avoid. The output's fluctuation,Improve the control's stability. |
30 |
|
16 |
Hy+N | Main control by
drop in level |
0.1~50.0 |
- |
1.0 |
| 17* | At+N | Setting itself | 0~1 | 0:close setting itself function 1:open setting inself function | 0 |
