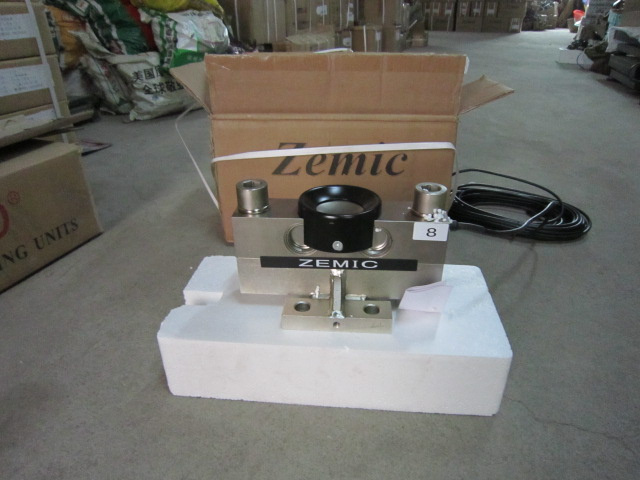

Weighbridge Sensor

Name: Weighbridge Sensor
Brand: all-electronics-online.com
SKU: 782382705
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Hm9b 30ton 12m cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

DHM9C3-30t digital weighing load cell adopts the latest weighing concept. There exists independent A/D converter and digital signal output port in the load cell. It solves the problem of low voltage signal during long-distance transmission. Each digital load cell before leaving factory will be done digital compensations to capacity output, hysteresis, creep, nonlinearity, etc.
A/D Module Resolution 6000
Rated Capacities 10, 15, 20, 25, 30, 40t
Rated Output 20000/25000/30000/40000
Digital Refurbishing Frequency 50times/second
Communication BPS 9600BPS
Combined Error ± 0.02%F. S
Creep(30min) ± 0.02%F. S
Temperature Effect ± 0.02%F. S/10
Operating temperature range -30~+70
Zero Balance ± 0.1%F. S
Safe Overload 150% F. S
Protection Class IP68
Recommended Excitation 9~12V DC
Maximum Excitation 20V DC
Maximum Transmitting Distance 1200m

Fujian KEDA Weighing Apparatus Co., Ltd has been a leading Chinese manufacturer in the field of industrial weighing equipments for over ten years. Located in China Brands City-Jinjiang, Quanzhou, Fujian Province, near to international Xiament seaport, we specializing in the designing and manufacturing of full-steel products---Truck Scale/Weighbrige, Platform Scale, Floor Scale, Animal Scale, etc.

Through integrateing R&D, manufacturing, global marketing, sales and good service, the company has become a competitive weighing equipments manufacturer in the global market. Our main export market includes Africa, Asia countries, Middle East, South America etc.

Since its foundation, KEDA keeps carrying out the tenet of "Quality First, Service Foremost". The company has established a complete quality management system and attained ISO9001 certificate, CMC(China Metrology Certificate), CE ceritificate, SGS Report, different product patents etc.

The company's main products include electronic truck scales/weighbridge, digital truck scales and floor scales produced in the first factory, ferroconcrete truck scales produced in the second factory and feeder machines, belt scales, packaging machines, weighing modules, platform scales and balance scales produced in the third factory. Moreover, we continue to introduce new technology to improve the company.

If you have any weighing needs, contact us! We stick to provide you with the best weighing solutions! We welcome domestic and overseas customers and distributors to visit our company!
