| Prod Model: |
OCT800-D |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multichannel |
| Model: |
Geodesic Type |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Brand: |
Oner |
| Certification: |
Ce, FCC, RoHS |
Product Description
Motorcycle GPS Vehicle Tracker with tracking APP for Smartphone
ONER GPS tracker for car 4 I/O ports tracker GPS two way voice

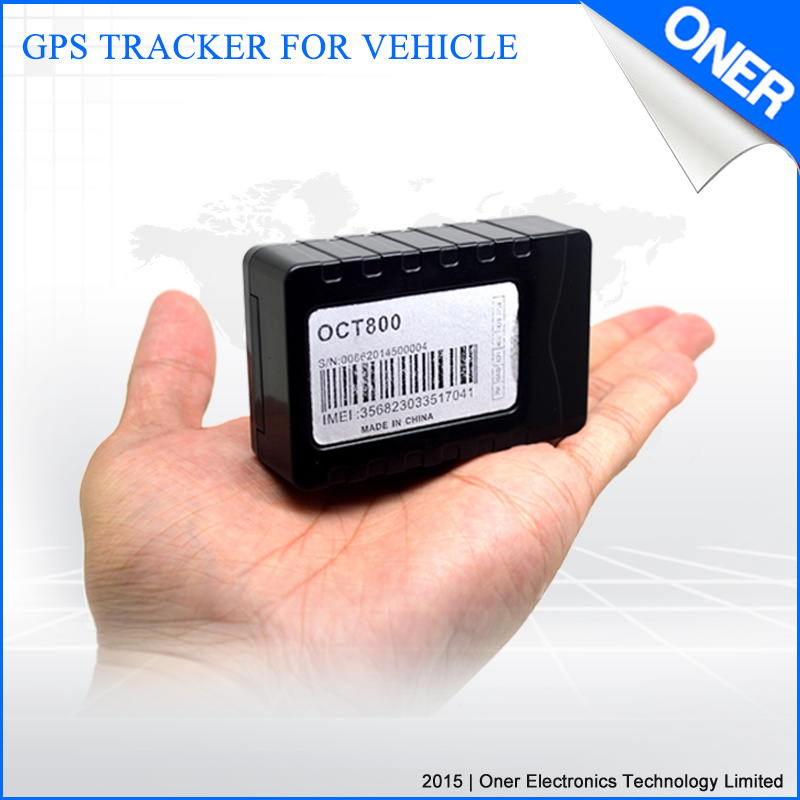

OCT800 is the newest Mini Waterproof GPS tracking device, with 4 I/O port , support to customize any feature as you want, uses the imported GPS chips and GSM module, support more function extensions like Fuel Monitoring, Voice Monotoring, Speed Limitation and etc.
This device is highly recommended to use in fleet and logistic, security, car rental company and so on.
Functions Tracking via SMS or GPRS (TCP/UDP)
Living location report
Tracking by time interval / distance
Geo-fencing contrct106ol and alarm
Speeding alert
Get detail address via SMS directly
External power cut alert
GOOGLE MAP link for location via SMS & Call
Remote engine / fuel cut
ACC detection
SOS panic button, emergency alarm
Mileage calculation report
Firmware updating OTA
LBS Tracking mode
External power status detecting
Power saving mode (option)
Fuel monitoring (option)
Data recording (SD card, option)
Specifications | Power supply | +6V - +35V / 1.5A |
| Backup Battery | 76mm x 50mm x 24mm |
| Weight | 76g |
| Operating temperature | -20° to 55° C |
| Humidity | 5% to 95% (Non-condensing) |
| Frequency | GSM 850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -159Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channels all-in-view tracking |
| Position Accuracy | 10 m, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | <1 sec., average |
| Warm start | <36 sec., average |
| Cold start | <36 sec., average |
| Altitude Limit | 18,000 m (60,000 feet) max. |
| Velocity Limit | 515 m/second (1000 knots) max. |
| Interface | 4 input and 4 output |
| LED | 2 LED lights to show working status. |
Features1. Web-based GPS tracking platformsSeveral versions for choosing, also for sales:
User can control all the vehicles in real time, include real time tracking, history play back, route setting, driver management, POI, details reports, alarm setting, etc.
Customization and design service is available for the GPS tracking software.
1) http://onersystem.com (login: oner password: 123)
2) http://www.onergps.com (login: onertest password: 1)
2. Android APP for Smart PhoneFor sending SMS commands easily when you monitor trackers via mobile.
This APP software can make your mobilephone likes a remote, you can click the button to send out the SMS command directly instead of input the complicated SMS content, tracker users don't have to worry about
fogetting the SMS control commands anymore.
Transnational tranporting between neighboring countries is very popular, but after crossing the board, uncertanties increase.
Facts you ever met:
* All info have to be gotten from driver, but not sure if it is ture;
* Driver do private jobs first rather than task;
* No control to bad driving and cause crashing;
* Lost contact with driver;
* Car and goods were stolen;
* Robbery
what's worse,You will never know what will happen after entering another country, and can not count the cost it may bring.
How to reslove transnational tranporting problem?
The point is how to keep monitoring to your car even in another country, GPS tracker OCT800-D now support dual sim, you can track your car even it is in another country, not only that, multiple tracking applications will offer more helps.Features:1. Auto switch
When car enters neighbor country, switch to another SIM automatically, make sure tracking will continue, and notification info can be sent out, car owner can know if the car is stolen to another country, and fleet owner also can know if the driver do their job according to the schedule.
2. Location history store and export (option)
Except dual SIM, SD card in the tracker can store location history and export as a report, which can be a prove of driving behavoir. vehicle status,etc.
3. Route setting and divert alert
For transnational transporting, in order to delievery the goods in time, route setting is necessary, if the car move out the route, dirvert alert will active, fleet owner can know and force to drive accordingly, it is also help in avoid doing private jobs during delievery.
4. POI
Via online tracking software, setting warehouse, custom office, etc as POI on the map, when the car go close to these place, alert active, fleet owner can know if the car go to these places safety and in time in another country.
5. Extenstion
Feature Customization is available, we can add more features you want to make sure your car safety and transnational tranport be more effective.
