Water Leak Detector Water Flood Detection Sensor (ZW104)

Name: Water Leak Detector Water Flood Detection Sensor (ZW104)
Brand: all-electronics-online.com
SKU: 819613145
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	US $ 19-33/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW104
Battery Operation:	AAA * 3PCS (Battery Life 1 Year)
Sensitivity Level:	0.8mm Perceived Level
Range:	Min 30m Line of Sight
Sensing Type:	White
Frequency:	868.42MHz/865.2MHz/869.0MHz/908.4MHz/921.4MHz
Dimensions(LWH):	784216mm
Installation Type:	Wall-Mounted Type
Operating Temp:	0~40 Degrees
Contact:	Contactless
Production Process:	Injection
Certification:	RoHS, SGS, Ce

Product Description

Introduction
Water Leak Detector Water Flood Detection Sensor(ZW104)

Technical data Installation

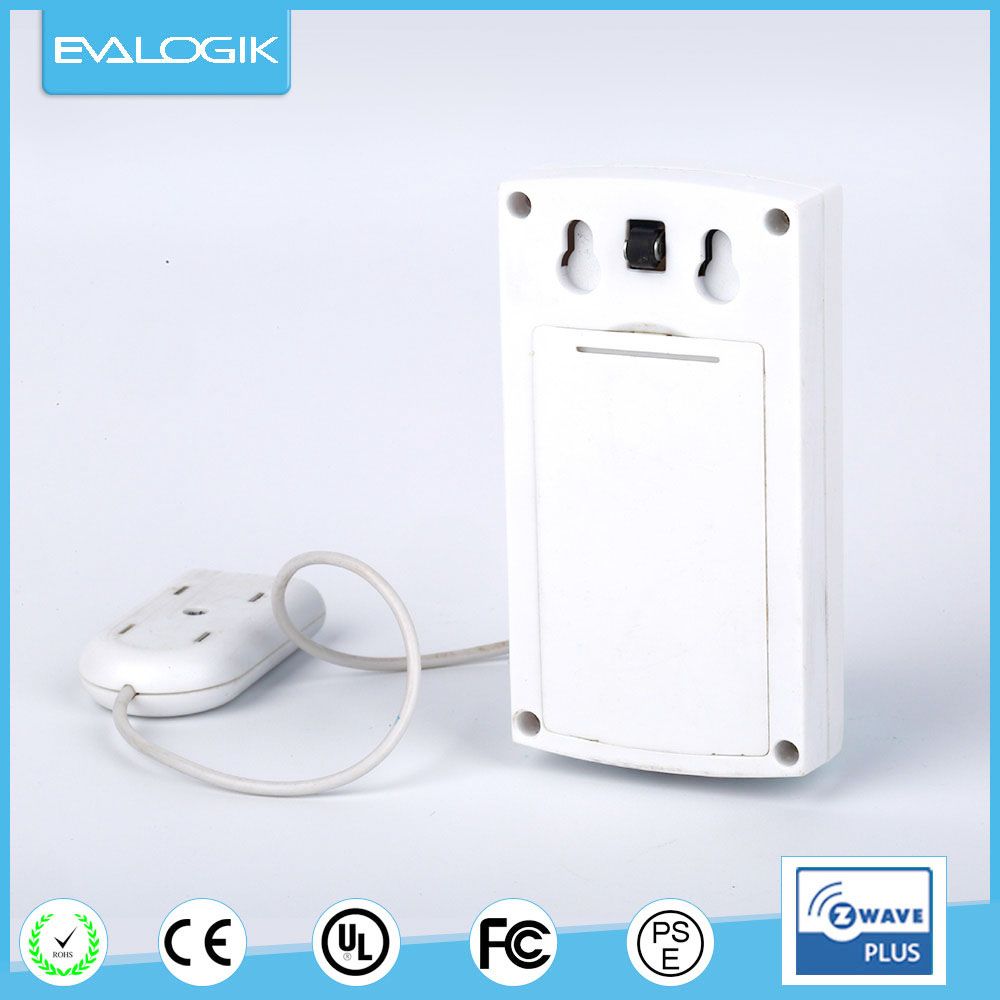

This device is an accessory of the Z-Wave system and enable alert/monitor system when water leak detected , easy installation, works with z-wave controller. ZW104 is a wireless, battery powered sensor, its two parts the sensor's body and a probe connected.

Technical data

Battery Operation	1.5V AAA * 3pcs (battery life 1 year)
Range	Min 30m line fo sight
Sensitivity level sensor	0.8mm perceived level
Operating temp	0~40 ºC
Working Voltage	4.5V
Net Weight	50g
Dimensions(LWH)	784216mm
Frequency	868.4MHz/865.2MHz/869.2MHz/908.4MHz/921.4MHz

Installation

1. First, add ZW104 to ZE200 controller or others, it must be in range of the controller, because the procedure of add to the ZE200 requires direct communication with the controller.
2. Set controller to "Add" mode, quickly pressing learn switch three times (the button is also the anti-packing switch).

3. After correct "Add" it to ZE200 controller it will be signaled by ZE200.
4. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW104 from your controller. Press the learn switch of ZW104 for 1 second at least &release to be excluded.
5.Use double EVA or screws to fix ZW104 on the Door/Window two sides, pls. be note correction position of the sensor and the magnet (dot-to-dot).
6.Re-setting ZW104: Remove the battery, touch the senor's body with magnet,
re-install battery, trigger ZW104 one time, and reset will be confirmed by LED blink.

Shipping &Packing

NIE-TECH Co., Ltd founded in 2009, is a Hi-tech manufacturer that specializes in smart-home products' design, development and manufacture.

We own the experienced and innovative R&D team, and has a full range of successful Z-Wave solution for both home and industrial applications. Our wide range of wireless technologies, which earned us great confidence from our customers for their reliability and range performance, help our customers turn their innovative ideas into successful products.

Our ZE300 Evalogik Gateway is the nerve centre of smart home. It allows you to gain access to and control different appliances and devices installed in your home by using your smartphone. ZE300 Evalogik gateway that can be remotely controlled range from lightings, sensors, curtain motors, security cameras and energy control units. All you need to do is configure the Gateway with your home's Wi-Fi network and install the EVALOGIK APP on your smartphone. You can then add and connect to all appliances compatible with the EVALOGIK gateway.

With the aim of "quality first, customer first", our QC team ensures the products are qualified before shipping. Low-cost, short leading time, high quality, and our rigorous working attitude, all of these are helping us to get more orders.

Anyhow, looking forward to cooperating with you as biz partner in any terms.
