| Prod Model: |
CVR-3000VA |
| Color: |
Customized Design |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Frequency: |
Low Frequency |
| Usage: |
Relay Type |
Product Description
Product Deascription

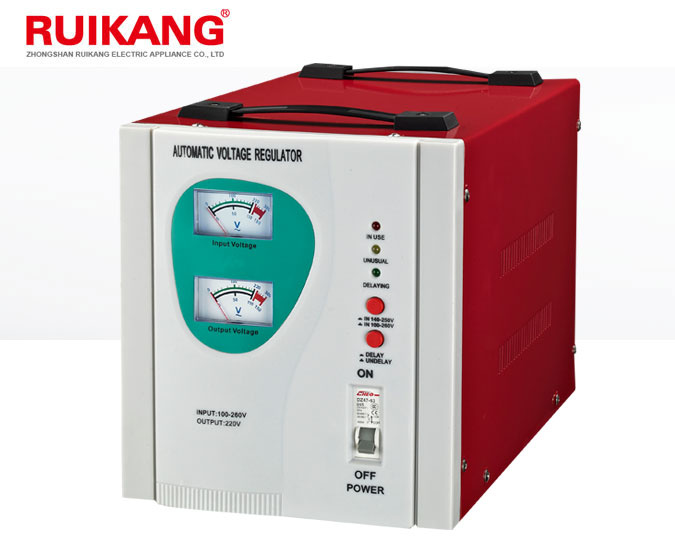

Relay Type Automatic Voltage Regulator
Meter Display: Input & Output Voltage
EI Transformer/ Toroidal Transformer
LED Indicators: IN USE, UNUSUAL & DELAYING
High Voltage/ Low Voltage Protection
High Temperature (Customized Option)
Color: Customized Design
Output Precision: ±10%
Input: 160-260V AC
Output: 220V AC/ 110V AC
Frequency: 50/ 60 HZ
Delaying Time: 3S/180S
Power: 500VA/1000VA/1500VA/2000VA/3000VA/5000A
| Model | 500VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA |
| Capacity | 80%actual power when input voltage reach to 190V |
| Technology | Relay type.Aluminium coil.EI transformer/Toroidal transformer |
| Phase | Single phase (one transformer controlled) |
| Double display(Meter or Digital) | Input voltage &output voltage |
| Input voltage Range | 160-260V
(3relaies) | 100-260V
(5relaies) | 100-260V
(5relaies) | 100-260V
(5relaies) | 140-260V
(4relaies) | 140-260V
(4relaies) |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | AC-220±%V/AC110V±15%V |
| High/Low Voltage Protection | √ | √ | √ | √ | √ | √ |
| Overload Protection | | √ | √ | √ | √ | √ |
| Operating Temperature | 0-40ºC |
| Shorage Temperature | -15ºC-45ºC |
| Operating Relative Humidity | 10%RH-102%RH.non-condensing |
Physical | Pcs/Carton | 8 | 4 | 4 | 4 | 1 | 1 |
| Packing size(cm) | 50*30*34 | 69*29.5*205 | 69*29.5*20.5 | 69*29.5*20.5 | 42.5*26.8*32 | 42.5*26.8*32 |
| G.W.(KGS) | 22 | 20 | 22 | 25 | 12 | 17 |
| N.W.(KGS) | 19 | 18 | 21 | 23 | 11 | 16 |
2. Applications
Voltage stabilizer is used to automatically adjust the output voltage of the power supply circuit or power supply equipment. It can be widely used in places require stable power supply voltage, such as industrial and mining enterprise, oil, railways, construction sites, schools, hospitals, telecommunications, hotels, research and other departments of computer, precision machine tools, computer tomography (CT), precision instruments, test equipment, elevator lighting, imported equipment and production lines, etc. Also adapted to electrical equipment with large load fluctuations and end users of those supply voltage is too low or too high and with large fluctuations in low voltage distribution network, especially for all of power places those have high requirements on the grid voltage waveform. Compensation power regulator can be accessed by fire, water, small generators.
3. Company Information
4. Best Services:
We have a very excellent and professional sales team.All your inquiries will be replied within 24 hours. We provide One Year Warranty for our products.
FAQ
Q 1. What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.
Q 2. What's the loading port?
A. Usually we prefer xiaolan port (zhongshan) for delivery.
Q 3. How's the delivery time?
A. Normally it will take about 25-30 days for production.
Q 4. We want to know about production capacity.
A. Our average capacity is 10000 pcs per month.
Q 5. May I know the standard of package?
A. We usually use carton for small units, and use strong wooden case for floor standing big units. Each unit is well protected by color box.
Q 7. Would you accept to use our logo?
A. If you have good quantity, it is absolutely no problem to do OEM.
Q 8. What is your market?
A. Our products are popular export to Africa, South Asia, Middle East, Europe, and so on. Most are our regular customers and some are under developing. Surely we hope you can join us and make mutual benefits from our cooperation.
Q9. What kind of certificate you have?
A. We have CE, SONCAP and testing report for all our products.
Q10. Could you offer Form A or C/O?
A. Absolutely it is not a problem. We can prepare relative documents to foreign affairs office or other office to apply for the certificate.
Established from Year 1995, we strictly mange with ISO 9001: 2008 standard, we have built up the professional teams of R&D, technology, production, supply and marketing with our target of building a centennial enterprise and global brand. We are specialized in all kinds of power supply products contain Automatic Voltage Regulator/ Stabilizer, UPS, Inverter, Step up & down Transformer and Battery Charger with full sets of auto production equipments and 300 workers in 20, 000 square meters of factory. Also we insist on manufacturing electronic component like hardware, plastic parts, circuit board, coil, plug and socket by ourselves to ensure high quality and competitive price for global valued customers.
Persisting to the business concept of "Stalwartness, Innovation, Developing, Entrepreneurship" and business principle of "Customer First, Quality First and Service First", we offer OEM and ODM service for all of our customers, and we will deeply devote to our role as a responsible corporate citizen in China, and around the whole world.
