Prod Model: |
gps 105 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Hot New Products for 2015 |
Band: |
850/900/1, 800/1, 900MHz |
Network: |
GSM/GPRS |
Dimension: |
92*71*26mm |
GPS Sensitivity: |
-159dBm |
GPS Accuracy: |
5m |
Time To First Fix Cold Status: |
Time to First Fix Cold Status 45s |
Tracking Way: |
SMS, APP, Web Server |
Warranty: |
12 Month |
Mode No.: |
Module Car Tracking System GPS105A/B |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
Mixed Type |
Port Number: |
Multiplex Multi-purpose Channel |
Carrier Frequency: |
Dual-Frequency |
Chip: |
SiRF |
Certification: |
ISO/TS16949 |
Model: |
GPS105b |
Screen Size: |
No Screen |
Brand: |
Coban / Baanool |
Product Description

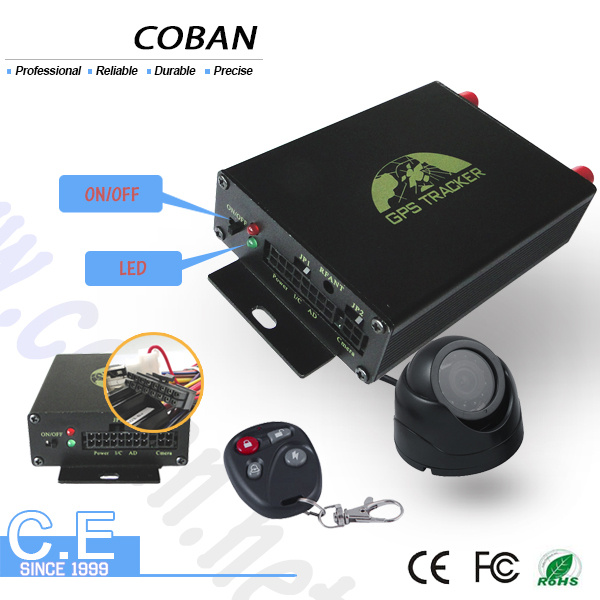

Car GPS Vehicle GPS Tracker GPS105 Dual SIM Card Vehicle Speed Limited Function
Model: GPS105
Description:The product fully supports the functions of SMS/GPRS/Internet data transmission, to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management
It is based on GSM/GPRS (850/900/1, 800/1, 900MHz) wireless telecommunication internet and GPS satellite global position system, track by multiple tracking ways:
SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
Get absolute street address by SMS
Free PC based tracking application
Optional web server, take photo via camera by SMS message and temperature monitoring
Basic functions:*Tracking by GPS and GSM base station both even in building, underground and garage
*Real time tracking via SMS or GPRS (TCP/UDP)
*Track on demand by calling or SMS command
*Show location directly on mobile phone with HTTP Google map link
*Track by time interval
*Five authorized phone number to protect tracker information and assets
*Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*SOS button alarm
*Geo fencing alarm
*Over-speed alarm
*Engine-cut and restore alarm by SMS GPRS
*Door alarm
*Movement alert
*Free tracking GPRS software send you in CD package
*Compatible with car original anti-theft system
*Fuel alarm: Once the fuel less 8% in 3 minutes, it will send you a alarm.
![](/proimages/44f3j00iYAaQdoPstqf/vehicle-gps-tracker-gps105-dual-sim-card-vehicle-speed-limited-function.jpg)

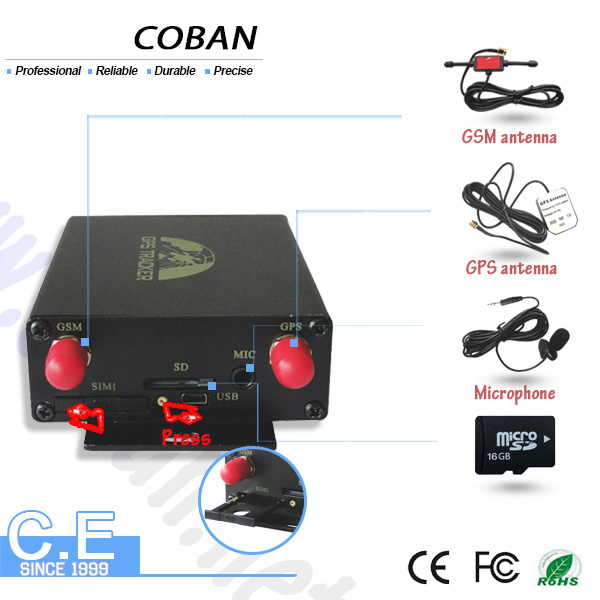

Optional function:
*vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
Applying directions:*Vehicle fleet/logistics/vehicle rental (12 to 24V)
Technology parameter:
*Dimension: 85mm*71mm*26mm
*GPS chip: SIRF3chip
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time to first fix Cold status 45s, Warm status 35s, Hot status: 1s
*GSM Network frenquecy: 850/900/1800/1900MHz
Specifications
Content | Specifications |
Size | 92*71*26mm |
Weight | 120g |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
GPS start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage of car power system | 12 V/24V |
Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
Storage Temp | -40°C to +85°C |
Operation temp | -20°C to +65°C |
humidity | 5%--95% non-condensing |
Real time track on cell phone by APP
![](/proimages/44f3j00bfwQtGoajTkR/vehicle-gps-tracker-gps105-dual-sim-card-vehicle-speed-limited-function.jpg)
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
