| Prod Model: |
CAT5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Single Strand Bare Solid Copper Wire, PE Insulatio |
| Flame Resistance Level: |
Cmx. Cm, MP, Cmg, Mpg, Cmr, Mpr |
| Conductor Od: |
0.48mm |
| Rated Temperature: |
75 Degrees Centigrade |
| Standards: |
UL444, Tia/Eia568b, ISO/IEC11801 |
| 1.0`100.0MHz Impedance(Ohms): |
100+/-15 |
| 1.0~350.0MHz Delay Skew(Ns/100m): |
|
| 20c Conductor D.C, Resistance(Ohms/Km): |
|
| Unbalance Of Pair(%): |
|
| Flame Resistant Type: |
Cmx. Cm, MP, Cmg, Mpg, Cmr, Mpr |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Cat5e |
| Model: |
Hsyv-5e |
| Brand: |
Simpact/ Skton/ Taikeyongxing/ OEM |
Product Description

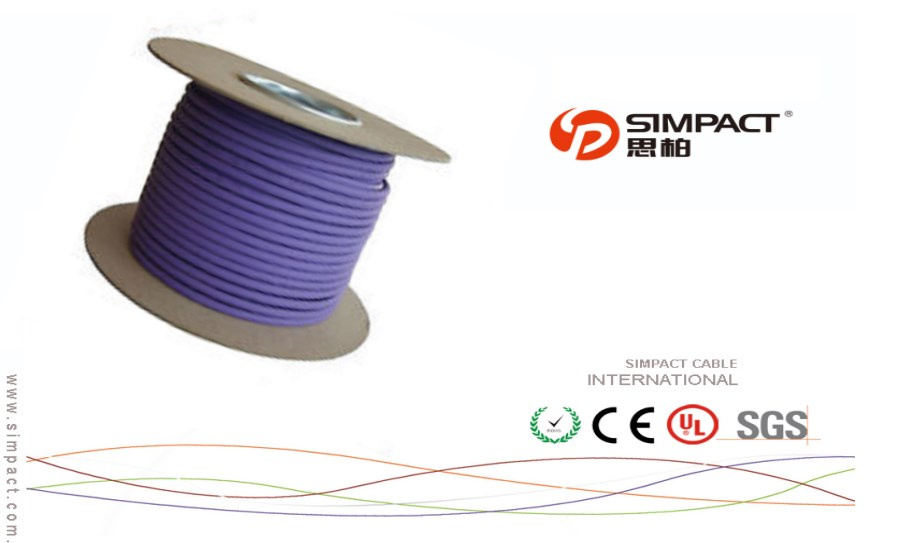

Structure: Single strand bare solid copper wire, PE insulation, two insulated conductors twisted to be one pair
Applicable to network for audio and (ISDN), 10Base-T, 100 Base-T4, 100Base-TX, 100VG-Any LAN, 155Mbps ATM, 622Mbps ATM TPDDI Fast speed and Extreme Networks.
Electrical Characteristics:
| Frequency | RL | SRL | ATTEN | NEXT | PSNEXT | ELFEXT | PSELFEXT | DELAY |
| (MHZ) | (db) | (db) | (db/100m) | (db/100m) | (db/100m) | (db/100m) | (db/100m) | (ns/105700m) |
| 0.772 | 16.7 | 25.2 | 2.0 | 68.9 | 67.5 | 68.0 | 69.2 | 560 |
| 1 | 18 | 28.0 | 2.0 | 66.2 | 64.9 | 65.4 | 65.4 | 554 |
| 4 | 19.8 | 28.0 | 4.0 | 57.9 | 57.2 | 53.7 | 54.8 | 545 |
| 8 | 20.8 | 27 | 5.2 | 56.2 | 55.0 | 49.0 | 50.3 | 544 |
| 10 | 22 | 25.0 | 6.2 | 51.9 | 48.3 | 44.7 | 44.7 | 542 |
| 16 | 22 | 26.0 | 7.9 | 49.5 | 46.3 | 42.5 | 42.5 | 540 |
| 20 | 22 | 26.2 | 8.6 | 47.2 | 44.5 | 40.2 | 39.8 | 539 |
| 25 | 20.2 | 26.5 | 9.7 | 45.9 | 42.9 | 37.3 | 37.3 | 536 |
| 31.3 | 19.6 | 25.8 | 16.5 | 41.2 | 38.2 | 30.9 | 30.9 | 536 |
| 62.5 | 18 | 25.7 | 21.2 | 38.4 | 34.8 | 25.6 | 25.6 | 535 |
| 100 | 17 | 22.4 | 18.7 | 32.8 | 28.6 | 22.6 | 23.7 | 533 |
