Prod Model: |
Wireless Loadcell |
Capacity: |
1~200t |
Application: |
Hook Crane Weighing/Proof Load Testing |
Accuracy: |
0.05% of Capacity |
Date Receiver: |
100m |
Output: |
Digital Sensor |
Stabilization Time: |
5s |
Safety Load: |
125% of Full Load |
Ultimate Load: |
400% Max Measuring Range |
Loadcell Material: |
Aluminum Alloy |
Service Life Of Battery: |
90hours |
Pattern: |
Handheld |
Out-Wire: |
Wireless |
Material: |
Aluminum |
Certification: |
Calibration Certificate |
Product Description

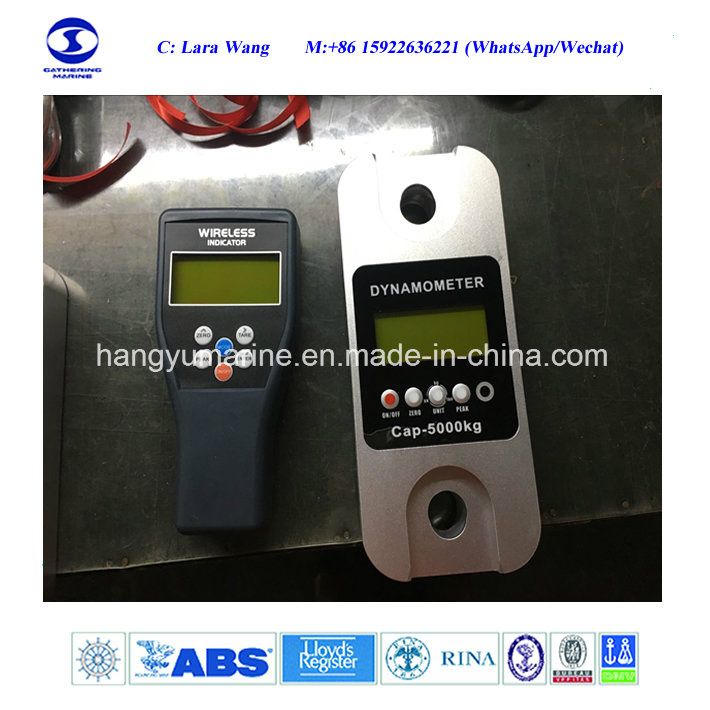

Under Hook Crane Weighing Wireless LoadcellFeatures:1. Rugged construction, fresh integrated sensor design
2. Accuracy: 0.05% of capacity
3. All fuctions and units are clearly display on the LCD (with backlighting),
4. LCD digital display 1 inch high for easy distant viewing.
5. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
6. Long battery life on 3 standard "LR6(AA)"size alkaline batteries.
7. All commonly used internationally recognized units are available: Kg/t/lb/N/kN
8. Infrared Remote control easier to calibration(with password)
9. Infrared Remote control with many fuctions: "ZERO", "TARE", "CLEAR",
"PEAK", "ACCUMULATE", "HOLD", "Unit Change", "Voltage Check"and "Power OFF"
10. Local mechanical keys: "ON/OFF", "ZERO", "PEAK" and "Unit Change".
11. Low battery warnning.

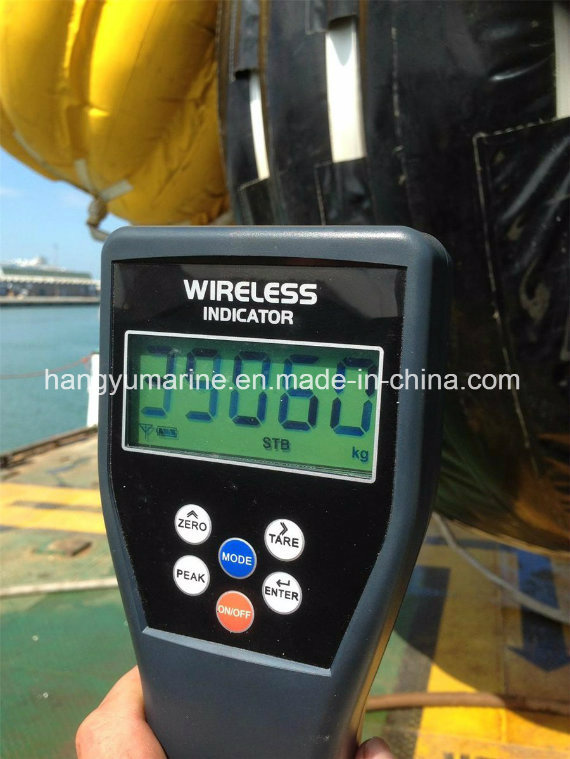

12. RF wireless palm indicator
13. Wireless data receiver receives 100M

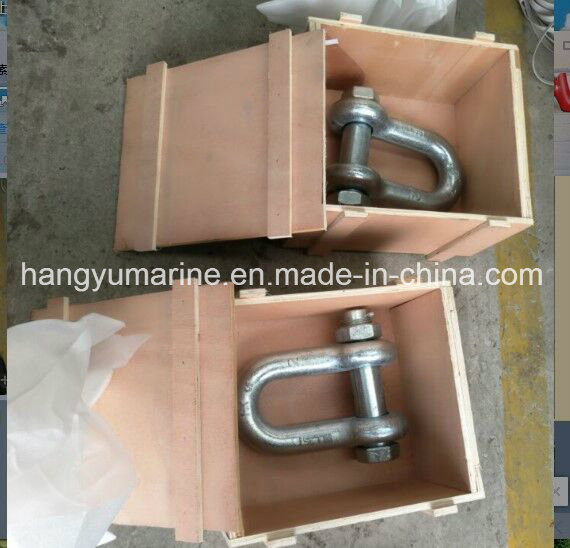

14. Opention: Shackle
![](/proimages/44f3j00EzIaiYTteQbG/under-hook-crane-weighing-wireless-loadcell-with-lcd-display.jpg)
![](/proimages/44f3j00QzHTlraRNtbU/under-hook-crane-weighing-wireless-loadcell-with-lcd-display.jpg)
Parameter:1. Body Display 25mm (1") 5digits LCD with backlight
2. Indicator Display 25mm (1") 5digits LCD with backlight
3. Power on zero range 20% F. S.
4. Manual Zero Range 4% F. S.
5. Tare Range 20% F. S.
6. Stable Time ≤ 10 seconds
7. Overload Indication 100% F. S. + 9e
8. Max. Safety Load 125% F. S.
9. Ultimate Load 400% F. S.
10. Battery Life ≥ 50 hours
11. Battery Type: "LR6(AA)"size alkaline batteries. 1.5Vx3
12. Indicator Battery "LR6(AA)"size alkaline batteries. 1.5Vx4
13. Operating Temp. - 20° C ~ + 50° C
14. Operating Humidity ≤ 85% RH under 20° C
15. Remote controller distance: Min 15m
Types For Choice:Model | Cap. | Div. | A | B | C | D | φ | H | Material |
(mm) |
GR-WL-01 | 1t | 0.5kg | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
GR-WL-02 | 2t | 1kg | 245 | 116 | 37 | 190 | 43 | 335 | Aluminum |
GR-WL-03 | 3t | 1kg | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
GR-WL-05 | 5t | 2kg | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
GR-WL-10 | 10t | 5kg | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
GR-WL-20 | 20t | 10kg | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
GR-WL-30 | 30 | 10kg | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
GR-WL-50 | 50t | 20kg | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
GR-WL-100 | 100t | 50kg | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
GR-WL-200 | 200t | 100kg | 725 | 265 | 183 | 440 | 280 | 1380 | Alloy Steel |

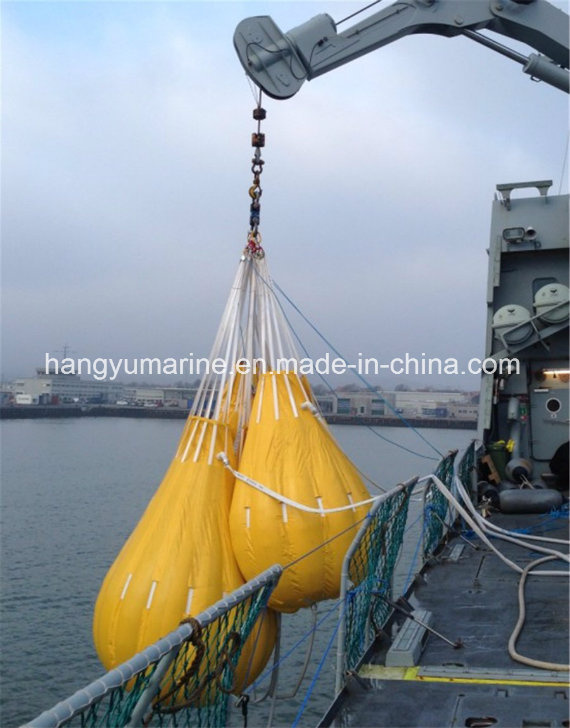

Loading Test Water Bag for your reference
![](/proimages/44f3j00EgLQVhTlDakU/under-hook-crane-weighing-wireless-loadcell-with-lcd-display.jpg)
For more details, please contact us anytime!
