| Prod Model: |
UL-300K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
220vac |
| Accuracy: |
0.25%; 0.5% |
| Output: |
4-20mA; RS485; Hart |
| Delivery Time: |
1 to 2 Weeks |
| Kind: |
Liquid Level Transmitter |
| Structure: |
Remote Type |
| Range: |
5 to 45m |
| Principle: |
Ultrasonic Transit-Time |
Product Description

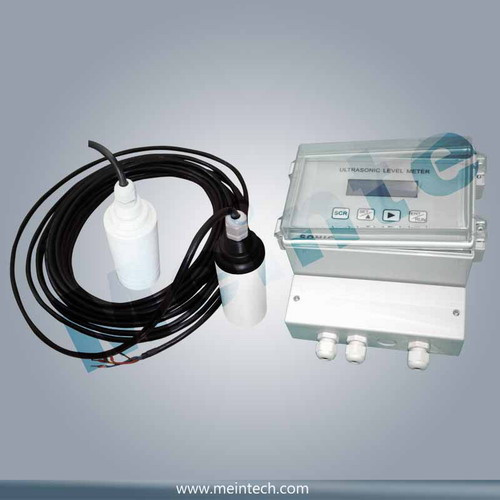

UL-300K series Ultrasonic Level Meter is remotetype non contact level transmetter, measured range is from 3m to 45m, Output Is 4-20mA or RS485 or HART, accuracy is 0.25%, resolution is 1mm, power supply is 220VAC, High performance with Resonable price.
Highlights- Prominent anti-vibration performance
- Adopts SMD technology to enhance the performance and reliability of our instrument
- Auto turn tune and temperature compensation function
- Adopts advanced detect technology and rich software suit for various condition
- Adopts advanced wave shaping technology to enhance instrument accuracy
- Anti-interference of echo to sure measured data reality
- Adopts 16 Digits D/A converter to enhance current accuracy and resolution
- Reprogramming relay output, high accuracy4-20mA and RS-485 output
- The sensor adopt PTFE material suit for various condition
- Digital communication output, Free maintenance
Specification:- Measured range: 5m; 10; 15; 20 ;25;40m
- Accuracy: 0.25%; 0.5%
- Resolution: 1mm
- Shadow: 25-60cm
- Temperature: -20 Deg C to +65Deg C
- Output signal: 4-20mA; RS-485;HART
- Control method: Four relays
- Power supply: 220VAC; 110VAC
- Protection class IP67
- Display: Molded light 16X2 LCD display
- Display method: Level, Relay working state and signal intensity. etc
- Enclosure material: ABS; PTFE
Application:- Monitoring the level of liquid or granules
- Control of object distance & proximity
- Control of anti-collision
- Control on sag belts
- Mounting and detection of parts or persons
Beijing Huamai new technology Co., Ltd. Is a professional designer & manufacturer of instrumentation and automation meter since 1995, also a "high-tech enterprises" located in state-level industrial development zones, Certificate No: 0130273F. The company has developed the first generation of vortex flow meter, Engineer Han is the creator of this type flow meter. Under the leadership of Engineer Han (president), the company towards to bring products to promote application of engineering and technology mutual development.
Our Flow Meter Development History:
Release thermal-vortex flow meter in early of 70s, Release stress, large-diameter plug-in vortex flow meter in 80s, Release small-caliber, high temperature, corrosion-resistant, as well as two-wake vortex flow meter in 90s, Release Down hole ESP instrument in 2000. In recent years, due to the use of the latest microprocessor technology and modern digital signal processing, so that the vortex detection with a variety of intelligent functions which standard for the trend of vortex flow meter.
Main products are
Vortex Flow Meter, Vortex & Swirl Flowmeter;
Ultrasonic Flow Meter, Ultrasonic Level Meter,
Digital Pressure Gauge, Pressure Transmitter,
Intelligent Pressure Switch; Digital Flow Meter,
Downhole (Borehole ) Flow Meter, ESP downhole sensor and so on.
HMT. VFM series vortex flow meter due to its high quality and is widely used in aerospace, petrochemical, oil, metallurgy, mining, electrical, mechanical, construction, railways, environmental protection, gas, heat, running water, the flow distribution network measurement and automation. It is nominated the solo flow meter manufacturer by Tsinghua Tongfang Group for many years.
Our Products are widely application in Beijing and a number of national key projects, main projects are in China Central Television, the Central Party School, the People's Liberation Army 301 General Hospital, Shen hai heating network, heating network in Changchun, Beian power plant in Heilongjiang province, Power plant in Xiangfan, Hubei Province, Liaohe Oilfield, Daqing Oil Field, CNOOC (China national offshore oil corp) and so on, more than 100 units and projects.
