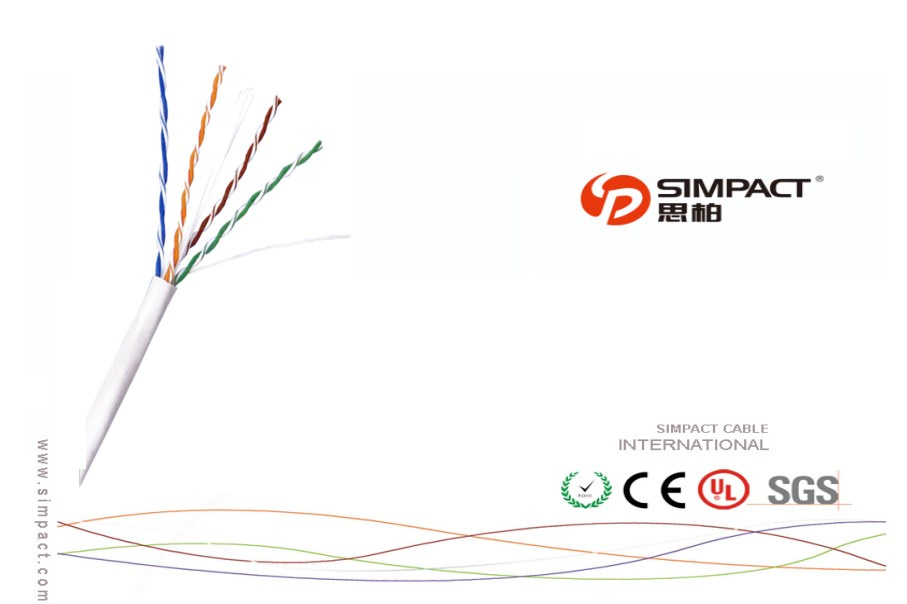

UL/CE/ RoHS/ISO Approved CAT6 UTP Cable

Name: UL/CE/ RoHS/ISO Approved CAT6 UTP Cable
Brand: all-electronics-online.com
SKU: 677200385
Availability: InStock
Rating: 4.3 (127 reviews)

Price:	US $ 56-70/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSYV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor Od:	0.58mm
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 6
Certification:	UL
Model:	Hsyv
Brand:	Simpact / OEM

Product Description

CAT6 UTP Cable Features:
1). Conductor: Pure copper without oxyzen
2). Passed MEA testing
3). Passed Fluke testing

Packing: 2boxes/carton, carton dimension 46.4*43.5*43.7cm
Words to paint on: CABLEUTPTIA/EIA-568B 23AWG/4PRS S-003641 VERIFIED CATEGORY6 100001M 2007.09.01 ISO9001: 2000
Structure: Single strand bare copper wire, PE insulation, two insulated conductors twisted to be one pair, aluminum-platinum shield plus mesh shield, outside PE jacket is protected with PE or low smoke, halogen free jacket, with rip cord selectable.
Standard: UL accepted TIA/EIA 568A/EIA 568B ISO/IEC 11801
Rated temperature: 60 degree, 75 degree.
Flame resistance level: CMX, CM, MP, CMG, MPG, CMR, MPR
Applicable to network for audio and (ISDN), 10Base-T, 100Base-T4; 100Base-TX; 100VG-AnyLAN; 155Mbps ATM; 622Mbps ATMTPDDI Fast speed and Extreme Networks.

Performance Parameters
Frequency MHz Return Loss dB Attenuation dB/100m Next dB/100m Elfext dB/100m PS next dB/100m PS Elfext dB/100
1 28.3 1.7 82.3 74.4 80.3 71.7
16 35.1 7.2 60.1 52.3 58.4 48.8
100 22.2 19.1 48.0 33.4 47.0 30.2
250 23.6 30.8 45.0 21.0 41.7 20.0
Tested by China National Accreditation board for Laboratories--CNAL

Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.

Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.

Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.

Work Simpact, the better!
