Zhejiang Wrlong High Temperature Wire & Cable Co., Ltd. >> UL 3135 Silicone Rubber Insualted Wire

UL 3135 Silicone Rubber Insualted Wire

UL 3135 Silicone Rubber Insualted Wire
Price: US $ 0.05-2/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: L/C,T/T
Prod Model: AGR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
UL Certificate: UL 3135
Insulator Material: Silicone Rubber
Type: Insulated
Conductor Type: Stranded
Application: Heating
Insulation Material: Silicone Rubber
Certification: RoHS
Conductor Material: Tinned Copper
Range Of Application: Fire Resistant
Brand: Werle

Product Description

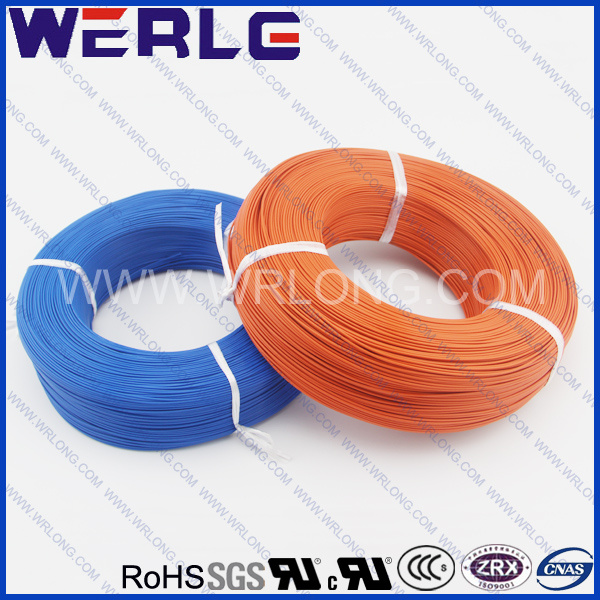

UL 3135 High temperature silicone rubber insulated wire
RoHS, CCC
GB/T19001, ISO9001
Rated temperature: -60oC~+200oC
Rated voltage: 600V
Conductor: Solid or stranded wire (0.07~25 mm2 ) of tin-plated or bare copper wire.
Insulator: Silicone rubber.

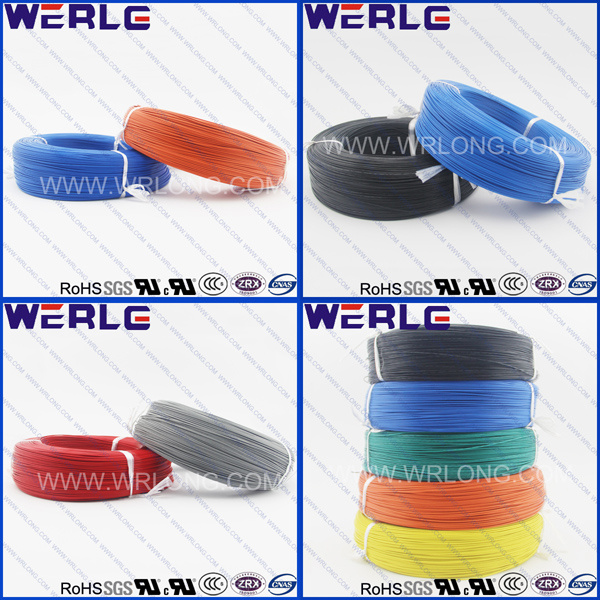

Color: : Red \blue \white \yellow \green \brown \black
Application areas: Insulated protective wire of electronic appliances, lighting equipments, industrial machinery and heated products.
We can make all kinds of special specification silicone wires and braided silicone wires to customer's order.
AWGCONDUCTORINSULATOR
construction
(nxmm)
diameter
(mm)
thickness
(mm)
over diameter
(mm)
267x0.160.480.762
247x0.20.62.12
227x0.2540.762.28
207x0.320.962.48
1x0.813 2.33
187x0.41.22.72
1x1.02 2.54
167x0.51.53.02
26x0.2541.493.01
1441x0.2541.863.38
1265x0.2542.363.88




ZHEJIANG WRLONG HIGH TEMPERATURE WIRE & CABLE Co., Ltd is a modernized enterprise which has specialized in high-temperature wire and cable for many years. It locates in the biggest production base of low-voltage appliance in China_YUEQING CITY, ZHEJIANG PROVINCE and it is next to OUJIANG rivers whose throughput is beyond thousands of ton every day as well. It is obvious that its transportation or traffic is very convenient and expeditious.

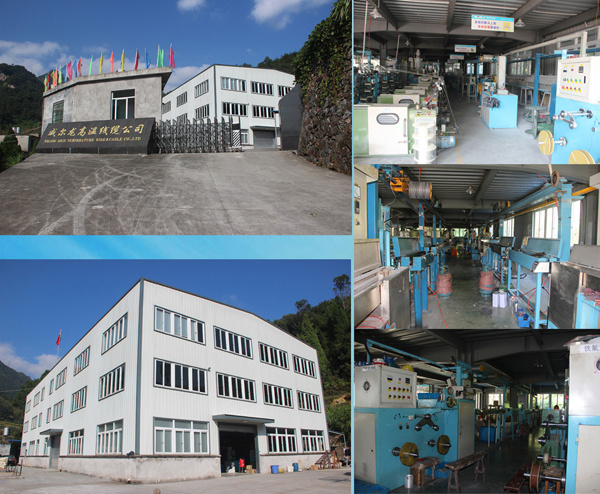

Our company owns the most advanced production equipment in China at present and we have imported the direct inverter microcomputer-controlled production line device from England. It has all sorts of detection device, abundant funds and trained professionally technicians as well.

Our leading products contain the teflon wire and cable which is used in Aerospace and Astronautics and high - temperature wire and cable which contains the fluoropolymers. Its types have AF46-200, AFK-250, AFPF-200, KFFR-250 and so on. Our company also produce high-temperature precise compensating conductor and its types are KX, KC, BC, SC, EX, IX, TX, NX, NC, EX and so on.

Our products have passed the certification of ISO9001-200, CCC, RoHS, UL and other test reports for the products from relevant organizations or institutions with the persistent efforts of all of the staff in WERLE and the products can find a ready market all over the world.

Our company sticks to regard the technology as guide, quality in pursuit of development as management ideas, quality create famous brands as tenet and thinks highly of quality management of the products in order to realize the integration of production, detection, selling and service and internationalization of the markets.

Society developping and make progresses gradually, WERLE strives with pressure, explore with urgence, struggle with blueprint and contend with smile for better future with the new and old clients together!
