Two-Way Communication GPS Tracker Supporting 3G Network
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
OCT630 |
| Color: |
Black |
| Backup Battery: |
550mAh |
| Power Supply: |
+9V - 35V / 1.5A |
| Factory: |
Yes |
| Weight: |
145g |
| 3G Network Tracker: |
Yes |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| GSM Frequency: |
850/900/1800/1900MHz |
| GPS Frequency: |
L1, 1575.42 MHz |
| Location Accuracy: |
10m |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Code Related Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Carrier Frequency: |
Multi-Frequency |
| Brand: |
Oner |
| Certification: |
Ce, RoHS, FCC |
Product Description
two-way communication gps tracker supporting 3g network

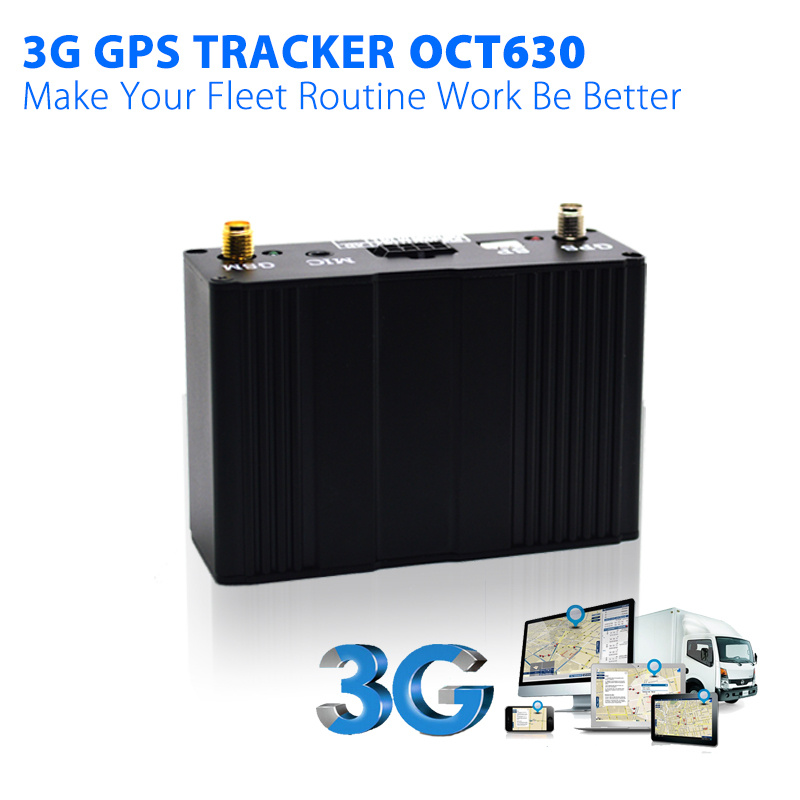

3g GPS Vehicle Tracker OCT630
OCT630 includes more new features and 3G connectivity with different frequency. With stable and fast data transmission capacity, OCT630 make you ability to do tracking in the coverage gaps caused by the phase out of 2G. Further more, GPS tracker with 3g network support wider range of coverage, it can work well for those in remote, weak signal areas.
This 3g tracker is ideal for car tracking, fleet management, access tracking, etc. it allows you to set schedule for all the cars. And multiple alerts like engine on alert, idle alert remind you to pay attention to car security and maintenance. You also can get reminding when time to do maintenance.
OCT630 has extra accessories added such as camera, fuel sensor, RFID, Bluetooth among others
Specifications:
| Dimension | 60mmx85mmx30mm | Weight | 145g |
| Charging voltage | +9V - +35V / 1.5A | GPS Chipset | Latest GPS SIRF-Star III chipset |
| Backup battery | 550mAh lithium-ion battery | Operating temp | -20°C to 55°C |
| Humidity | 5%-95% | GPS Sensitivity | 158Db |
| LED indicator | 2 indicators show GSM/GPS status | GPS Frequency | L1, 1575.42 MHz |
| Channels | 20 channel all-in-view tracking | Interface | 2 input and 1 output |
| Velocity Accuracy | 0.1 m/s | Position Accuracy | 10 m, 2D RMS |
| Frequency | 850/1900Mhz,900/2100Mhz UMTS | 850/900/1800/1900Mhz GSM |
Main Functions:
1. Tracking via SMS, GPRS, 3G(TCP/UDP)
2. High speed data transmisson(over 4 million bit per second), make stable tracking even in the area without stable signal.
3. Support expanded territory coverage, keep tracking for those in remote area.
4. Support multiple frequency for working in different countries: 900/2100MHz, 850/1900MHz, 850/2100Mhz
5. LBS tracking
6. Living location report: GPS data sent to server by time interval or distance
7. SOS panic button,emergency alarm.
8. Geo-fencing control and alarm.
9. Movement alarm
10. External power cut alarm
11. Engine cut/Stop car moving/Enable car moving
12. Mileage calculation report
13. GOOGLE MAP link for location via SMS.
14. ACC detecting:ACC detecting on/off status
15. Detect car door on/off status by SMS or web GPS tracking system
16. Firmware update OTA_Tracker firmware's program can be updated on the air instead of USB cable in cause tracker needs new program
17. Two way communication: Voice monitoring and speaking remotely on the phone
18. Speed limitation
19. Check airtime/balance via SMS
20. Car door opening alarm
21. Set driver working time via SMS
22. Engine on alarm
23. Data record with SD card
24. Fuel monitoring
Q&A for gps trackers:
1. How does the tracker work?
Tracker is like a mobile phone, which works with GSM and GPS signals. Location by GPS while data transferred by GSM SMS(mobile phone) or GPRS (Web tracking platform system).
2. How long for your product warranty?
12 months.
3. Where should I put the antenna in the car?
Generally speaking, the antenna should be put near the vehicle window to get the strong signals.
4. After we buy your tracking software, if we want to amend something, how can we make it?
For any additional functions to be added, just feel free to contact us. Our engineer will work on the software for you to finish the updating to your server. Customized software can be achieved to meet your special needs.
5. What certificate your products has?
CE,FCC and ROHS.
6. If we want to print the logo on the tracker, can you make it for us?
Sure, we can print the logo on the tracker before shipment as required.
7. What is the shipping method?
Normally, we will arrange shipment by DHL. Meanwhile, we can help with the shipment on your own courier account or forwarder.
Any more question, just feel free to contact us.
