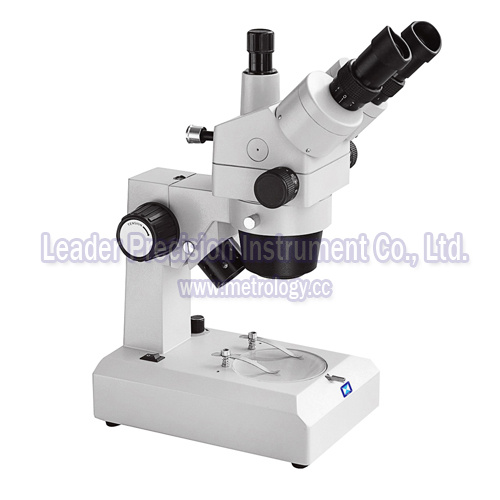

Trinocular Stereo Inspection Microscope for Semiconductors (XTF-3021)

Trinocular Stereo Inspection Microscope for Semiconductors (XTF-3021)
Price: US $ 500-600/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: XTF-3021
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Trinocular Stereo Inspection Microscope
Model: Xtf-3021
And For Two PCS, The Printing Company Ca: 0.55X, 1X, 1.75X, 3X, 5.5X
Eyepiece: Wf10X/23mm
Working Distance: 95mm
Total Magnification: 5.5X, 10X, 17.5X, 30X, 55X
Field Of View: 41.8mm, 23mm, 13.1mm, 7.7mm, 4.2mm
Interpupillary Distance: 48mm-75mm
Trioncular Tube: Inclined 45o
Diopter Adjustment: 5 Diopter
Number Of Cylinder: Binoculars
Mobility: Desktop
Shape: Single-lens
Principle: Optics
Magnification: 10X
Type: Binocular
Usage: Inspecting and Measuring

Product Description

Usage:
This stereo microscope is widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PC

Feature:
1) Zoom lens microscope
2) Parallel Beam Path Design
3) Can connect CCD camera

Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS

Optional accessories for this microscope:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x
Micro-image process

Technical data
Lens zoom range0.55X, 1X, 1.75X, 3X, 5.5X
EyepieceWF10X/23mm
Working distance95mm
Total magnification5.5X, 10X, 17.5X, 30X, 55X
Field of view¢ 41.8mm, ¢ 23mm, ¢ 13.1mm, ¢ 7.7mm, ¢ 4.2mm
Interpupillary distance48mm-75mm
Trioncular tubeinclined 45º
Diopter adjustment± 5 diopter
Trioncular body rotation360º

EyepieceWF10XWF15XWF20XWF25X
Auxiliary lensMagnificationField of viewMagnificationField of viewMagnificationField of viewMagnificationField of viewWorking distance(mm)
0.5X2.8X
5X
8.8X
15X
27.5X
¢ 93.6
¢ 46
¢ 26.3
¢ 15.3
¢ 8.4
4.1X
7.5X
13.1X
22.5X
41.3X
¢ 58.2
¢ 32
¢ 18.3
¢ 10.7
¢ 5.8
55X
10X
17.5X
30X
55X
¢ 47.3
¢ 26
¢ 14.9
¢ 8.7
¢ 4.7
6.9X
12.5X
21.9X
37.5X
68.8X
¢ 43.6
¢ 24
¢ 13.7
¢ 8
¢ 4.4
200
0.75X4.1X
7.5X
13.1X
22.5X
41.3X
¢ 55.8
¢ 30.7
¢ 17.5
¢ 10.2
¢ 5.6
6.2X
11.3X
19.7X
33.8X
61.9X
¢ 38.9
¢ 21.3
¢ 12.2
¢ 7.1
¢ 3.9
8.3X
15X
26.3X
45X
82.5X
¢ 31.5
¢ 17.3
¢ 9.9
¢ 5.8
¢ 3.2
10.3X
18.8X
32.8X
56.3X
103.1X
¢ 29.1
¢ 16
¢ 9.1
¢ 5.3
¢ 2.9
125
1X5.5X
10X
17.5X
30X
55X
¢ 41.8
¢ 23
¢ 13.1
¢ 7.7
¢ 4.2
8.3X
15X
26.3X
45X
82.5X
¢ 29.1
¢ 16
¢ 9.1
¢ 5.3
¢ 2.9
11X
20X
35X
60X
110X
¢ 23.6
¢ 13
¢ 7.4
¢ 4.3
¢ 2.4
13.8X
25X
43.8X
75X
137.5X
¢ 21.8
¢ 12
¢ 6.9
¢ 4
¢ 2.2
95
1.5X8.3X
15X
26.3X 45X
82.5X
¢ 27.9
¢ 15.3
¢ 8.8
¢ 5.1
¢ 2.9
12.4X
22.5X
39.4X
67.5X
123.8X
¢ 19.4
¢ 10.7
¢ 6.1
¢ 3.6
¢ 1.9
16.5X
30X
52.5X
90X
165X
¢ 15.8
¢ 8.7
¢ 5
¢ 2.9
¢ 1.8
20.6X
37.5X
65.6X
112.5X
206.3X
¢ 14.5
¢ 8
¢ 4.6
¢ 2.7
¢ 1.5
55
2X11X
20X
35X
60X
110X
¢ 20.9
¢ 11.5
¢ 6.6
¢ 3.8
¢ 2.1
16.5X
30X
52.5X
90X
165X
¢ 14.5
¢ 8
¢ 4.6
¢ 2.7
¢ 1.5
22X
40X
70X
120X
220X
¢ 11.8
¢ 6.5
¢ 3.7
¢ 2.2
¢ 1.2
27.5X
50X
87.5X
150X
275X
¢ 10.9
¢ 6
¢ 3.4
¢ 2
¢ 1.1
    35
