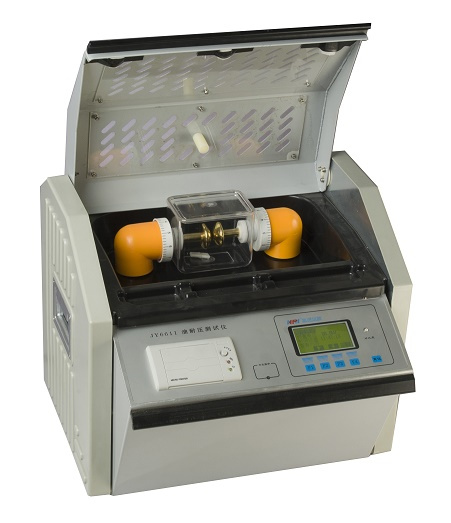

Transformer Oil Break-Down Voltage Tester (JY6611) /Oil Insulating Tester/Oil Dielectric Strength Tester

Application:	Instrument
Phase:	Three
Brand:	Kingrun

Product Description



JY6611 transformer oil voltage breakdown tester adopts completely new electromagnetic compatibility concept(EMC) which designed to avoid tester crash accident during testing, and also can still work well in high magnetic field.

JY6611 transformer oil tester use advanced  voltage breakdown control technology which will keep breakdown energy in a very low level,that will avoid pollution to oil sample during testing and make sure the test result are accurate and reliable.





FUNCTION INTRODUCTION

1. Never crash:
JY6611 adopts electromagnetism compatibility(EMC) to avoid tester crash in test process. The instrument can work well in high-intensity electromagnetic environment

2. High precision:
JY6611 adopts completely new breakdown voltage control technology to make the breakdown discharge energy to the lowest,which avoid oil sample pollution during test process and make test results reliable and accurate.

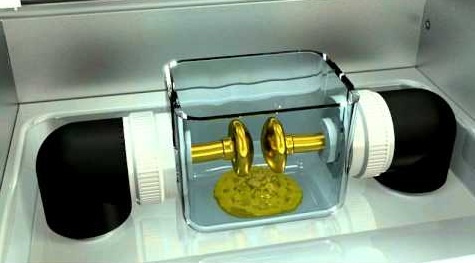

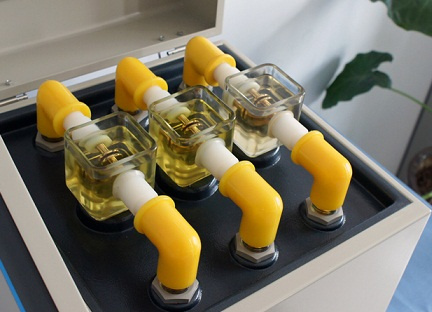

3. New type oil cup:
JY6611 oil cup is made by new material with high strength and long service life to avoid fragile and leakage problem during testing.

4. Complete protection system:
JY6611 has a variety of  protection devices which will make sure the safety of operator and tester itself in accident
 like inferior oil beakdown  and empty cup breakdown.









TECHNOLOGY SPECIFICATION:



Output voltage	0~80kV/100kV
Minimum resolution	0.1 kV
Accuracy	2%×read±0.2kV
Voltage raise speed	1.0/2.0/3.0kV/s
Breakdown disconnecting time	≤1ms
Experimental times	1~6
Volume of the oil cup	400ml: 200ml
Distance between the poles	2.5mm(Electrode gap is adjustable)
Temperature in operation	0~40ºC
