Prod Model: |
JL-48E520 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Motor: |
DC Gear Motor/DC Motor |
Voltage: |
12volt /24volt DC Motor |
Speed: |
2-300rpm Permanent Magnet Motor |
Torque: |
High Torque |
Diameter: |
48mm DC Gear Motor |
Power: |
DC Power |
Gears: |
Metal/Plastic/Copper |
Brush: |
DC Brush Motor |
Shaft: |
6.0mm |
Material: |
RoHS Material |
Application: |
Power Tools |
Operating Speed: |
Adjust Speed |
Excitation Mode: |
Excited |
Structure And Working Principle: |
Brush |
Certification: |
Ce,RoHS |
Brand: |
Kingly |
Product Description
1.high torque geared dc motor/ 12v DC Motor
2.low rpm geared motors with high toruqe,longlife dc motor ,
3.dc motor with geared motor with gearbox dc gear motor
4.Voltage:3v-24v
5.Typical application
financial machinery,office automation,electronic products
electrical appliance,sanitary appliance,power tools,message apparatus
safe box,pumps,medical equipments,instrument
6.Certification:CE,CCC,ROHS,ISO9001:2000,UL,TUV...
7.Compared with other kinds of motors, electric dc motors are quiet,
smooth running, small, clean and easily controlled
8.Specifications:
a.High torque,low noise
b.Typical applications:Safe box,instrument,pump,Tie-yarn machine,Massager,Cut-card machine
d.Type:gear motor
e.Torque:<30kg.cm
f.Commutation:Brush
g.Current:h.Output power:<10w
i.Voltage:3 to 24v
j.Shape:pear gear
-Motor's specification and shaft length can be tailor-made according to customer's requirements.

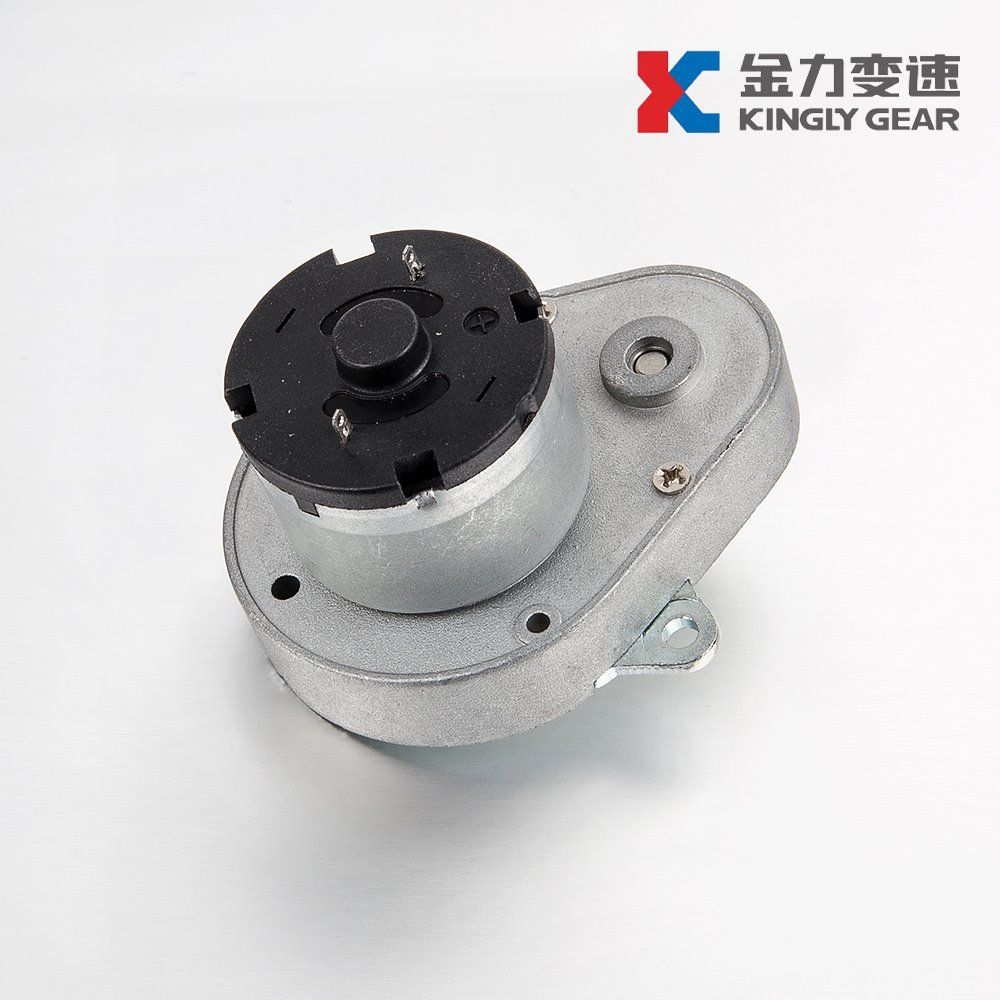

![](/proimages/44f3j00hrDtznldnqcC/totally-encolsed-gearbox-metal-gear-engine-24v-dc-gear-motor.jpg)
Model | Voltage | No Load | At Maximum Efficiency | Stall |
V | Speed | Current | Speed | Current | Torque | Output | Stall | Current |
r/min | A | r/min | A | mN.m | kg.cm | W | mN.m | kg.cm | A |
JL-48E520-216 | 12 | 47 | 0.12 | 38 | 0.60 | 686 | 7.0 | 2.73 | 4410 | 45.0 | 2.5 |
JL-48E520-427 | 24 | 13 | 0.02 | 10 | 0.06 | 1470 | 15.0 | 0.40 | 2451 | 25 | 1.2 |
| | | | | | | | | | | |
Length of MotorL | Reduction Ratio | | | | | | | |
12.5mm | 30 | 56 | 75 | 112 | | | | | | | |
160 | 216 | 427 | 538 | | | | | | | |
![](/proimages/44f3j00rTHEoykGsqbL/totally-encolsed-gearbox-metal-gear-engine-24v-dc-gear-motor.jpg)
![](/proimages/44f3j00LQfETDatmmcy/totally-encolsed-gearbox-metal-gear-engine-24v-dc-gear-motor.jpg)
![](/proimages/44f3j00DTYtQlaETmqn/totally-encolsed-gearbox-metal-gear-engine-24v-dc-gear-motor.jpg)
![](/proimages/44f3j00LQGaEktrIJoN/totally-encolsed-gearbox-metal-gear-engine-24v-dc-gear-motor.jpg)
