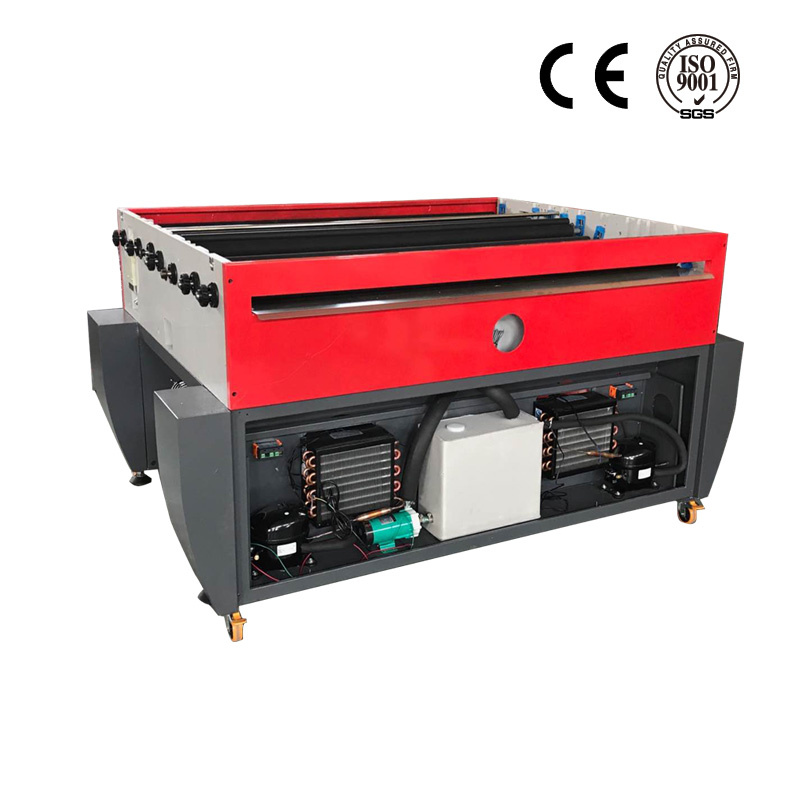

Thermal Digital CTP Plate Processor Machine

Prod Model:	CTP Processor
Capacity:	12-90 M/Hr
Plate Thickness(mm:	0.15-0.4
Adjustable Temperature:	Normal Temperature to 70 Degree C.
Plate:	Lithography Printing
Type:	CTP Plate Making Machine
Light Source:	Semiconductor Laser

Product Description

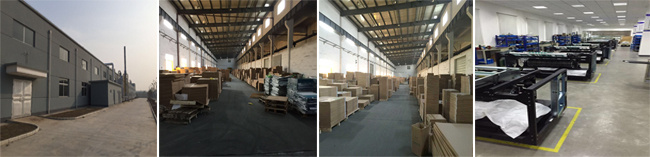

Company profile
 Taizhou Decai Printing Technology Co., Ltd. , located in Taixing High-tech Industrial Park, , is a professional corporation working
on production and sales of printing plates and pre-pressmachinery. We produce thermal CTP(double and single layered),   CTcP
and PS plates.  Our factory established in 1995.  And through over 20 years'development, we possess totally-enclosed and fully automaticweb-fed  printing  production lines,   which can enable us  to providesales and top service for customers from  all  over
theworld. Also with advanced R&D system, we produc highquality printing plates with competitive price. The factory has passed
the certification of GB/T19001-2000/ISO9001:2000 Quality Management System.

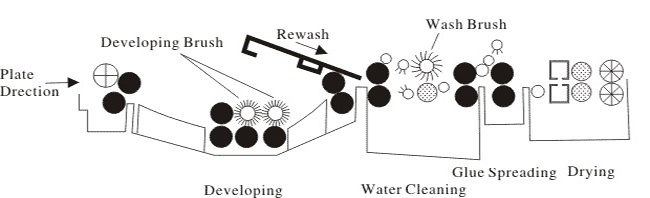

Structure diagram

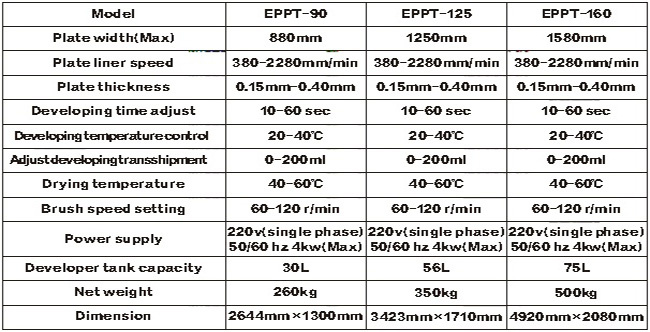

Specifications


Characteristics
 (1)  Accurate processing temperature control system
 (2)Precise processing speed control system
 (3)Automatic chemical and anti-oxidation replenishment system
 (4) Re-wash cycle, Gum cycle system
 (5) Processing and washing brush speed adjustable
 (6) Special anti-foaming design
 (7)Automated chemical fill
