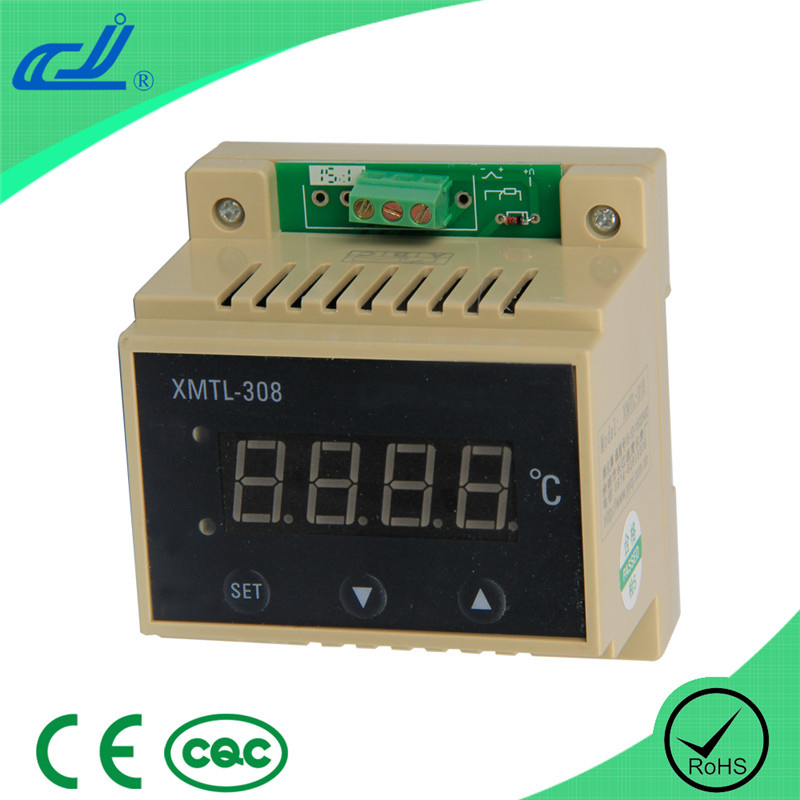

Temperature Controller with 35mm DIN Guide Rail Installation (XMTL-308)

Name: Temperature Controller with 35mm DIN Guide Rail Installation (XMTL-308)
Brand: all-electronics-online.com
SKU: 681537795
Availability: InStock
Rating: 4.4 (93 reviews)

Price:	US $ 18.2/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTL-308
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

Temperature controller
Conrtol method: ON/OFF; PID
Input signal: CU50; PT; K; E; J; T
Power supply: 85-242V; 50/60HZ

I. Summarize

XMTL-318 intelligent temperature controller, is single row 4-LED display. The controller can input kinds of signals which are used interchangeably, three-button operation, adopts ON/OFF control and PID control. It can select Fahrenheit and degree centigrade temperature display. It allows an easy parameter setting and convenient inputting, is used widely temperature automatic control systems of machinery, chemical, ceramics, light industrial, metallurgy, petrifaction and heat treatment and so on.

II. Main Technical Indexs

1, Measurement deviation: ± 0.5%FS± 1B, Cold end compensating deviation≤ ± 2C
2, Input(can be selected): CU50, PT100, K, E, J, T, S
3, Relay output contact capacity: AC220V 5A(resistance load)
Period 2~120s can be adjusted.
4, Power: AC85V~242V, 50~60HZ
5, Installation type: 35mm DIN guide rail installation
6, Work environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong electric radiation.

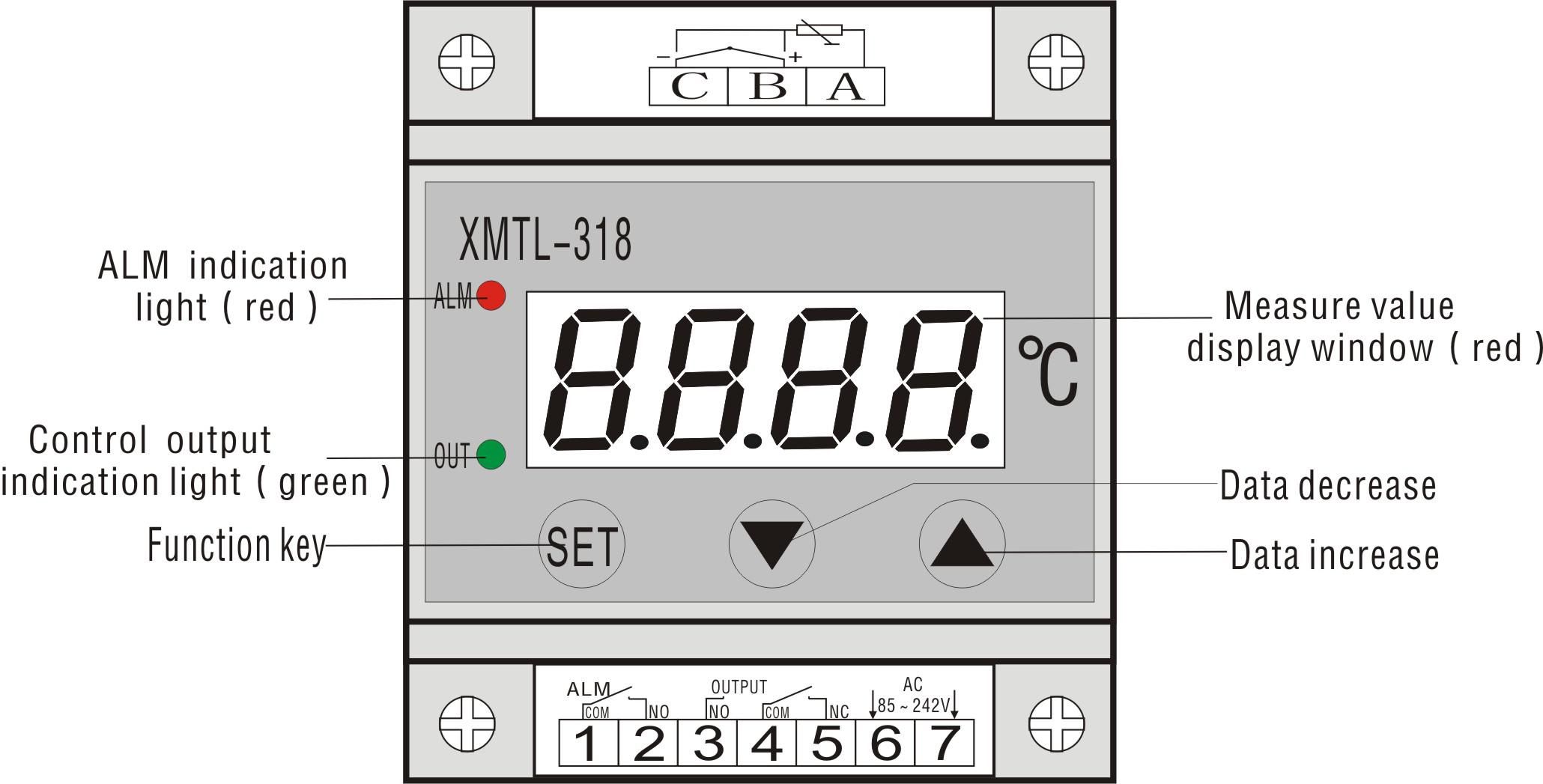

Instrument panel and connection scheme(consult)

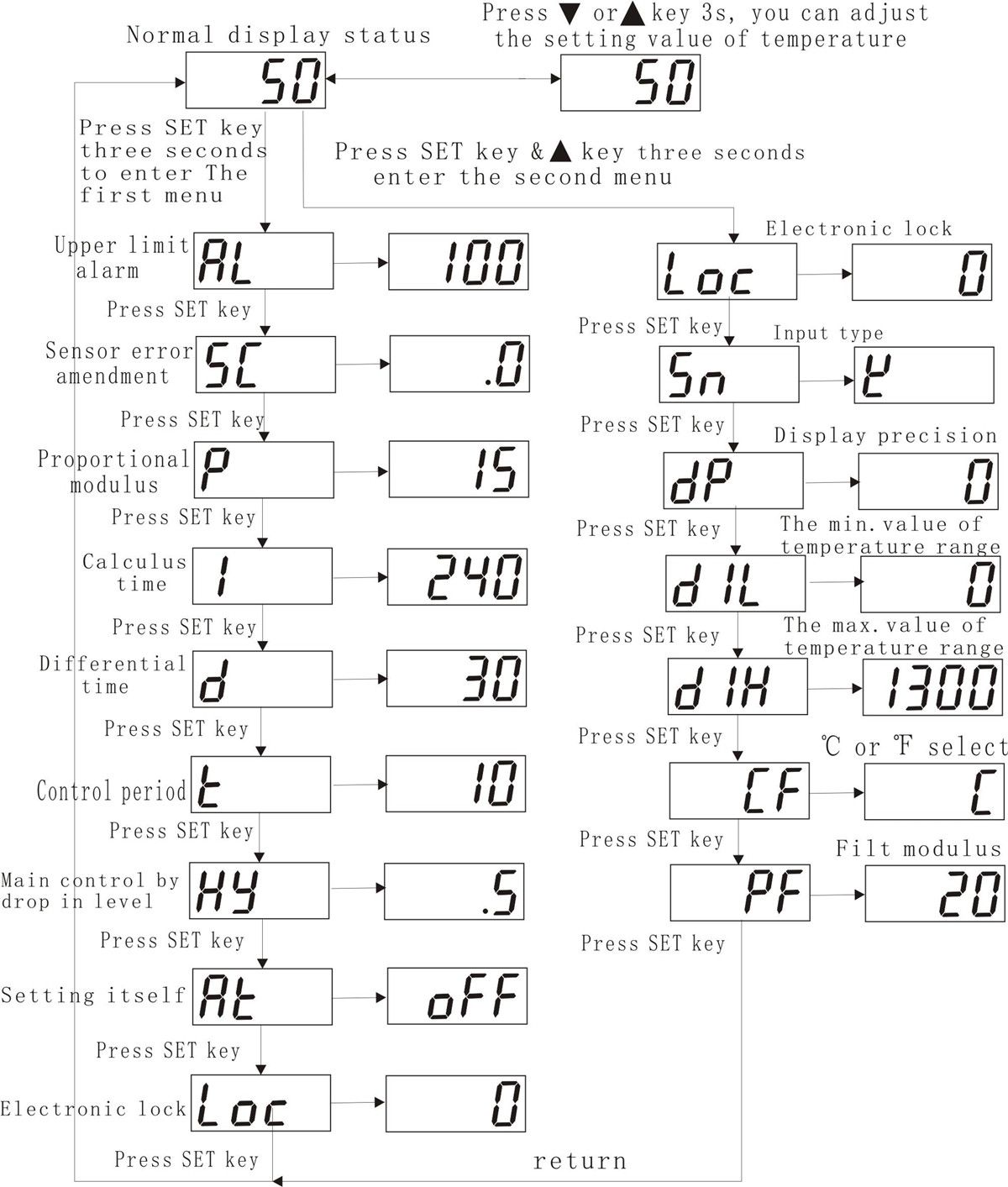

Flow chart

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
