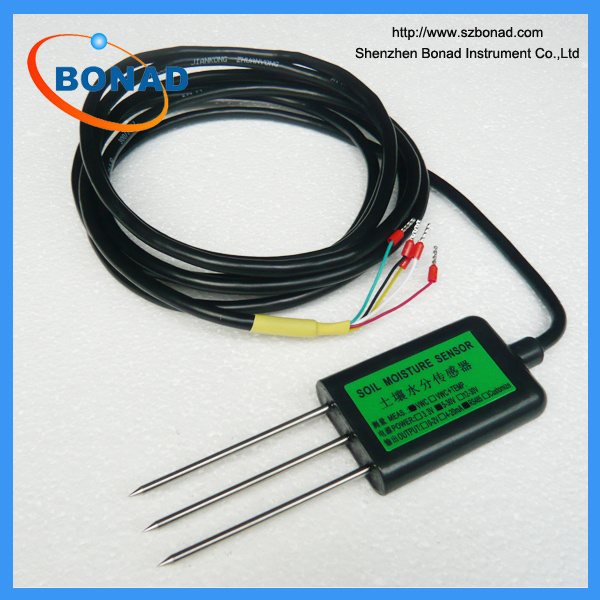

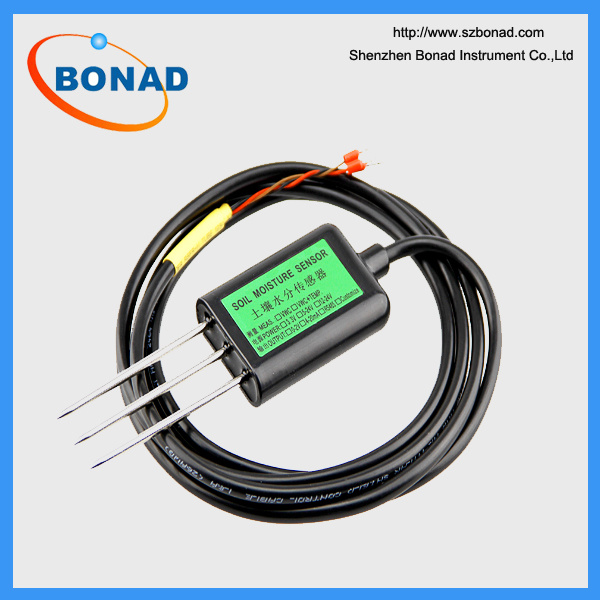

Temperature and Moisture Soil Sensor for Agriculture
Price: |
US $ 55-95/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Prod Model: |
BND-MS10 |
Brand Name: |
Bonad |
Moisture Measurement Range: |
0-30%/0-50%/0-100% |
Power Supply Voltage: |
5-30V/DC 12-30V/DC |
Response Time: |
<1 S |
Temperature Measuring Range: |
-40ºC~80ºC |
Signal Output Type: |
0-2V/4-20mA/RS485 Interface |
The Storage Environment: |
-40~85ºC |
Operating Environment: |
-40~85ºC |
The Material Of The Probe: |
Food Grade Stainless Steel |
The Measurement Precision Of Soil Temper: |
±0.5ºC |
Measuring Medium: |
Humidity and Temperature |
IP Rating: |
N/a |
Product Description
Temperature and Moisture Soil Sensor for Agriculture
Technical parameters:
Temperature and Moisture Soil Sensor
technical parameter |
The signal output type | Output voltage 0-2V output impedance <1Kohm | current output 4-20mA
load resistance <500ohm | RS485 interface, Modbus protocol |
Power supply voltage | 5-30V/DC | 12-30V/DC | 5-30V/DC |
Maximum power dissipation | 40mA@24V DC | 80mA@24V DC (When the two current output channel is 20mA) | 30mA@24V DC |
Soil moisture measurement area | The probe as the center, the diameter of 7cm, height of 7cm cylinder |
Response time (moisture and temperature) | Less than 1 second |
Soil moisture measurement range | Optional range:
0-30% volumetric moisture content
0-50% volumetric moisture content
0-100% volumetric moisture content |
Soil moisture measurement accuracy | 0-53% range is ± 3%; 53-100% range is ± 5% |
Soil temperature measuring range | -40~80ºC |
The measurement precision of soil temperature | ±0.5ºC |
Protection grade | IP68 |
Operating environment | -40~85ºC |
The storage environment | -40~85ºC |
The material of the probe | Food grade stainless steel |
Sealing material | The black flame retardant epoxy resin |
Installation | All buried or probe into all of the measured medium |
Series | Code 1 | Measurement parameters |
MS10- | A B | Soil volumetric water content (VWC) and temperature Soil volumetric water content (VWC) |
| | Code 2 | The range of volumetric water content of soil |
| | A B C | 0-100% 0-50% 0-30% |
| | | Code 3 | Output signal |
| | | A B C D E F G | Output voltage 0-2V The current output of 4-20mA RS485 interface, Modbus protocol RS485 interface, Modbus protocol and the 0-2V output voltage RS485 interface, Modbus protocol and 4-20mA output current The SDI-12 interface Custom |
|
Type example: The MS10 series, the soil volumetric water content (VWC) and temperature, soil volumetric water content range of 0-100%, RS485 interface, Modbus protocol. The selection of the code as follows: |
![](/proimages/44f3j00WTFQfDdlCekC/temperature-and-moisture-soil-sensor-for-agriculture.jpg)
![](/proimages/44f3j00nQdtNETaaeoW/temperature-and-moisture-soil-sensor-for-agriculture.jpg)
