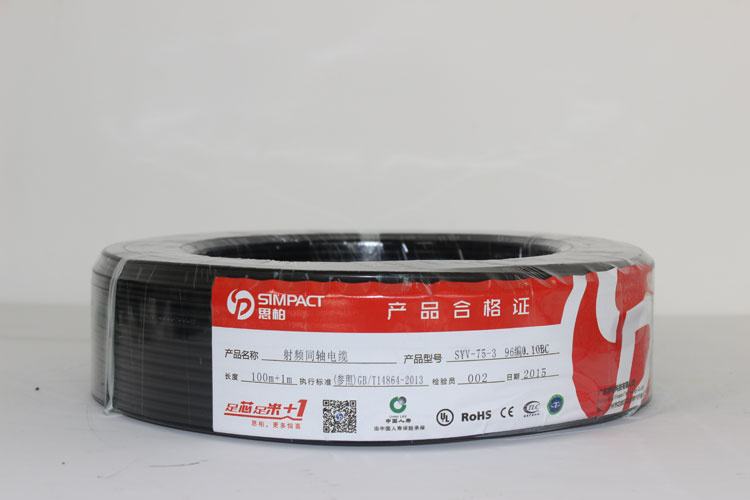

Syv-75-3 Coaxial Cable with CE/RoHS

Syv-75-3 Coaxial Cable with CE/RoHS
Price: US $ 55-75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Box
Pay Type: L/C,T/T,Western Union
Prod Model: g-5645
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package: 305m/ Wooden Drum/ Box
Jacket: PVC/PE
Conductor: Copper
Certificate: UL, CE Certificated
Test: ANSI/Eia/Tia 568-B. 2 Requirements
Application: LAN Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PE
Type: Cat 5
Certification: UL
Conductor Type: Copper
Model: S-0015687003
Brand: Simpact

Product Description

Specifications:
Meets ANSI/EIA/TIA 568-B. 2 requirements
Fire protection CMX
The cable meets UL 444 UL 1581 fire safety standard

Description:
Unshielded Copper cable, 4 pairs, category 5, solid, with messenger
Cable is used for outdoor installation
Application: Horizontal communication cable

Materials:
Conductive material: Solid bare copper
Conductor insulation: HDPE
The cable jacket: Black PE
Messenger: Galvanized steel wire
Conductor diameter: 0.51 mm (0.02") (24 AWG)
Standard package: 305m (1000 ft)
TypeUTP  CAT5  Enhanced  Solid  CABLE  Outdoor UV
ApplicationsHorizontal  and  Building  Backbone  Cable.
Category  5e,   Gigabit  Ethernet,     100Base-Tx,   100Base  VG  ANYLAN,   155ATM,   622ATM,   Token  ring,   TP-PMD  Audio,   Multimedia  and  Telephone  network,   etc.
Descriptions  24AWG  Solid  bare  copper  condutors,   polyethylene  (PE)insulation  ,   PVC  jacket,   rip  cord
StandardTIA/EIA  568A/568B  IEEE802.3U/IEEE  802.5    ISO/IEC  11801  EN50173
ConductorMaterialSolid  Bare  Copper        (Copper  Clad  Aluminium    also  available)
Diameter24AWG  (1/0.50+-0.02mm)
Construction          4*2*0.50mm
Ripcordyes
Drainno
DielectricMaterial    PE                                                                                            new  material
Insulation  Colorsgreen  orange  brown  blue
Insulation  thickness0.269MM+-0.05mm
Insulation  OD0.90MM+-0.05mm
    Pair  Unshielded  4  Twisted  Pair
PairPair  Color  Code  Chart
NumberColorFunction
1white/blue  stripe  &   blueUnused    &   Unused
2white/orange  stripe  &   organgeTransmit  data+  &   Transmit  data-
3white/green  stripe  &   greenReceive  Data+&   Receice  Data-
4white/  brown  stripe  &   brownUnused    &   Unused
JacketMaterialLayor  1PVC  PVC        Layor 2-  PE
Color                                                                                                                black
Thickness0.6mm+-0.1mm
Nominal  O. DOverall  Diameter5.8mm+-0.3mm
Bulk    Cable  Weight12.9kgs/305m
Storage    Temperature  Range  -40° C  To  +70° C
Operating  Temperature  Range  -20° C  To  +70° C
  Work  DatapassMin. > =180m-200m
Legend(Surface  Ink  Print)Simpact    CATEGORY    5  ENHANCED    UTP    LAN    CABLE    24AWG    4PAIR      001Mtr  ...    As  customer  order
Rated  Temperate70c
Flame  RatingNo  Plenum
Packingpacking1000ft/roll...As  customer  order
PackagePaper  carton
Carton  Size  Copper  conductor
42*40.5*41CM



Q' TY    /CTN
2box/carton


Terms                                                  &                                             ConditionMOQ200box
OEMProvided  for  free  box  design
Capacity  of  production500km/day
Payment  termsFOB,T/T, L/C Option
Delivery  TimeWithin  7days  after  got  the  deposite
CertificatesCE  ,   UL, ROHS    &     ISO  9001: 2008
Delivery  portShenzhen  port
Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.

Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.

Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.

Work Simpact, the better!
