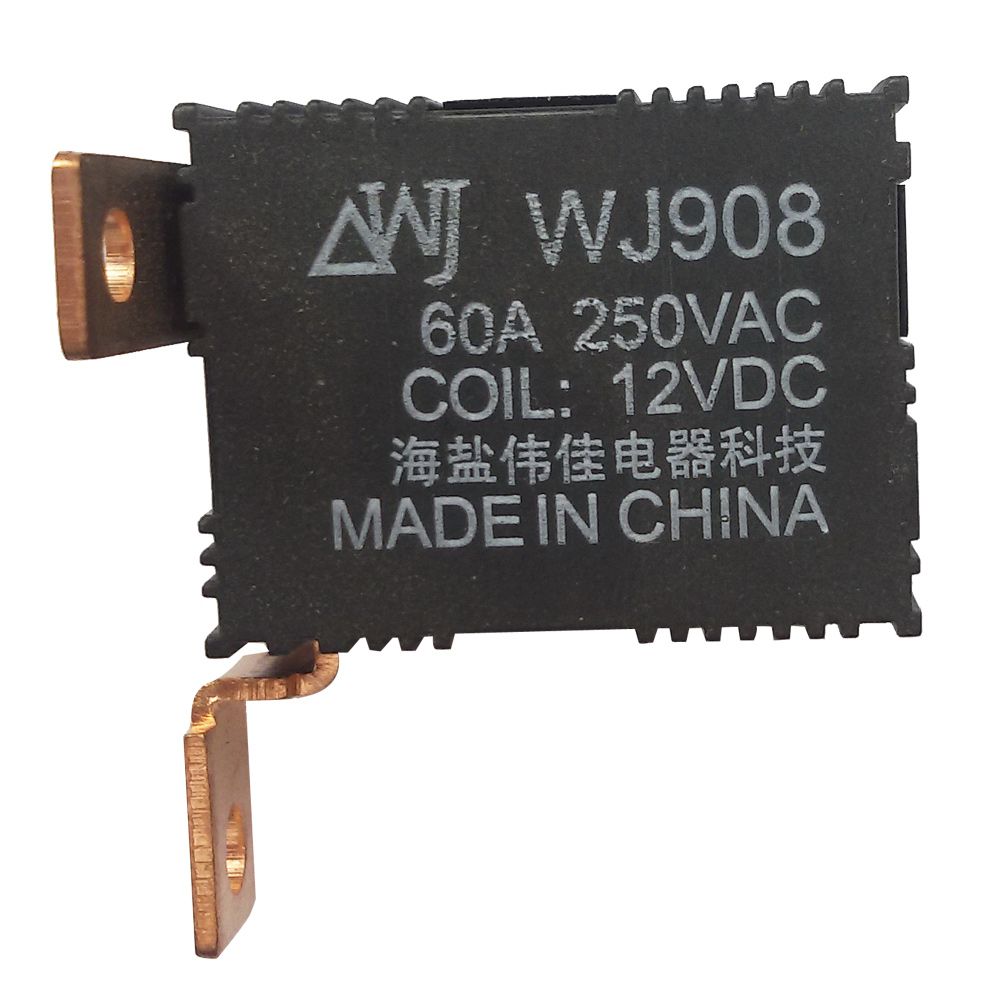

Switching Relay Wj908-60A

Name: Switching Relay Wj908-60A
Brand: all-electronics-online.com
SKU: 825187775
Availability: InStock
Rating: 4.9 (89 reviews)

Price:	US $ 2.5-3.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ908-60A

Product Description

Electrical Relays 100A 24V Being small in volume, various installation hole, light in weight, and reliable, it is suitable for household electric appliances or to change from DC and AC in circuit of industrial automatic control appliance.

Application; 1. Electrical meter 2. Automatic meter reading 3. All kinds of household electric appliances, automic control devices

Basic Data:
Contact arrangement: 1A. 1B
Contact material: Sliver alloy
Max switching current: 100A. 120A
Max switching voltage: 250VAC
Max switching power: 25KVA
Production Feature:
1. Wide gap between contacts, high switching capacity
2. Good unsulation, High insulation resistance, as well as drelectric strength
3. Cassified as 100A and 120A
4. Resistive to shock and concussion, reliable to operate
Specifications Data:
Coil Rated Voltage: 9~48VDC
Coil Power: Single: 2.5W double: 3.5W/2W
Set Voltage: ≤ 80%
Reset Voltage: ≤ 80%
Voltage Pulse Width: ≥ 50ms
Set/Reset Time: ≤ 30/30ms
Contact Bounce Time: ≤ 5ms
Contact Resistance: ≤ 2mΩ
Insulation Resistance: ≥ 1000mΩ
Dielectric Strength Between Open Contacts: ≥ 2000VAC
Dielectric Strength Between Open Contacts: ≥ 4000VAC
Ambient Temp: -40~+70° C
Life Electricel(Operation): Normally 1*104 Particularly 3*104
Mechanical(Operation): 1*105

Electric Relay, Magnetic Latching Relay, Power Relays, Mini Relay, Relay Switches

Haiyan Weijia Electric Technology Co., Ltd. is a professional large-scale manufacture of all types of electric shunt, integrating development and production together. Our main products include shunt, current shunt, brass shunt, relay, magnetic latching relays, current transformer, testing equipment, transformer cable, electro-optical samplers and related products. Our company was established in 2008, and we have many years of history in the shunt industry. Located near Ningbo, Shanghai, we enjoy convenient water, land and air transportation.

Currently, our product already exported to Russia, India European and other Western countries and regions. Our company has always focused on research, development and innovation, and has obtain some patent in the shunt field. In 2009, we attained ISO9001: 2008 Quality Management System Certification Certificate.

Our company continues to introduce new products to meet different needs, with high-quality products, reasonable prices, and good after service, we hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
