Stainless Steel Mpm416wrk Level Transmitter

Name: Stainless Steel Mpm416wrk Level Transmitter
Brand: all-electronics-online.com
SKU: 692500082
Availability: InStock
Rating: 5 (82 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM416WRK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	0~1...200m
Housing:	Stainless Steel
Output Signal:	4~20madc
Output Type:	Mv or Ma
Keywords:	Local Display Level Transmitter
Accuracy:	0.25%Fs (Typ.)
Operation Temperature:	-10~80c
Principle:	Piezoresistive
Storage Temperature:	-40~100c
Wiring:	2-Wire,3-Wire

Product Description

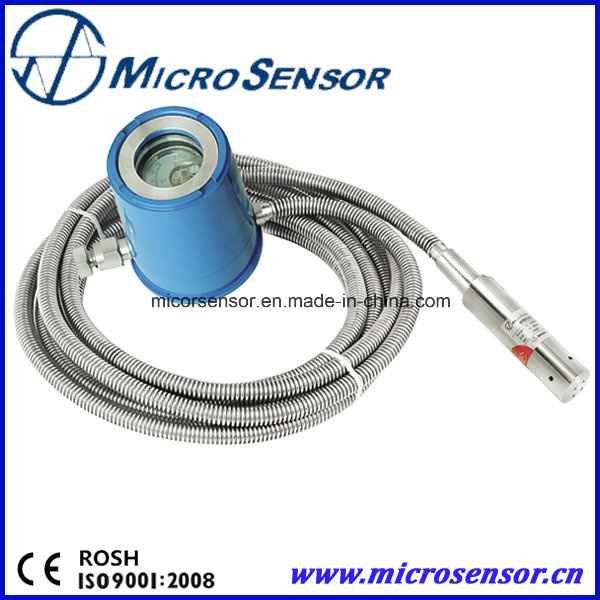

Stainless Steel MPM416WRK Level Transmitter

Features:
  1. Full stainless steel
  2. Full sealed
  3. Full welded
  4. Flexible tube armored
  5. Water-proof connection box
  6. Intrinsic safe
  7. CCS approved

Specification:

Pressure range	MPM416W	1, 2, 5, 10, 20, 50, 100, 200mH2O
	MPM416WK	1, 2, 3, 4mH2O
	MPM416WRK	1, 2, 5, 10, 20mH2O
Overpressure	1.5times FS
Accuracy	+0.25%FS(typ. ) +0.5%FS(max. )
Stability error	+0.1%FS(typ. ) +0.2%FS(max. ) pressure range> 20mH2O
	+10mmH2O(typ. ) +20mmH2O(max. ) pressure range≤ 20mH2O
	+20mmH2O(typ. ) +30mmH2O(max. ) only for MPM416WRK
Temp. drift		Zero drift, + %FS/º C		Sensitivitydrift, +%FS/º C
	Rang> 10mH2O	0.005(typ. )	0.01(max. )	0.02(max. )
	Range ≤ 10mH2O	0.01(typ. )	0.02(max. )	0.02(max. )
	Range ≤ 5mH2O	0.015(typ. )	0.03(max. )	0.02(max. )
	Range ≤ 2mH2O	0.025(typ. )	0.05(max. )	0.02(max. )
Transmitting	2-wire		3-wire	3-wire
Power supply	15~30VDC(Intrinsic safe version is supplied through safe barrier)		15~28VDC	15~28VDC
Output signal	4~20mADC		0~10/20mADC	0/1~5/10VDC
Load(Ω )	< (U-15)/0.02A		< ( U-15)/0.02A	> 5k
Material contacting with media	MPM416W	Housing: stainless steel 1Cr18Ni9Ti		O-ring: Viton
		Diaphragm: stainless steel 316L		Rubber casing: NBR
		Cable: Φ 7.2mm PVC/Polyurethane cable with vented tube
	MPM416WK	Stainless steel 1Cr18Ni9Ti, red copper, Viton O-ring
	MPM416WRK	Stainless steel 1Cr18Ni9Ti
Operation temp.	-10º C~80º C, Intrinsic safe version: -10~70 º C
Storage temp.	-40 º C~100 º C
Protection	IP68(sensor part), IP65(wiring part)
Ex-proof class	ExiaIICT6

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
