| Prod Model: |
H-CT005-8080D |
| Model: |
H-CT005-8080d |
| Current Ratio: |
400A/5A |
| Rate Primary Current: |
400A |
| Max Primary Current: |
480A AC |
| Turns Ratio: |
80:1 |
| DC Resistance: |
1.5ohms +/-20% at 20 |
| Frequency: |
50/60Hz |
| Secondary Current: |
5A |
| Internal Dimension: |
80*80mm |
| Certification Approved: |
RoHS, Ce |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Three |
Product Description

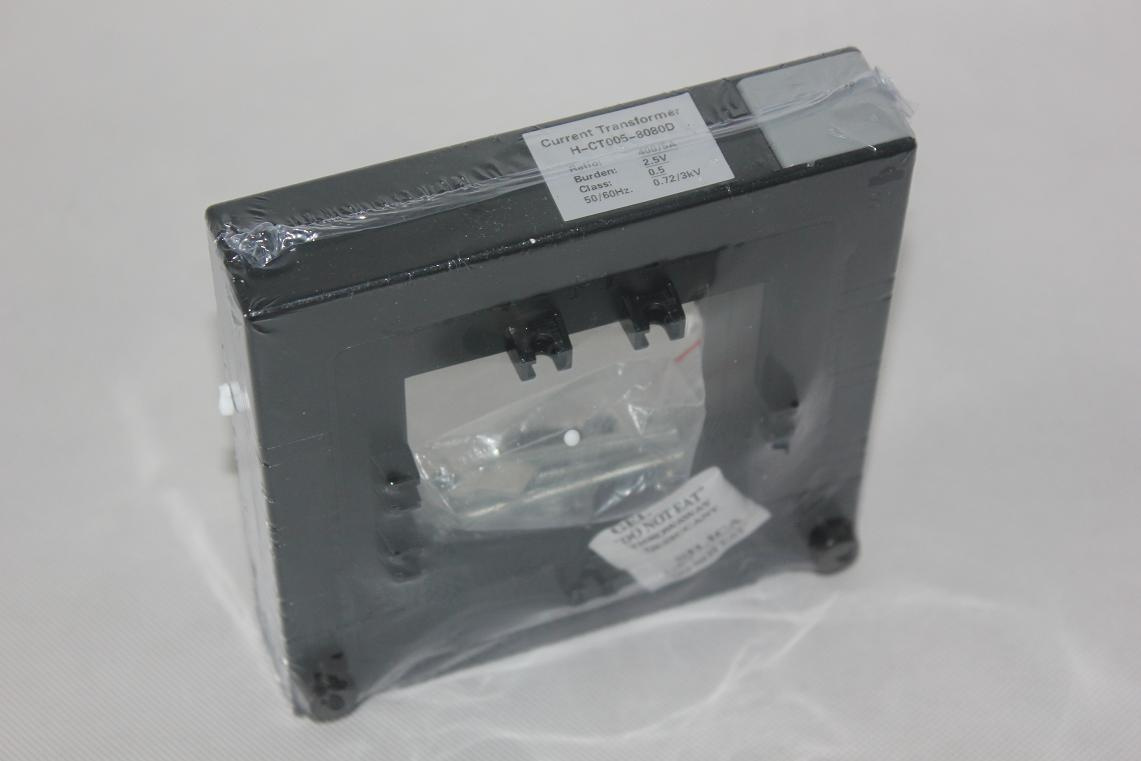

The H-CT005 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.
1, Electrical Specifications
1), Rated Primary Current(AMP. ) 50/60Hz: 400nom(0.01~480A max)
2), Turn ratio: Np: Ns=80: 1
3), Current Ratio: 400A/5A
4), D. C. Resistance at 20 º C: 1.5Ω MAX
5), Accuracy @RL=2.5VA: 0.5%
6), Phase error at rated current range: ≤ 0.5°
7), Operating Temperature Range: -40~70º C
8), Storage Temperature Range: -45~85º C
9), Dielectric Withstanding Voltage(Hi-pot): 3.5KV/1mA/1min
10), Impulse Withstand Voltage: 5KV Peak
11), Insulation Resistance: DC500V/100MΩ Min
2, Applications.
A, Portable/Curret instruments.
B, Sub-metering.
C, Monitor Motor Loads
3, Feature
A, Small size.
B, Low cost
C, High secondary turns.
D, Secure locking hings
E, Full RoHS compliant
F, Mounting easy.
4, Package(with carton)
1), 1piece per one small box(dimension(L*D*H): 16.6*16.6*7.5cm)
2), 60pieces per biggest box(dimension(L*D*H): 36*30*39cm)
3), Gross weight of biggest box around 17Kg.
Model
| Primay current | Seconadary current | Load resistance | Accuracy | Diameter |
H-CT005-8080D
| 400A | 5A | 2.5VA | 0.5Class | 80mm |
H-CT005-8080D
| 1000A | 5A/1A | 7.5VA/10VA | 0.5/1.0Class | 80mm |
H-CT005-8080D
| 1200A | 5A/1A | 7.5VA/10VA | 0.5/1.0Class | 80mm |
