Soft PCB Circuit Polyester (PET) Material Double Sided Board
Price: |
US $ 1.99/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
BIC-561-V5.61 |
Board Thick: |
1.6mm |
Surface Finish: |
Immersion Gold |
Out Layer Copper: |
35um (1 Oz) |
Soldermask Color: |
Green,Taoyo ,Lpsm, Psr-2000gt600d |
Silkscreen Color: |
White,Taiyo, Ijr-4000 MW300 |
Mininum Trace (Mil): |
7 Mil |
Minimum Gap(Mil): |
4.9 Mil |
RoHS Required: |
Yes |
Warpage: |
0.25% |
Function: |
100% Pass Electrical Test |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy |
Flame Retardant Properties: |
V0 |
Product Description
Company ProfileYou're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.
(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB
(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)
(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base
(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor
(5)Polyimide material (Flexible PCB)![](/proimages/44f3j00OzREvubMYtoe/soft-pcb-circuit-polyester-pet-material-double-sided-board.jpg)

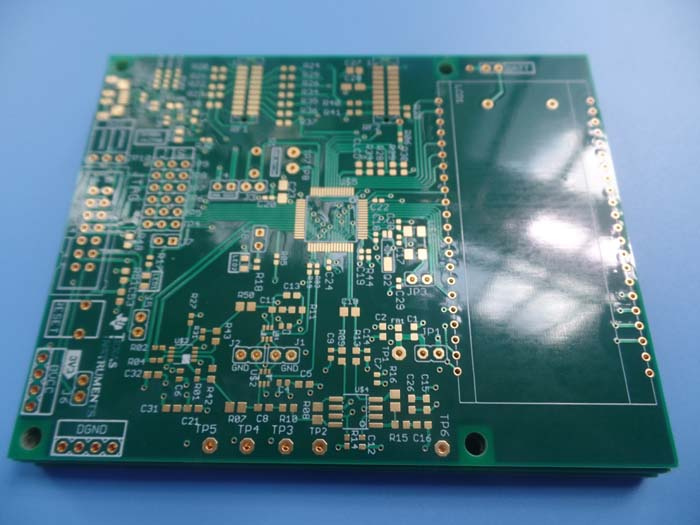

Printed Circuit Board
![](/proimages/44f3j00NgfTCPkhaQoe/soft-pcb-circuit-polyester-pet-material-double-sided-board.jpg)

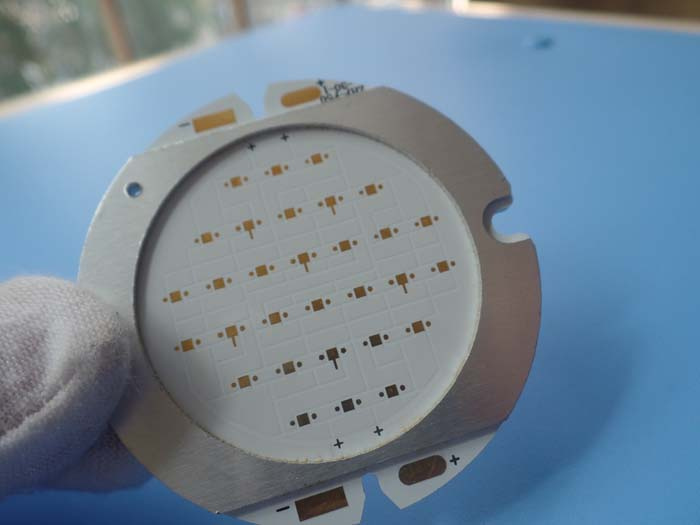

Aluminum PCB
![](/proimages/44f3j00nuYEeVodCtqM/soft-pcb-circuit-polyester-pet-material-double-sided-board.jpg)
High Frequency PCB
![](/proimages/44f3j00ngYTvkcdZEbM/soft-pcb-circuit-polyester-pet-material-double-sided-board.jpg)

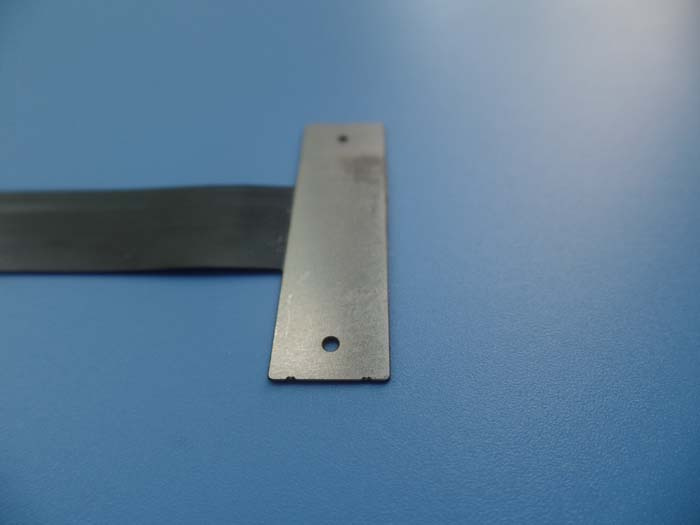

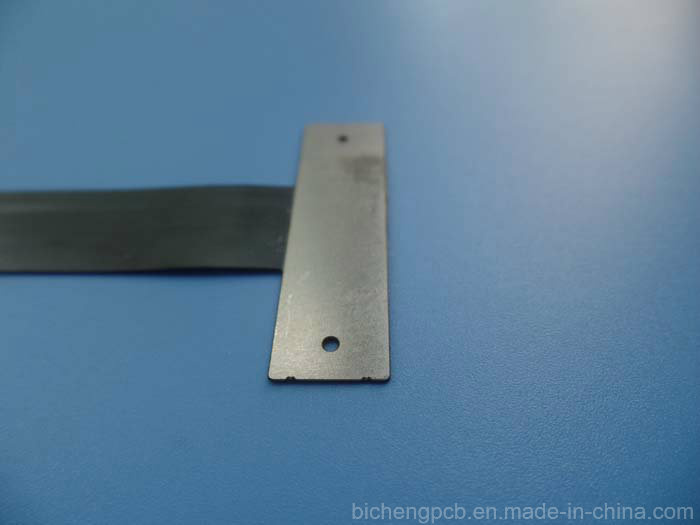

Flex PCB
![](/proimages/44f3j00OzGEBvbFZacC/soft-pcb-circuit-polyester-pet-material-double-sided-board.jpg)
Bicheng Flexible Printed Circuit CapabilityNo. | Specifications | Capabilities |
1 | Board Type | Single layer, Doulbe layer, Multilayer, Rigid-Flex |
2 | Base Material | PI, PET |
3 | Copper Weight | 0.5oz, 1oz, 2oz |
4 | LED Maximum Size | 250 x 5000mm |
5 | General Maximum Size | 250 x 2000mm |
6 | Board Thickness | 0.03mm-3.0mm |
7 | Thickness Tolerance | ±0.03mm |
8 | Mininum Drill Hole | 0.05mm |
9 | Maximum Drill Hole | 6.5mm |
10 | Tolerance of Drill Hole | ±0.025mm |
11 | Thickness of Hole Wall | >= 8 um |
12 | Minimum Track/Gap of Single Layer Board | 0.025/0.03mm |
13 | Minimum Track/Gap of Double Layer and Multilayer Board | 0.03/0.040mm |
14 | Etching Tolerance | ±0.02mm |
15 | Minimum Width of Silk Legend | >= 0.125mm |
16 | Minimum Heigh of Silk Legend | >=0.75mm |
17 | Distance from Legend to Pad | >=0.15mm |
18 | Distance from Opening Solder Mask of Drill Coverlay to Track | >=0.03mm |
19 | Distance from Opening Solder Mask of Punching Coverlay to Track | >=0.03mm |
20 | Thickness of Immersion Nickel | 100-300u" |
21 | Thickness of Immersion Gold | 1-3u" |
22 | Thicnkess of Immersion Tin | 150-400u" |
23 | Minimum Electrical Testing Pad | 0.2mm |
24 | Minimum Tolerance of Outline (Normal Steel Mould Punch) | ±0.1mm |
25 | Minimum Tolerance of Outline (Precision Steel Mould Punch) | ±0.05mm |
26 | Mininum Radius of Bevel Angle (Outline) | 0.2mm |
27 | Stiffner Material | PI, FR-4, 3M Adhesive, PET, Steel Sheet |
28 | RoHs | Yes |
29 | Solder Mask Colour | Yellow, White, Black, Green |
