Prod Model: |
QZP-S8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measure Range: |
-100-0kpa,0-5kpa,0-500kpa,0-100MPa |
Accuracy: |
±0.2%Fs ±0.1%Fs |
Output Signal: |
4~20mA;0~10V, 1~5V, 0~5V, 0~20mA |
Power Supply: |
12~36(Standard 24VDC) |
Housing Material: |
Stainless Steel |
Material Of Diaphragm: |
316L Stainless Steel |
Application: |
Measuring Gas and Liquid |
Measuring Medium: |
Gas and Liquid |
Product Description

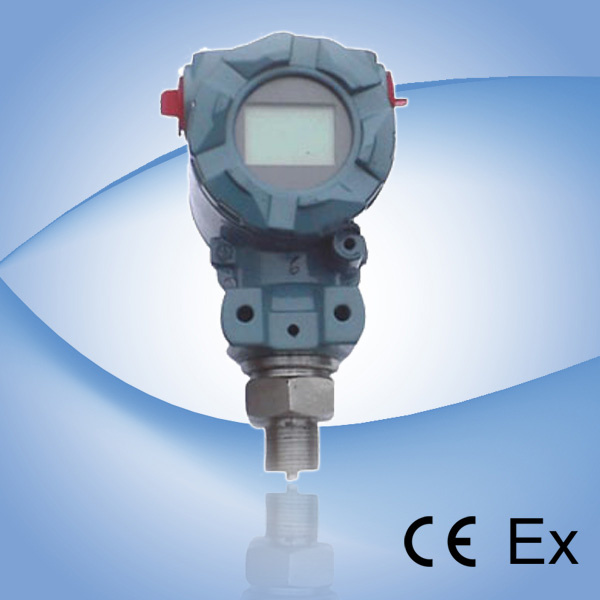

Smart Pressure Transmitters with Indicator and Hart Protocal (QZP-S8) with Measuring Range (-100~0KPa, 0~5KPa.0~500KPa.0~100 MPa)
QZP-S8 smart pressure transmitters are consisting of 316L isolation membrane pressure transmitter, high-powered MPU, integrated circuit and high-stability constant current. It can correct the linearity and compensate temperature drift. Also can adjust the data of transmitter by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication. With characteristics of high precision, good stability, good reliability and easy handle.
Model: QZP-S8 Smart Pressure Transmitter
Range: -100~0KPa, 0~5KPa.0~500KPa.0~100 MPa
Accuracy:±0.075%FS, ±0.1%FS,±0.2%FS
Feature:
With indicator Smart type pressure transmitters.
Can choose with HART AGREEMENT.
Have the characteristics of high precision, good stability, long working life and high reliability.
Small in size, light in weight. easy to installation.
LCD and LED indicator can be chose by customers.
Suitable for the higher accuracy measuring and control of industrial, oil, water supply etc.

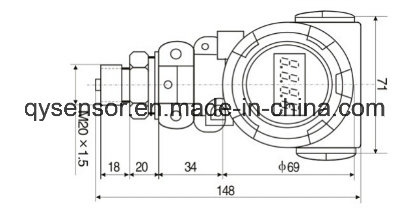

Dimensions: (unit: mm)
![](/proimages/44f3j00nQlTcqMCnHbe/smart-pressure-transmitters-with-indicator-and-hart-protocal-qzp-s8-with-measuring-range-100~0kpa-0~5kpa-0~500kpa-0~100-mpa-.jpg)
Technical Specifications:
Measuring media | gases or liquids which are compatible to 316L stainless steel |
Measuring range | -100~0KPa, 0~5KPa.0~500KPa.0~100MPa |
Pressure type | Gauge(G),Absolute(A),Sealed(S) |
Signal output | Analog | transmitter, mA (2 wires) | 4~20mA |
transmitter, Vdc (3 wires) | 0~10V, 1~5V,0~5V,0~20mA |
Digital | Can bi-dinrectionally communication in accordance with HART AGREENMENT |
Combined accuracy | %FS | ±0.075, ±0.1(standard), ±0.2 |
Long stability | ≤±0.2%FS/year |
Power supply | Vdc | 12~36, (24V standard) |
Compensated temp. | ºC | -10~+60 |
Operating temp. | ºC | -30~+85 |
Temperature coefficient of ZERO | %FS/10ºC | ≤±0.1 |
Temperature coefficient of SPAN | %FS/10ºC | ≤±0.1 |
Insulation resistance | MΩ | >500 @ 100Vdc |
Display | LCD or LED |
Electrical connection | DIN43650,aviation connector,directly lead(selectable) |
Material | stainless steel |
Pressure connection | G1/4, G1/2, M20x1.5,M14x1.5,M12x1,(customized) |
Environment protection | IP | 65 |
Safe overload | %FS | 200 |

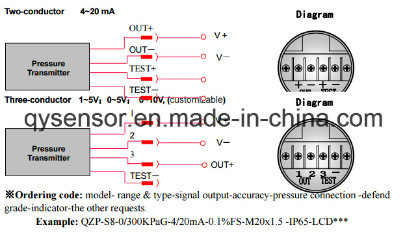

Electrical connection:
![](/proimages/44f3j00yahTkCMBAHov/smart-pressure-transmitters-with-indicator-and-hart-protocal-qzp-s8-with-measuring-range-100~0kpa-0~5kpa-0~500kpa-0~100-mpa-.jpg)
